Warning Chime or Voice Alert Wiring Circuit

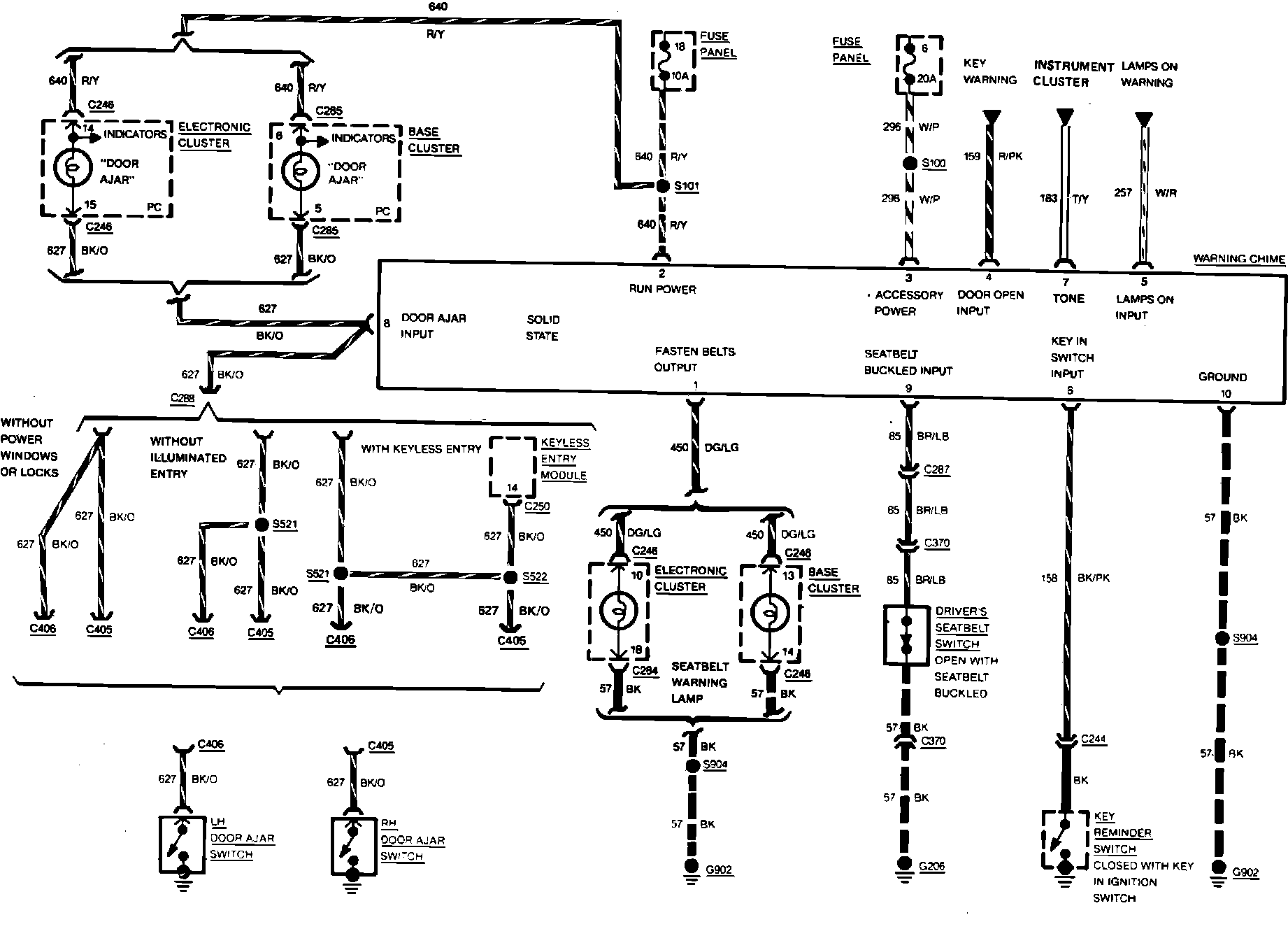

Fig. 82 Warning Chime Wiring Circuit. V6-232 & V8-302 Engines:
