Home >> Mercury >> 1986 >> Cougar/XR7 V8-302 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heated Glass Element >> W/Electronic ATC

W/Electronic ATC

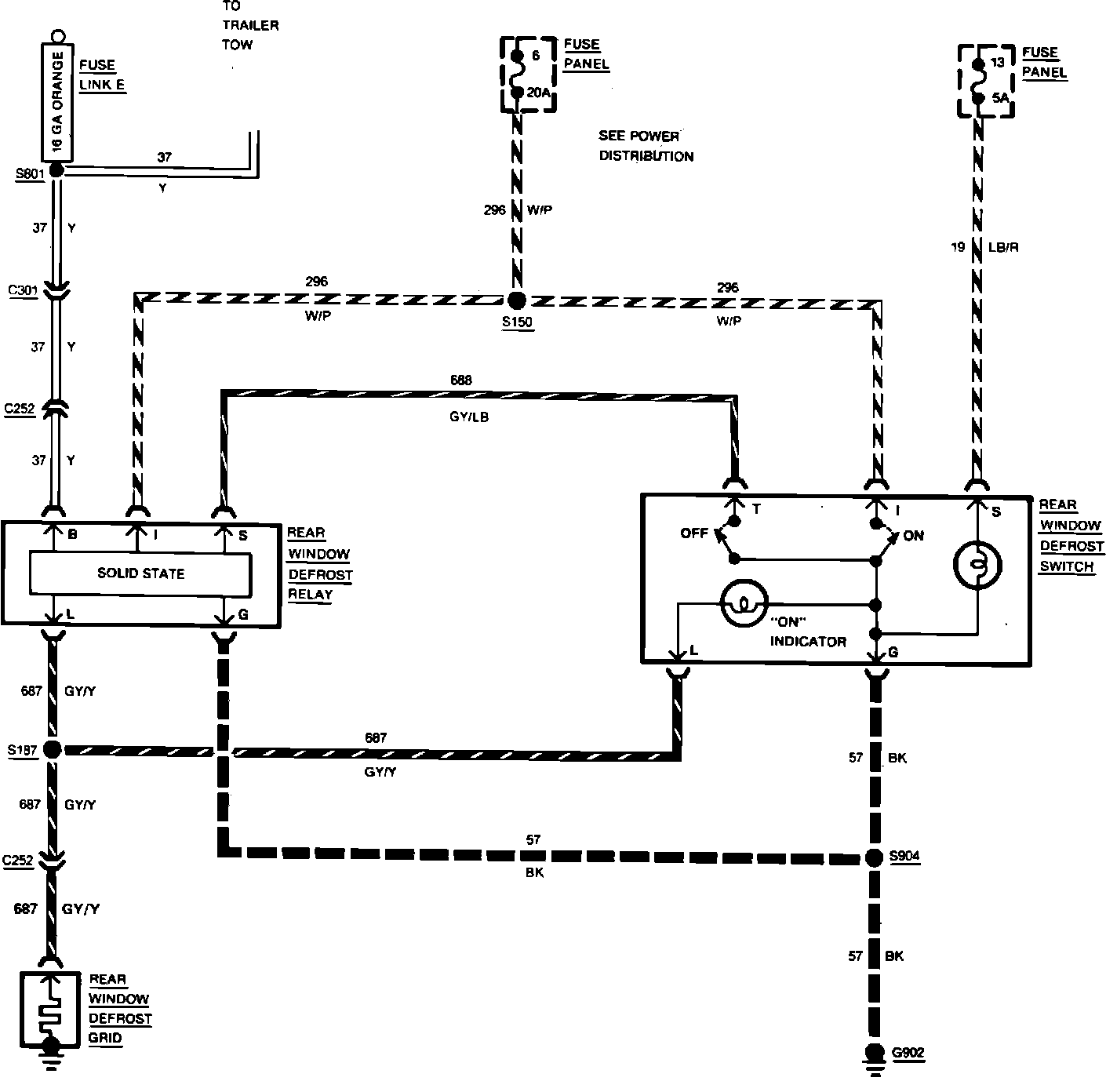

Fig. 74 Rear Window Defrost Wiring Circuit. W/Electronic ATC:
