Home >> Mercury >> 1986 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G1201

G1201

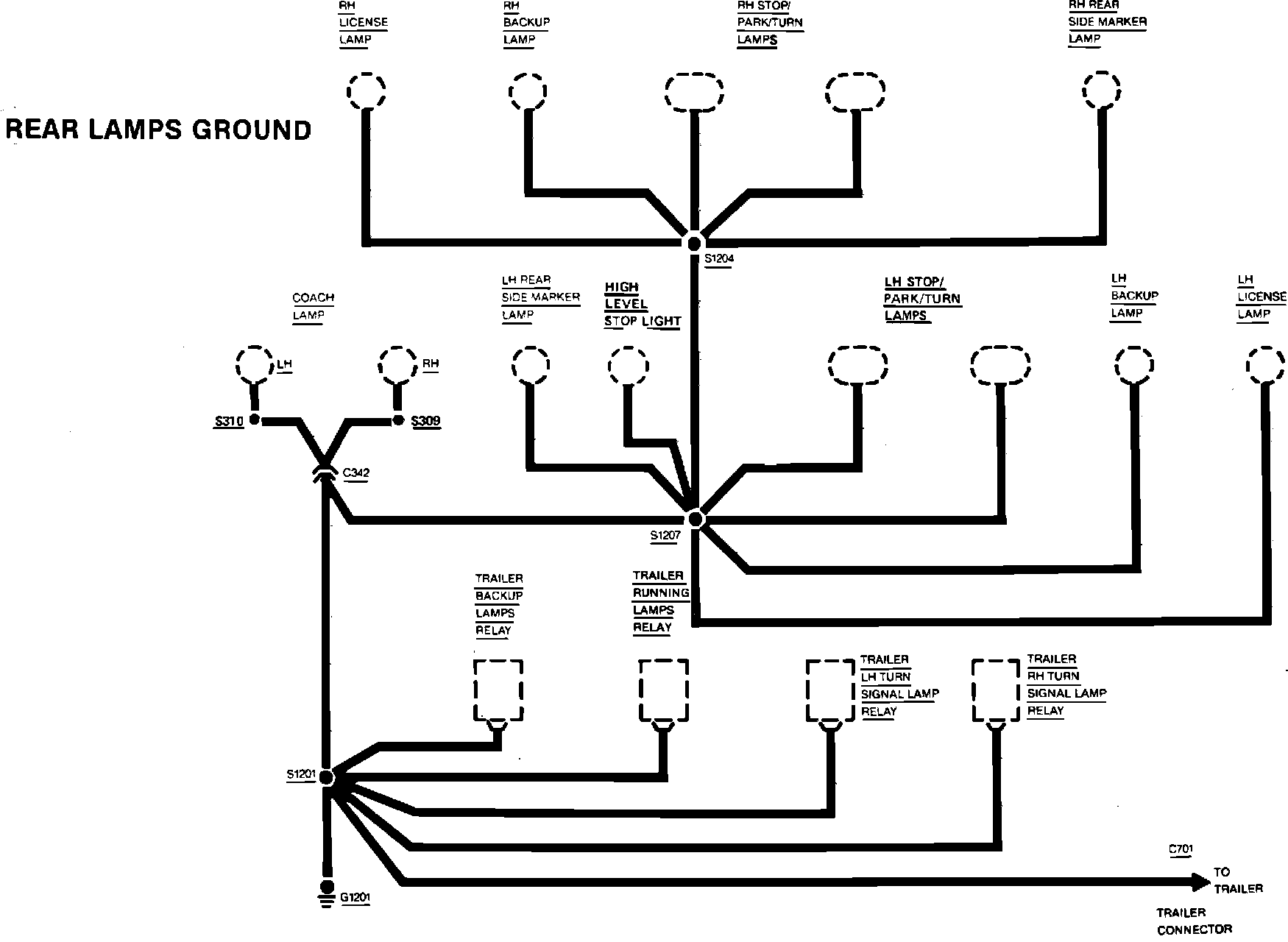

Fig. 37 Ground Distribution. G1201:
