Home >> Mercury >> 1986 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Wiper and Washer Systems >> Windshield Washer Switch >> Diagrams >> Electrical Diagrams >> With Intermittent Wipers

With Intermittent Wipers

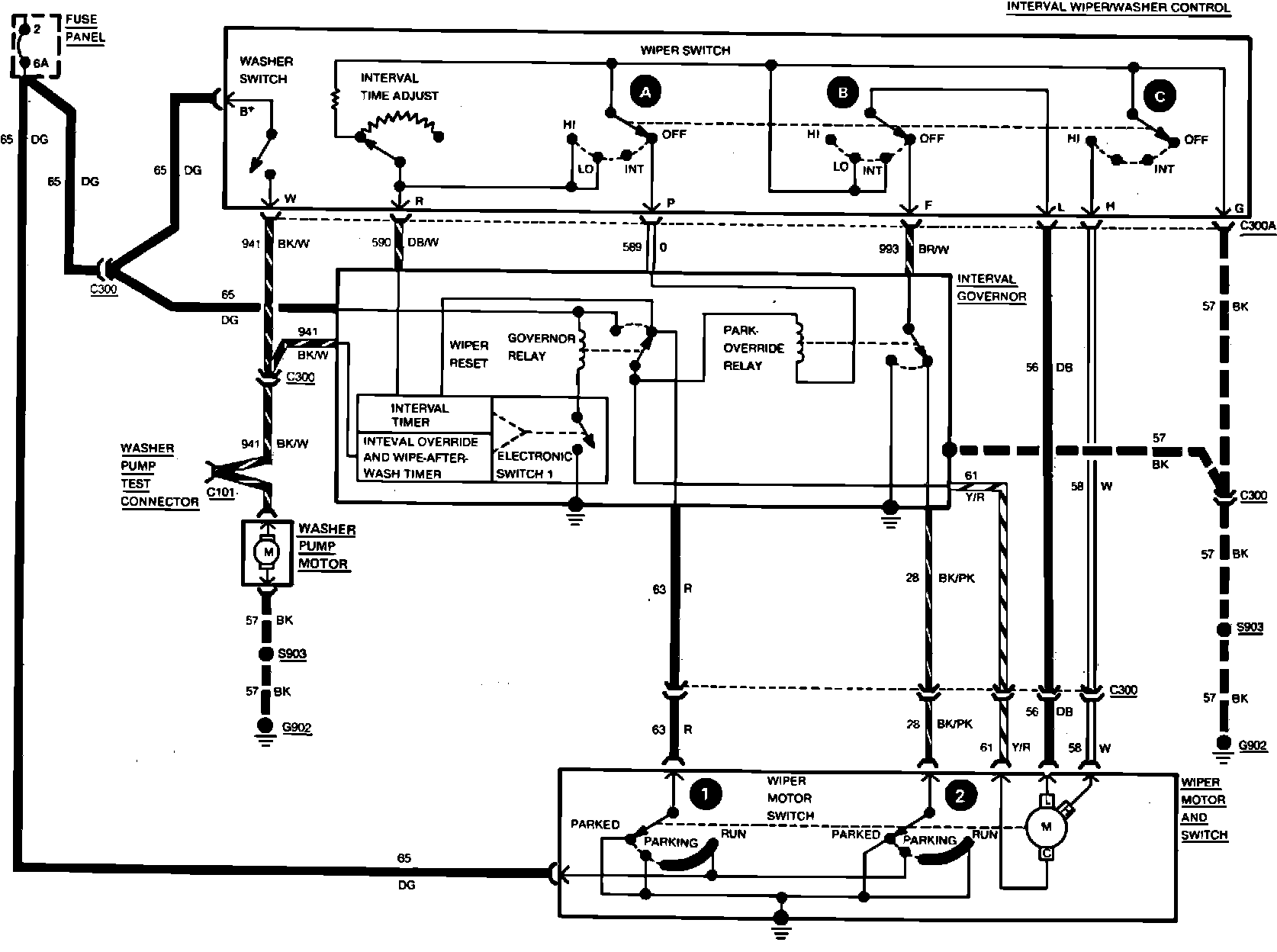

Fig. 84 Windshield Wiper/Washer Wiring Circuit. W/Interval:
