Tachometer: Testing and Inspection

Enter test mode by hoding GAUGES button in and turning ignition from OFF to RUN. Advance through tests by completing watch dog test or turning ignition OFF. A steady tone and eight bars lit on tachometer bar graph display indicates that the test is passed. No tone and 24 bars lit on tachometer bar graph display indicates a failed test. The test number is indicated by the number of bars lit on the multigauge.

TEST 1 - 3

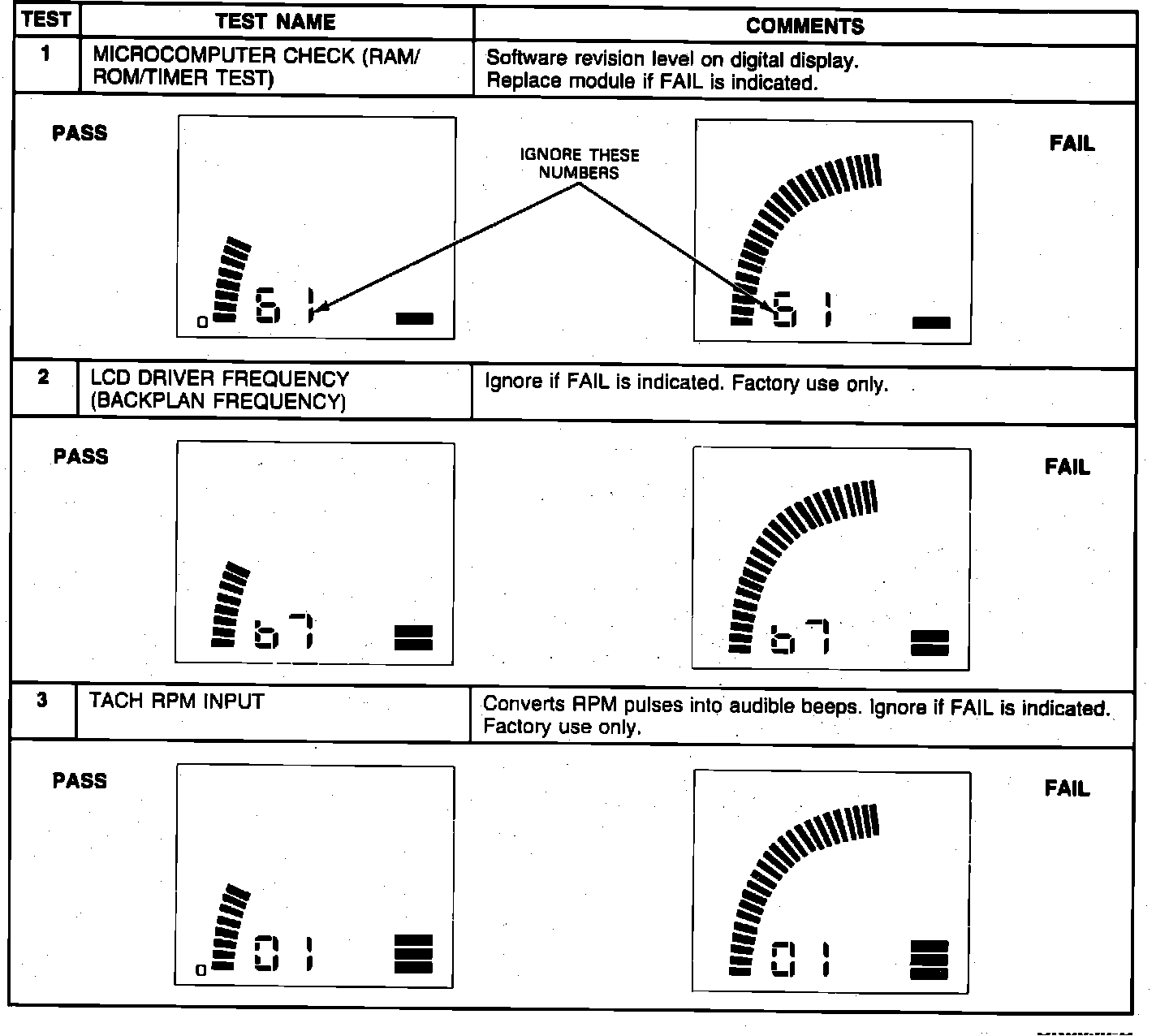

Tach/Multigauge Self-Test 1 - 3:

TEST 4

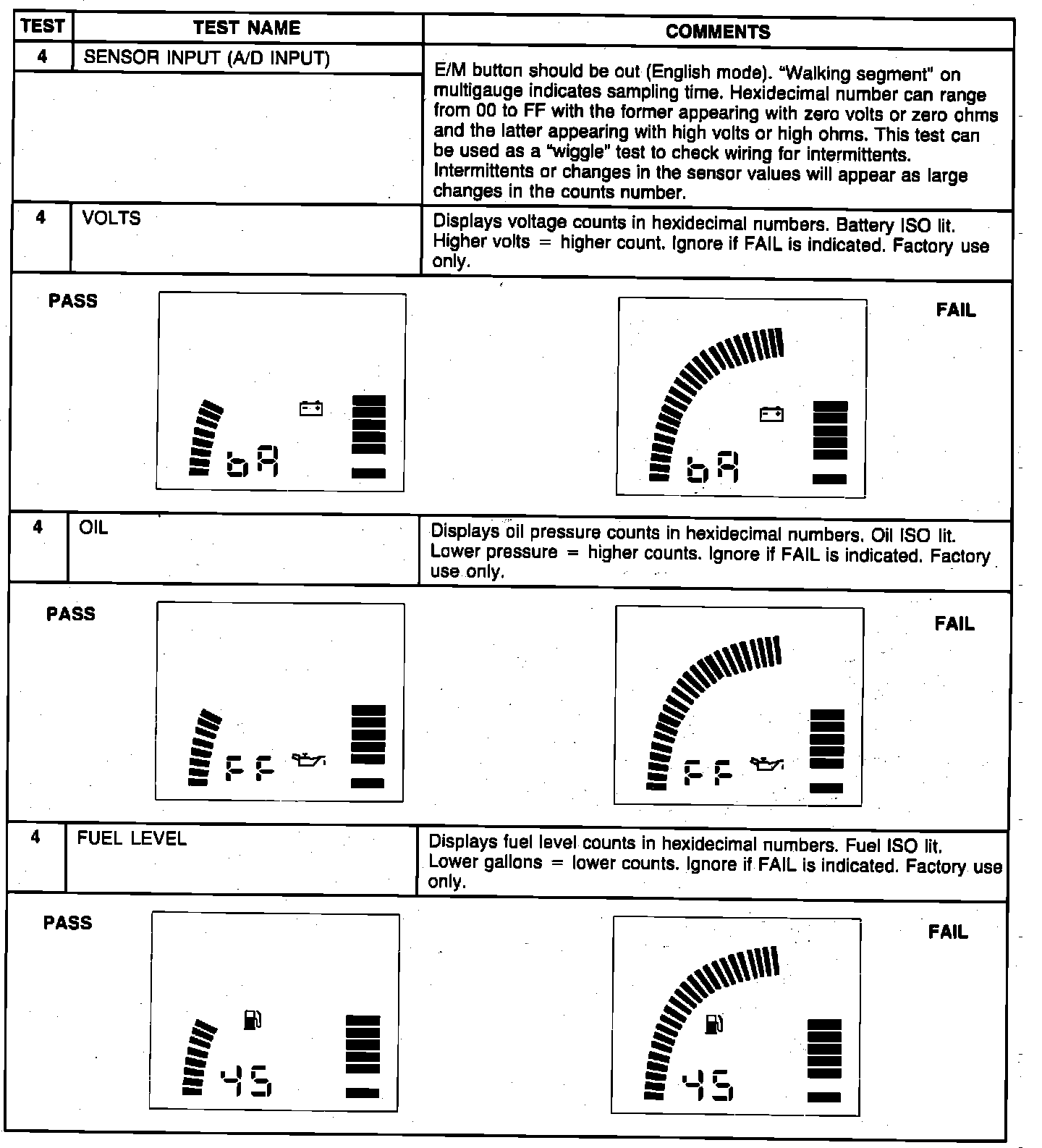

Tach/Multigauge Self-Test 4:

TEST 4 - 6

Tach/Multigauge Self-Test 4 - 6:

TEST 7 - 8

Tach/Multigauge Self-Test 7 - 8:
