Home >> Mercury >> 1986 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning

Heating and Air Conditioning

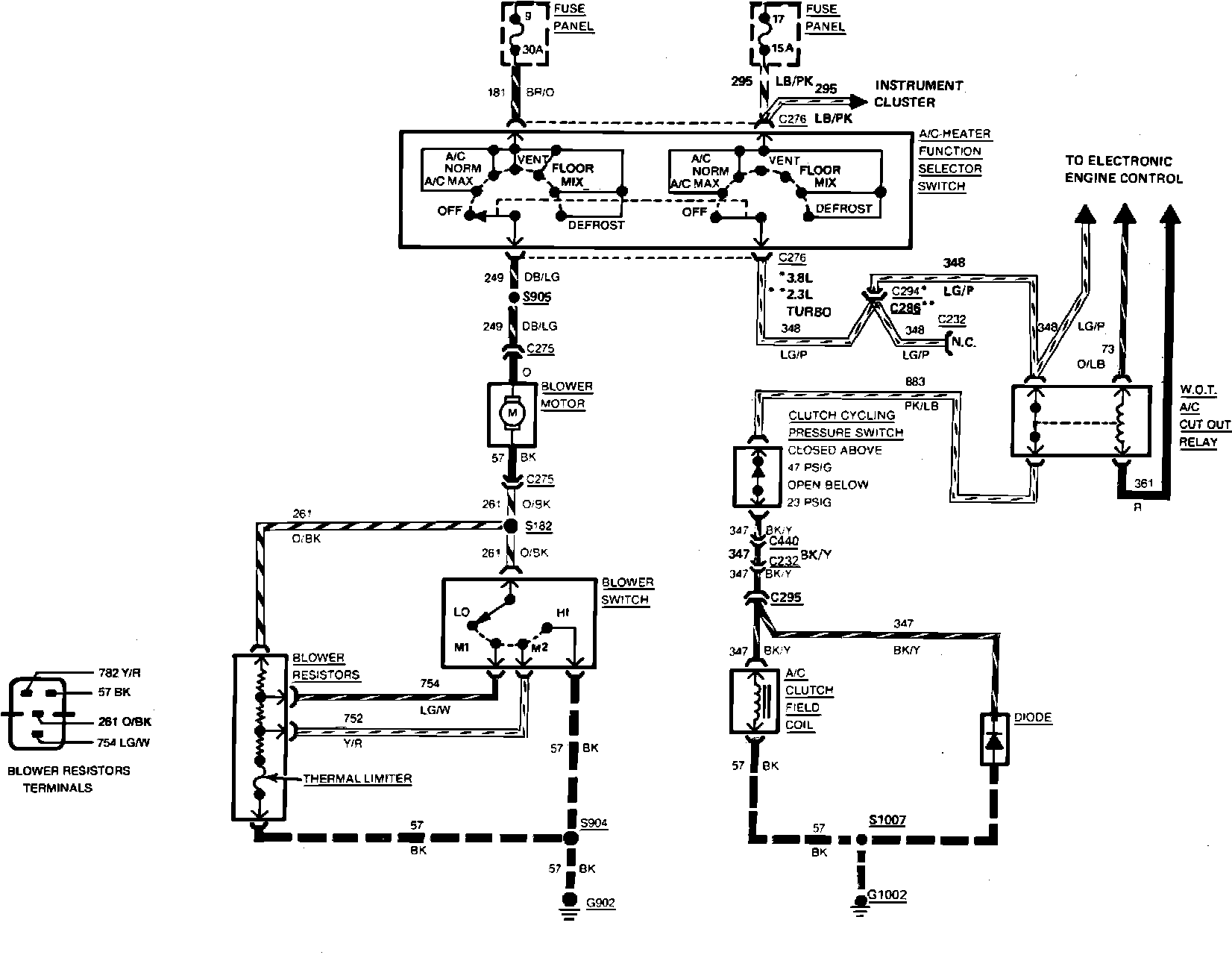

Fig. 56 Manual A/C-Heater Electrical Wiring Circuit. V6-232 W/EEC-IV:
