Home >> Mercury >> 1986 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Engine Lubrication >> Oil Level Warning Indicator >> Diagrams >> Electrical Diagrams >> Low Oil Warning Indicator Wiring Circuit

Low Oil Warning Indicator Wiring Circuit

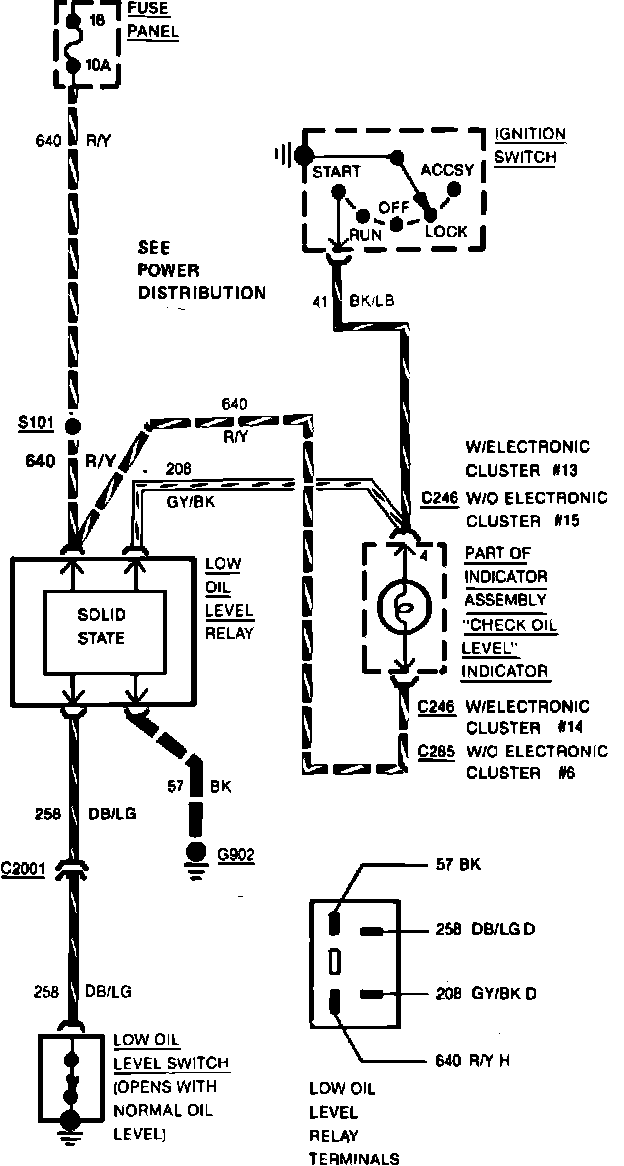

Fig. 52 Low Oil Level Warning Indicator Wiring Circuit. V6-232 & V8-302 Engines:
