Engine Mount: Service and Repair

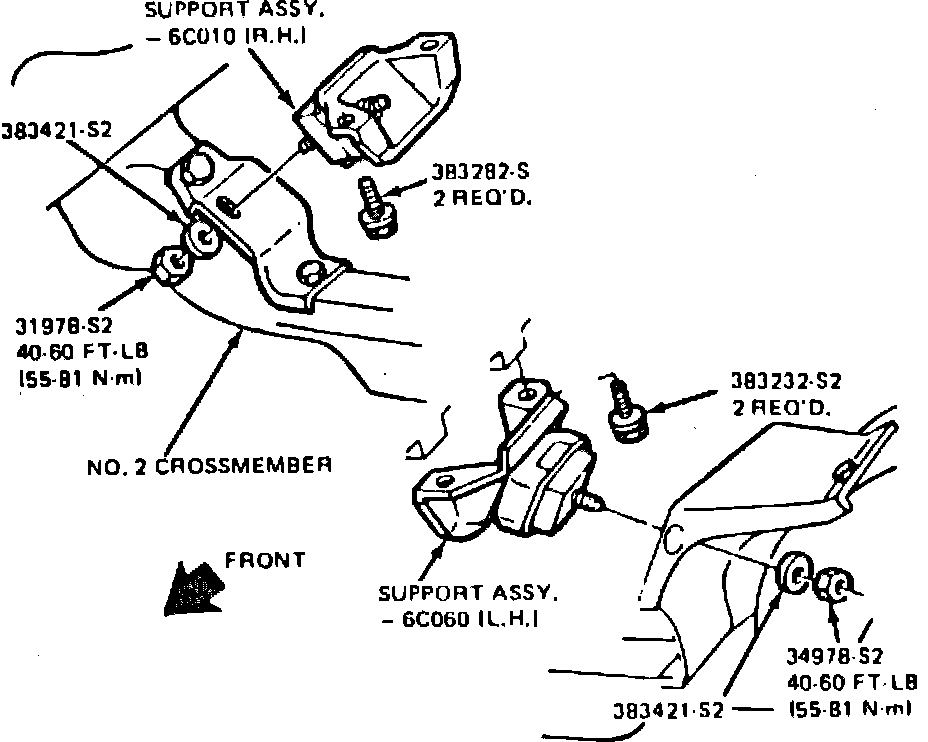

Fig. 1 Engine mounts:

Late 1985 and 1986-88 models, use viscous type engine mounts.
1. Remove fan shroud attaching screws, if necessary.
2. Remove nuts attaching insulators to lower bracket, Fig. 1.
3. Raise engine with a suitable jack and a block of wood placed under oil pan.
4. Remove insulator to engine block attaching bolts.
5. Remove insulator from vehicle.
6. Reverse procedure to install.
