Home >> Mercury >> 1986 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Power Distribution >> Power Distribution Fuse Details >> Fuse 18

Fuse 18

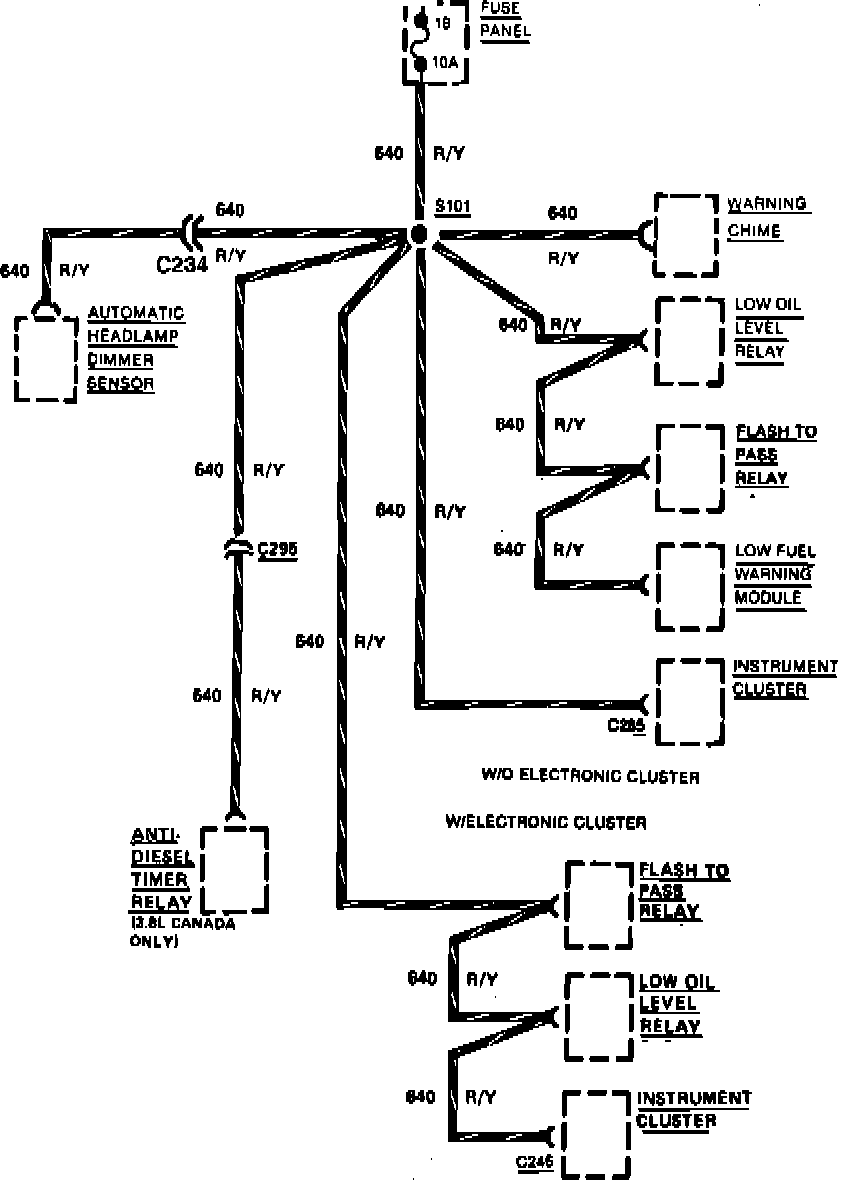

Fig. 63 Power Distribution Fuse Details. Fuse 18, V6-232 & V8-302 Engines:
