Less Electronic ATC & Cluster
Less Electronic ATC & Cluster

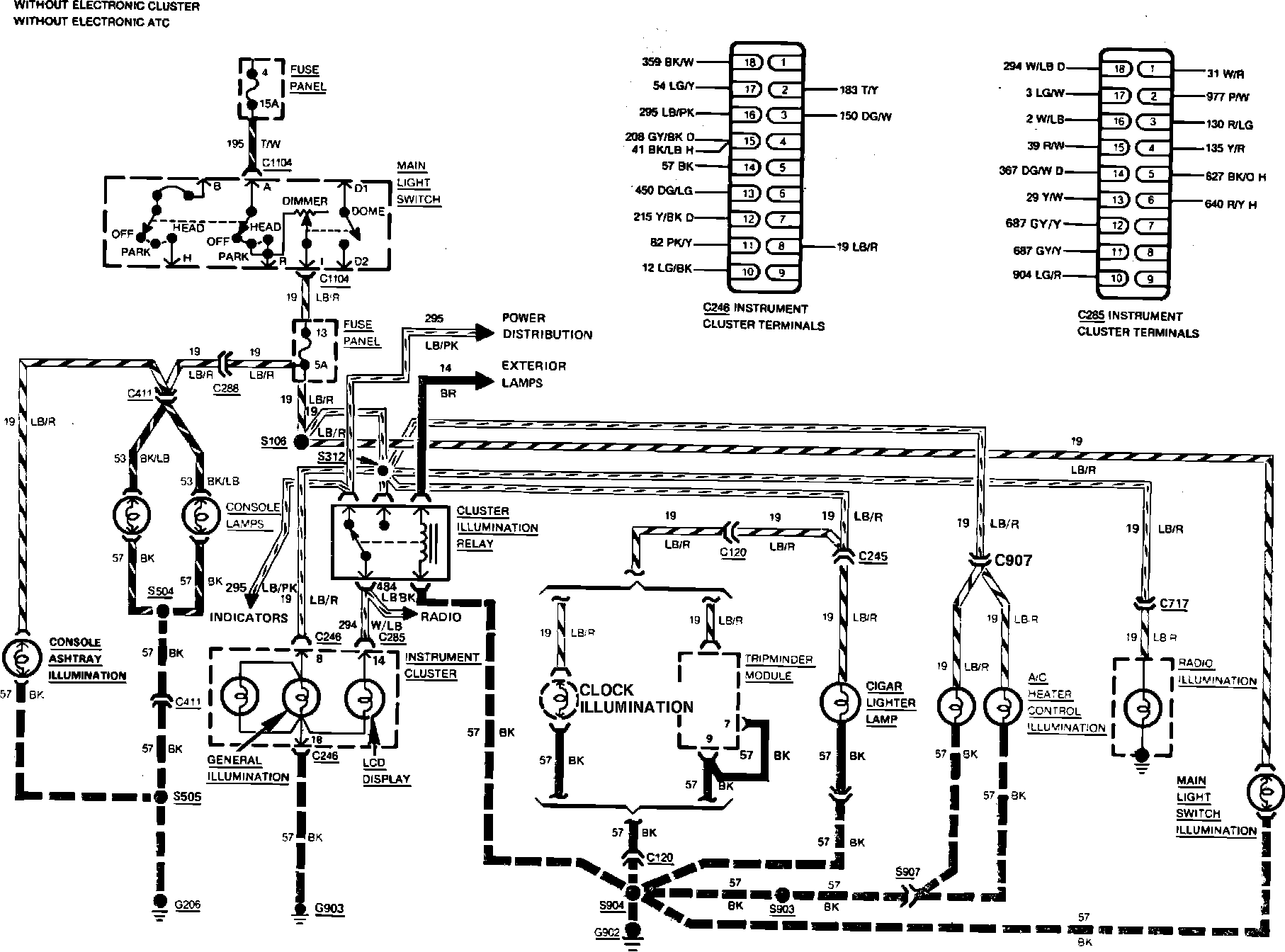

Fig. 15 Console Lamps & Instrument Illumination Wiring Circuit. V6-232 & V8-302 Engine Less Electronic ATC & Cluster:
