Home >> Mercury >> 1986 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Backup Lamp

Backup Lamp

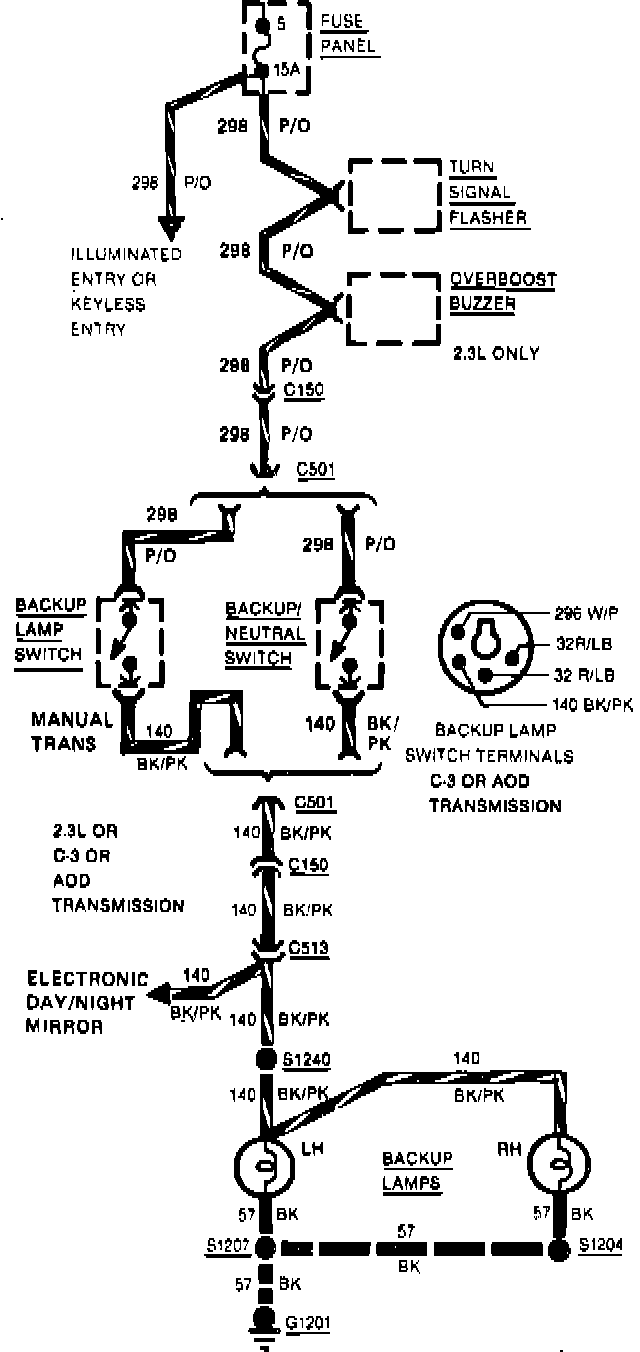

Fig. 5 Back-Up Lamp Wiring Circuit:
