Electronic Speed Indicator. Less Electronic Cluster
Electronic Speed Indicator. Less Electronic Cluster

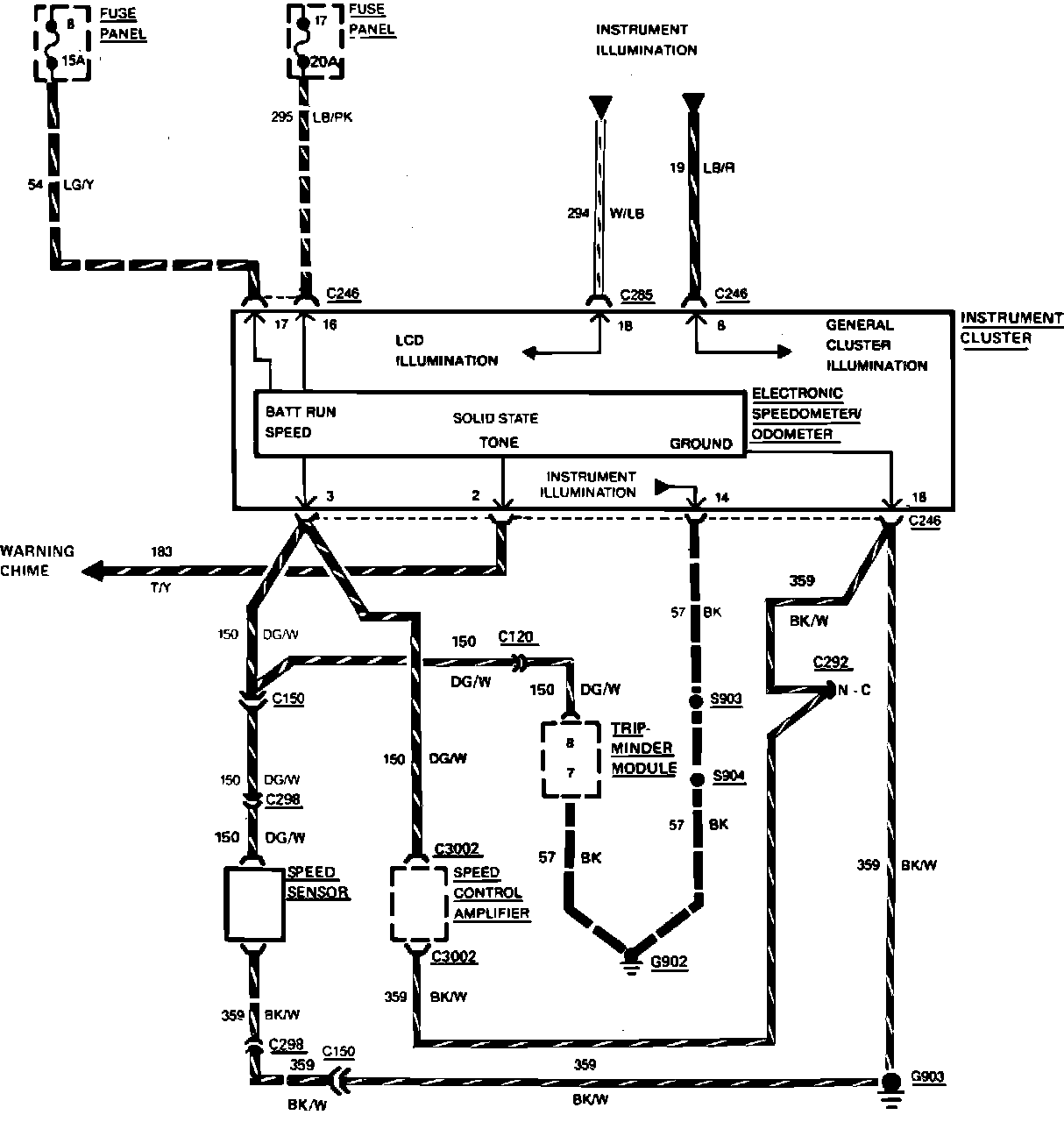

Fig. 28 Electronic Speed Indicator Wiring Circuit. V6-232 & V8-302 Engines Less Electronic Cluster:
