Home >> Mercury >> 1986 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heated Glass Element >> Less Electronic ATC

Less Electronic ATC

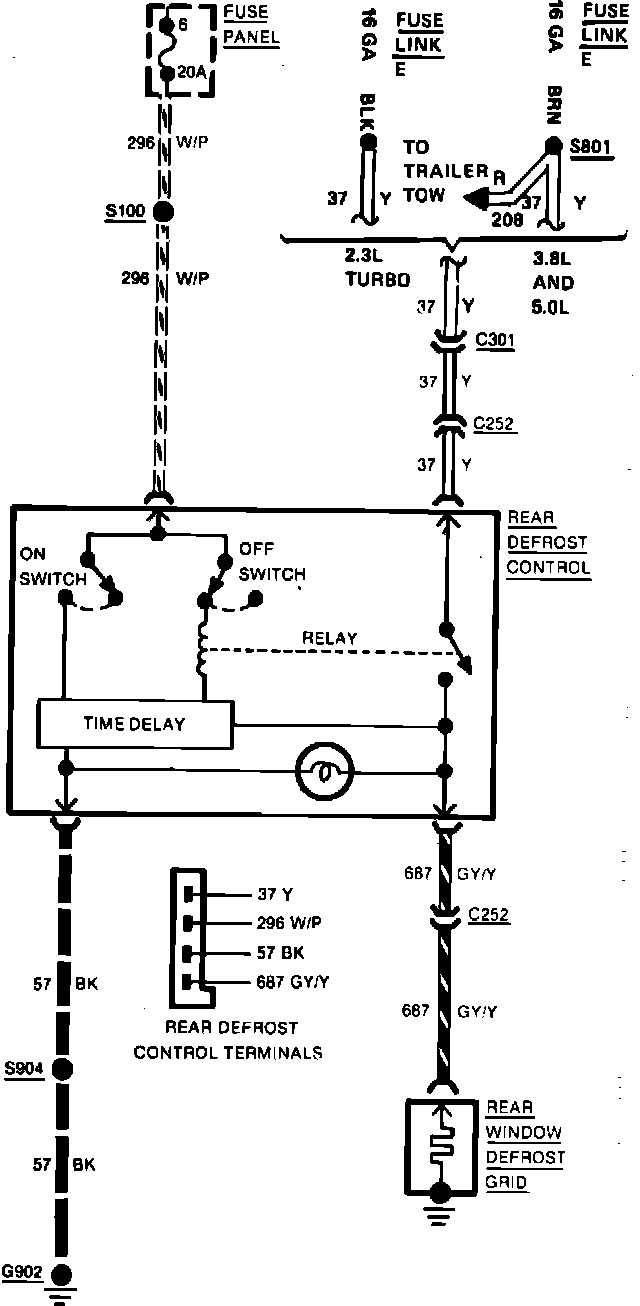

Fig. 75 Rear Window Defrost Wiring Circuit. Less Electronic ATC:
