Overboost Switch: Testing and Inspection

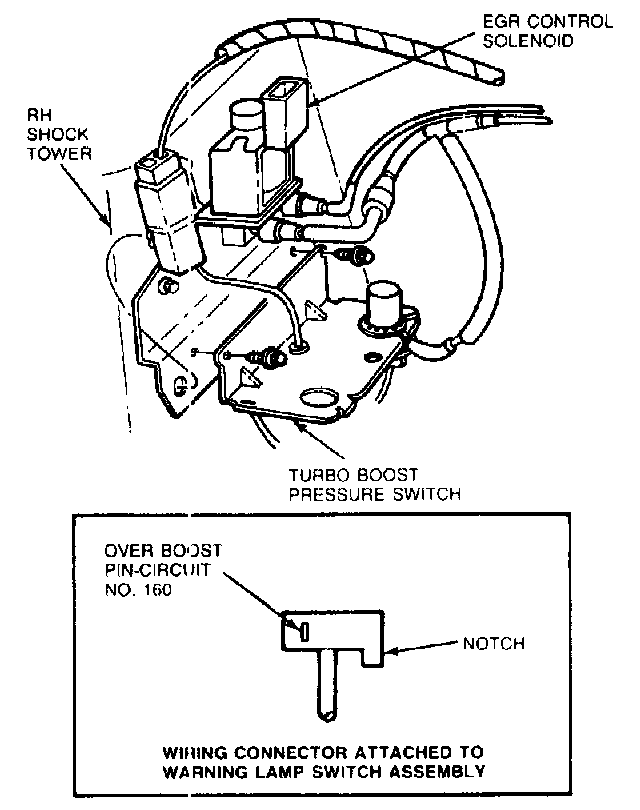

Disconnect the wiring harness connector from the warning lamp switch assembly. Using a test lamp or equivalent device, determine if the pin is connected to ground when pressure is applied as follows:


1. Overboost lamp switch check: The other pin on the connector, joining to Circuit 160, should be connected to ground when a pressure of 17.5 psi or greater is applied.
