Electrical Diagrams

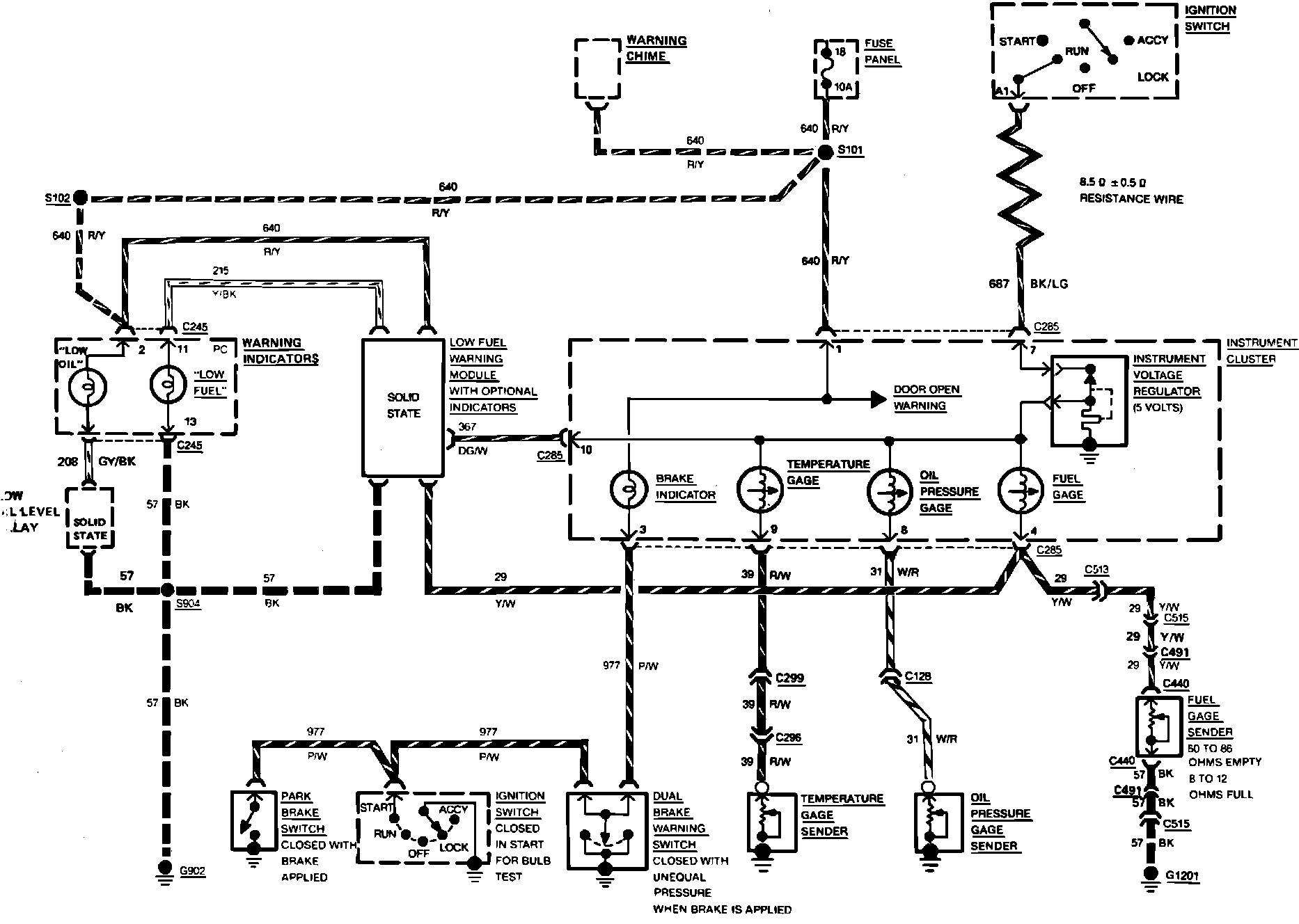

Fig. 8 Brake, Fuel, Low Fuel, Oil Pressure & Temperature Gauges Or Indicators Wiring Circuit. 4-140 Turbo Engine:
