Home >> Mercury >> 1986 >> Cougar/XR7 L4-140 2.3L SOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Instrument Panel Illumination >> With Electronic ATC

With Electronic ATC

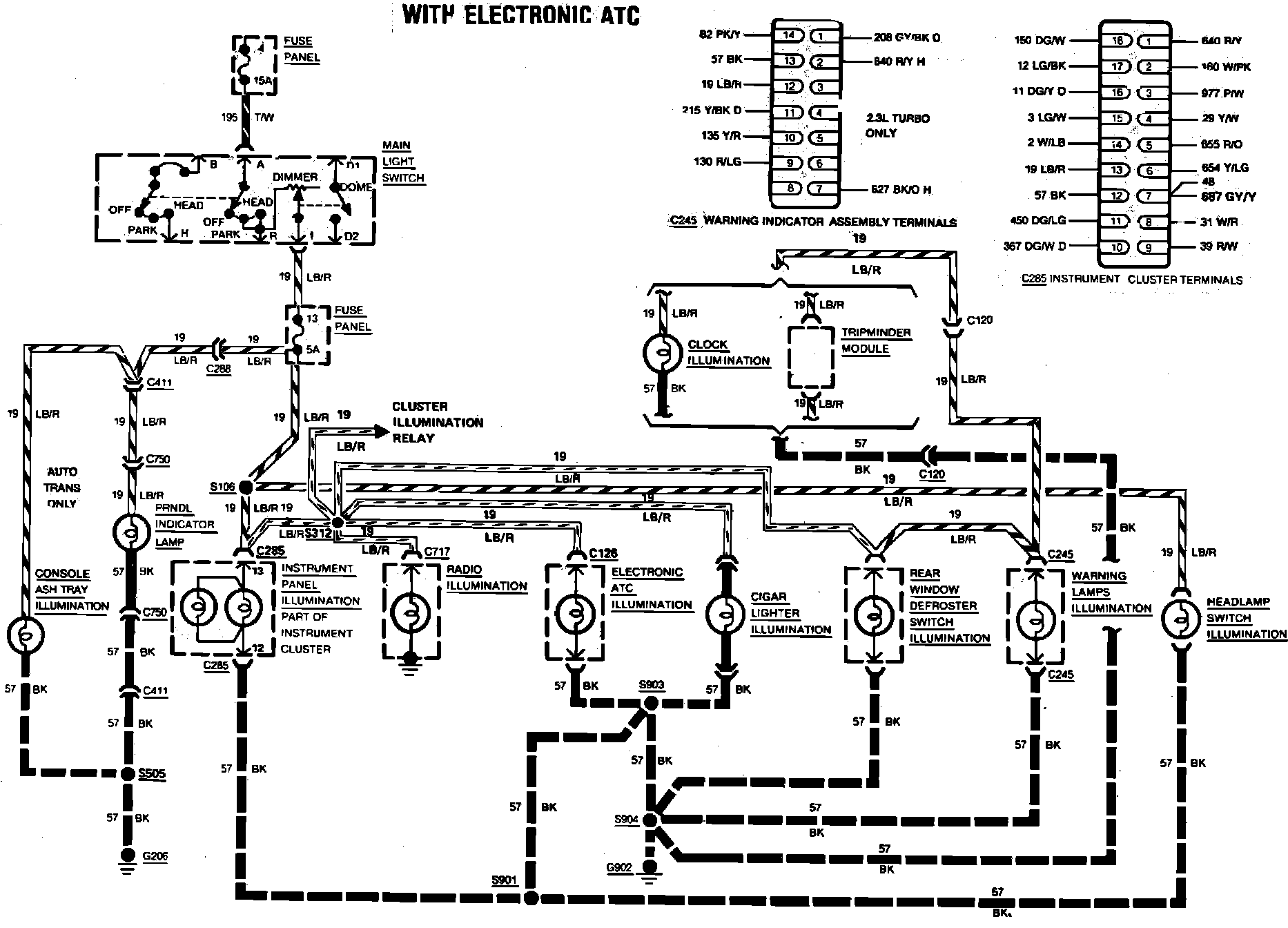

Fig. 47 Instrument Illumination & Transmission Indicator Lamp Wiring Circuit. 4-140 Turbo Engine W/Electronic ATC:
