Home >> Mercury >> 1986 >> Cougar/XR7 L4-140 2.3L SOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Fog/Driving Lamp

Fog/Driving Lamp

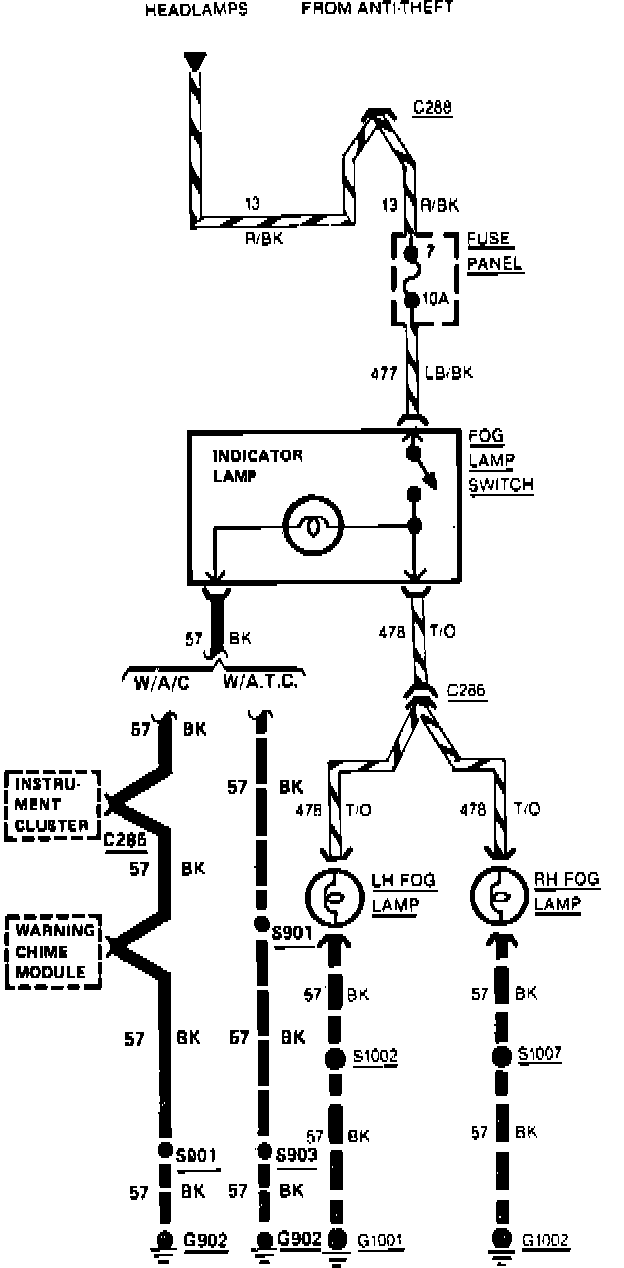

Fig. 33 Fog Lamp Wiring Circuit. 4-140 Turbo Engine:
