Home >> Mercury >> 1986 >> Cougar/XR7 L4-140 2.3L SOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Instrument Cluster >> Electronic Cluster Multiple Gauge Circuit >> Part 1 of 2

Part 1 of 2

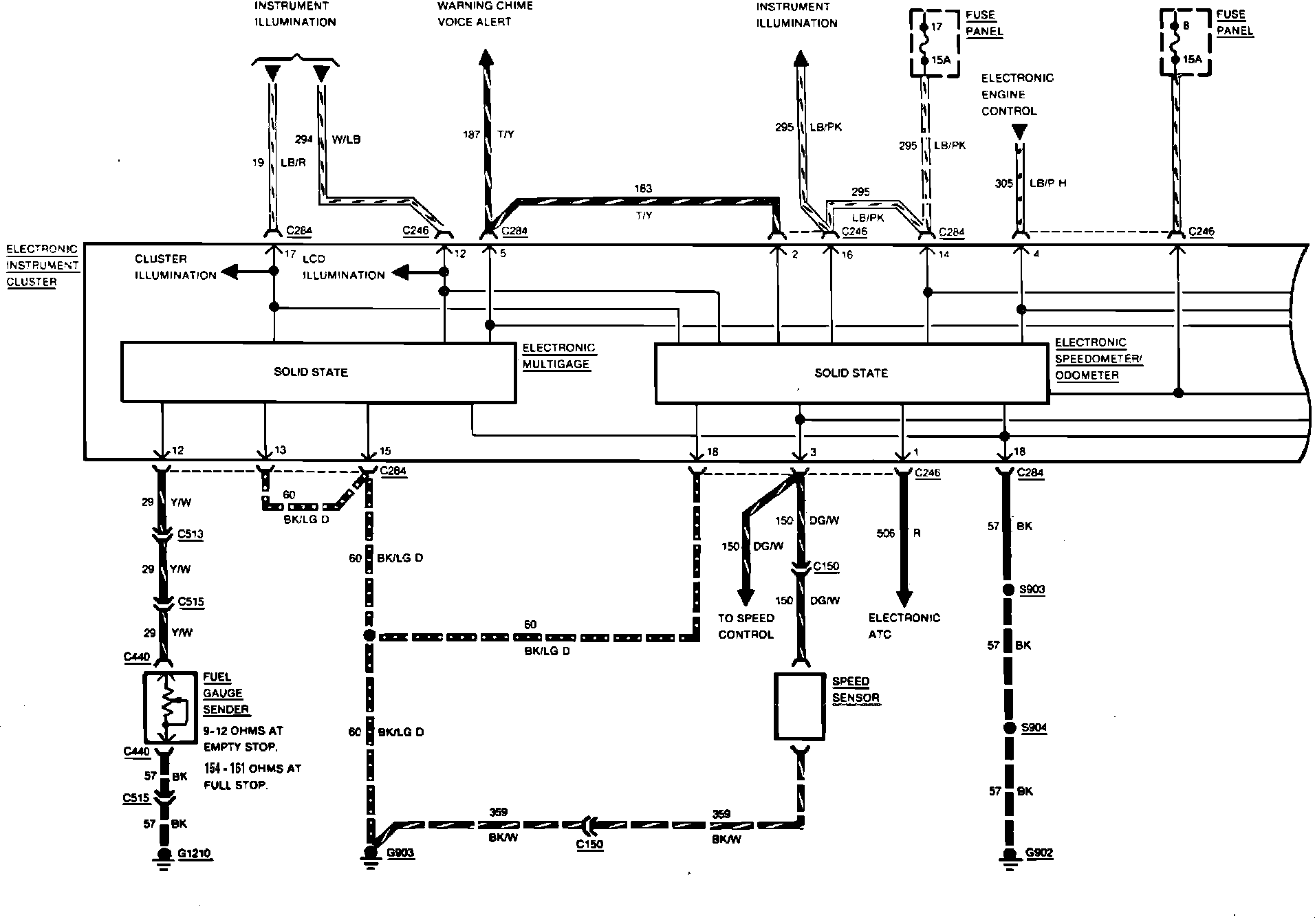

Electronic Fuel Gauge & Speed Indicator Wiring Circuit (Part 1 Of 2):
