Pinpoint Tests

Fig. 9 Quick test chart A, check vehicle load. 1985---87:

1. Test title---Vehicle Load (1985---87). Test and figure No.---Quick test A, Fig. 9.

Fig. 10 Quick test chart B, power monitor lamp. 1985---87:

2. Test title---Power Monitor Lamp (1985---87). Test and figure No.---Quick test B, Fig. 10.

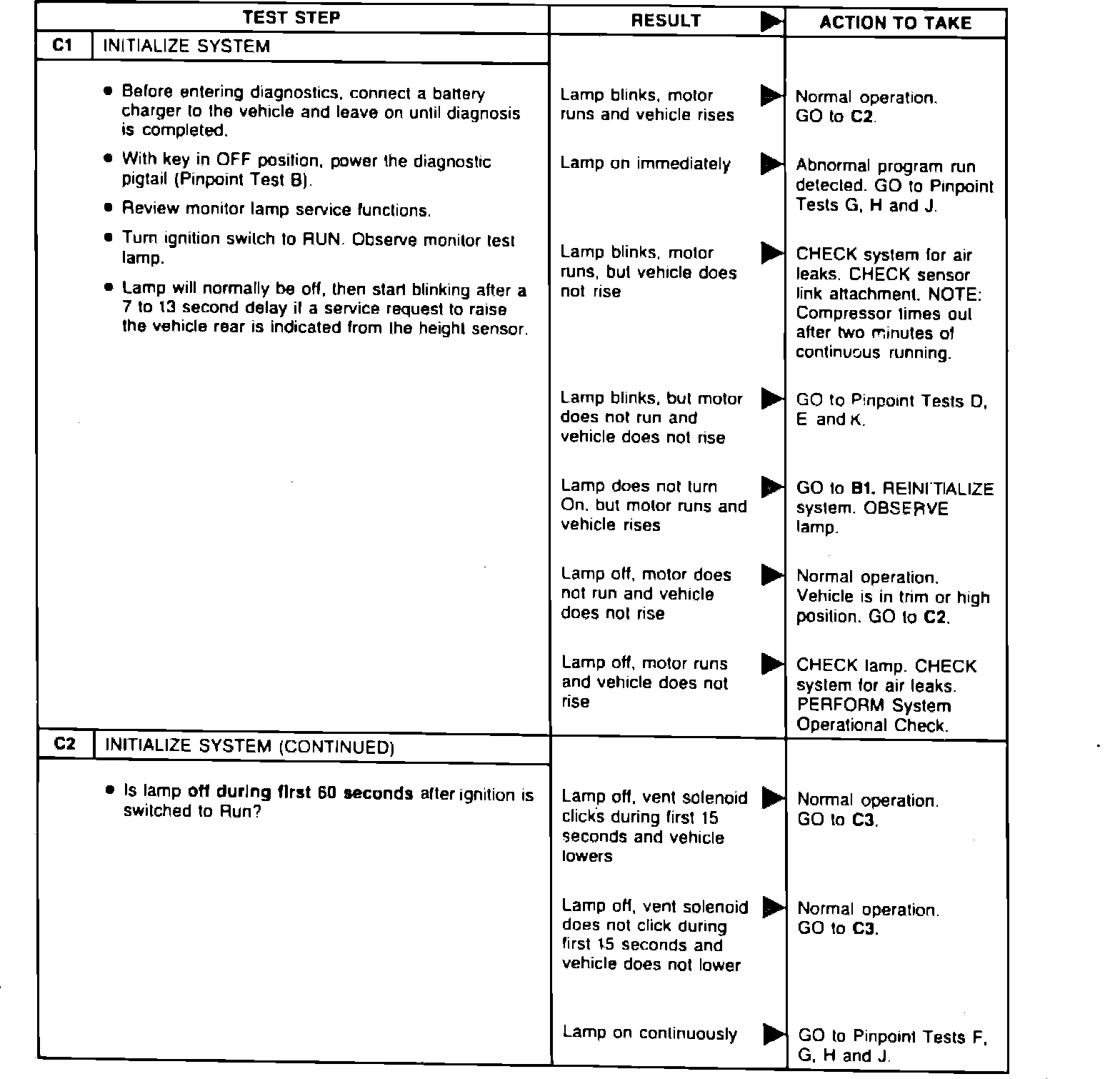

Fig. 11 Quick test chart C (Part 1 of 2), initialize system. 1985---86:

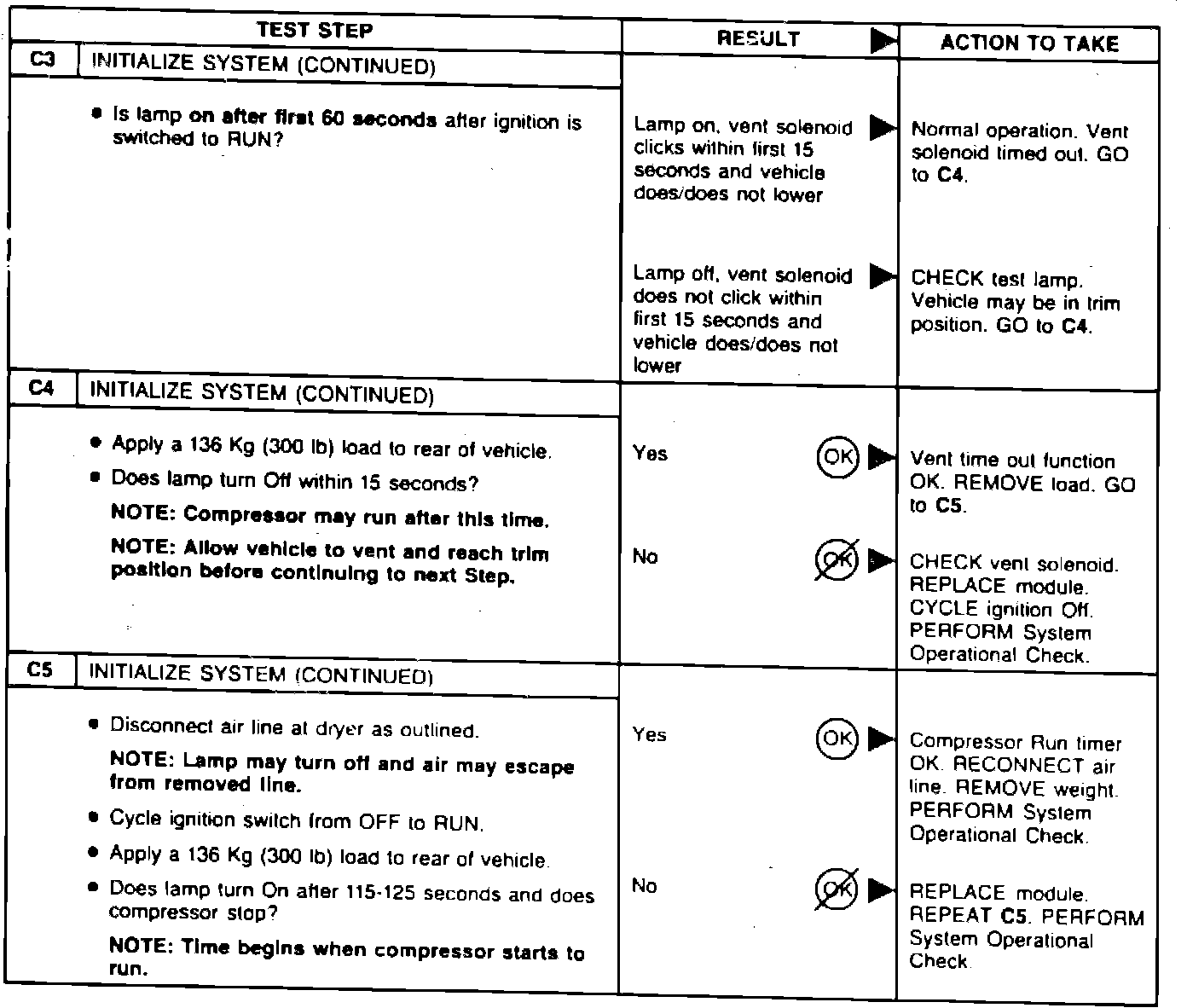

Fig. 11 Quick test chart C (Part 2 of 2), initialize system. 1985---86:

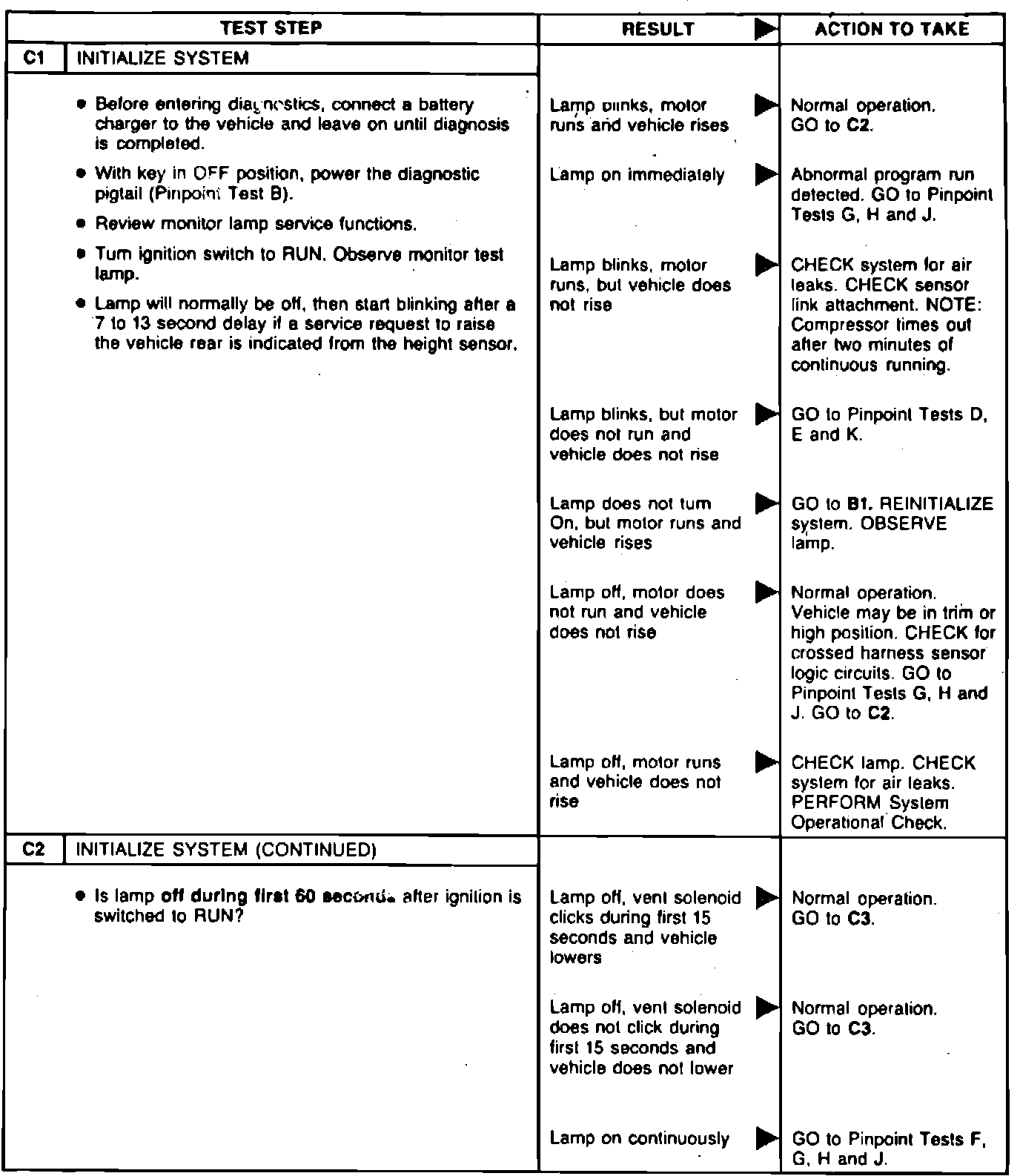

Fig. 12 Quick test chart C (Part 1 of 2), initialize system. 1987:

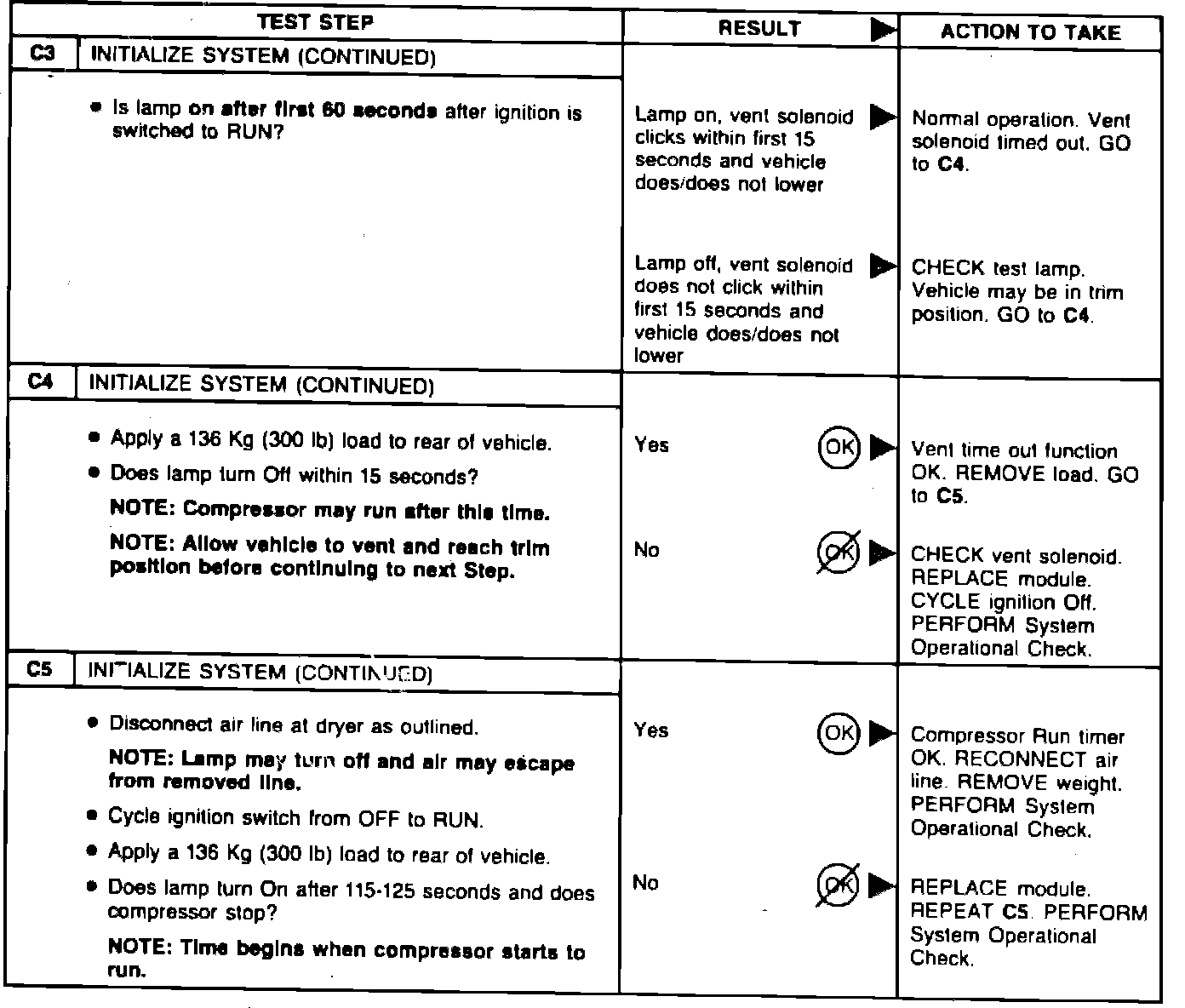

Fig. 12 Quick test chart C (Part 2 of 2), initialize system. 1987:

3. Test title---Initialize System (1985---86). Test and figure No.---Quick test C, Fig. 11. Initialize System (1987). Test and figure No.---Quick test C, Fig. 12.

Fig. 13 Pinpoint test chart D, ignition circuit diagnosis. 1985---87:

4. Test title---Ignition Circuit (1985---87). Test and figure No.---Pinpoint test D, Fig. 13.

Fig. 14 Pinpoint test chart E, battery circuit diagnosis. 1985---87:

5. Test title---Battery circuit (1985---87). Test and figure No.---Pinpoint test E, Fig. 14.

Fig. 15 Pinpoint test chart F (Part 1 of 2), vent solenoid diagnosis. 1985---86:

Fig. 15 Pinpoint test chart F (Part 2 of 2), vent solenoid diagnosis. 1985---86:

Fig. 16 Pinpoint test chart F (Part 1 of 2), vent solenoid diagnosis. 1987:

Fig. 16 Pinpoint test chart F (Part 2 of 2), vent solenoid diagnosis. 1987:

6. Test title---Vent Solenoid Circuit (1985---86). Test and figure No.---Pinpoint test F, Fig. 15. Vent Solenoid Circuit (1987). Test and figure No.---Pinpoint test f, Fig. 16.

Fig. 17 Pinpoint test chart G, sensor ground diagnosis. 1985---87:

7. Test title---Sensor Ground Circuit (1985---87). Test and figure No.---Pinpoint test G, Fig. 17.

Fig. 18 Pinpoint test chart H, sensor power circuit diagnosis. 1985---86:

Fig. 19 Pinpoint test chart H, sensor power circuit diagnosis. 1987:

8. Test title---Sensor Power Circuit (1985---86). Test and figure No.---Pinpoint test H, Fig. 18. Sensor Power Circuit (1987). Test and figure No.---Pinpoint test H, Fig. 19.

Fig. 20 Pinpoint test chart J, sensor logic diagnosis. 1985---86:

Fig. 21 Pinpoint test chart J (Part 1 of 2), sensor logic diagnosis. 1987:

Fig. 21 Pinpoint test chart J (Part 2 of 2), sensor logic diagnosis. 1987:

9. Test title---Sensor Logic Circuits (1985---86). Test and figures No.---Pinpoint test J, Fig. 20. Sensor Logic Circuits (1987). Test and figures No.---Pinpoint test J, Fig. 21.

Fig. 22 Pinpoint test chart K (Part 1 of 2), compressor relay/motor diagnosis. 1985---86:

Fig. 22 Pinpoint test chart K (Part 2 of 2), compressor relay/motor diagnosis. 1985---86:

Fig. 23 Pinpoint test chart K (Part 1 of 2), compressor relay/motor diagnosis. 1987:

Fig. 23 Pinpoint test chart K (Part 2 of 2), compressor relay/motor diagnosis. 1987:

10. Test title---Compressor Relay/Motor (1985---86). Test and figure No.---Pinpoint test K, Fig. 22. Compressor Relay/Motor (1987). Test and figure No.---Pinpoint test K, Fig. 23.
