Ground Distribution (G1301) With Trailer Option
Ground Distribution (G1301) With Trailer Option

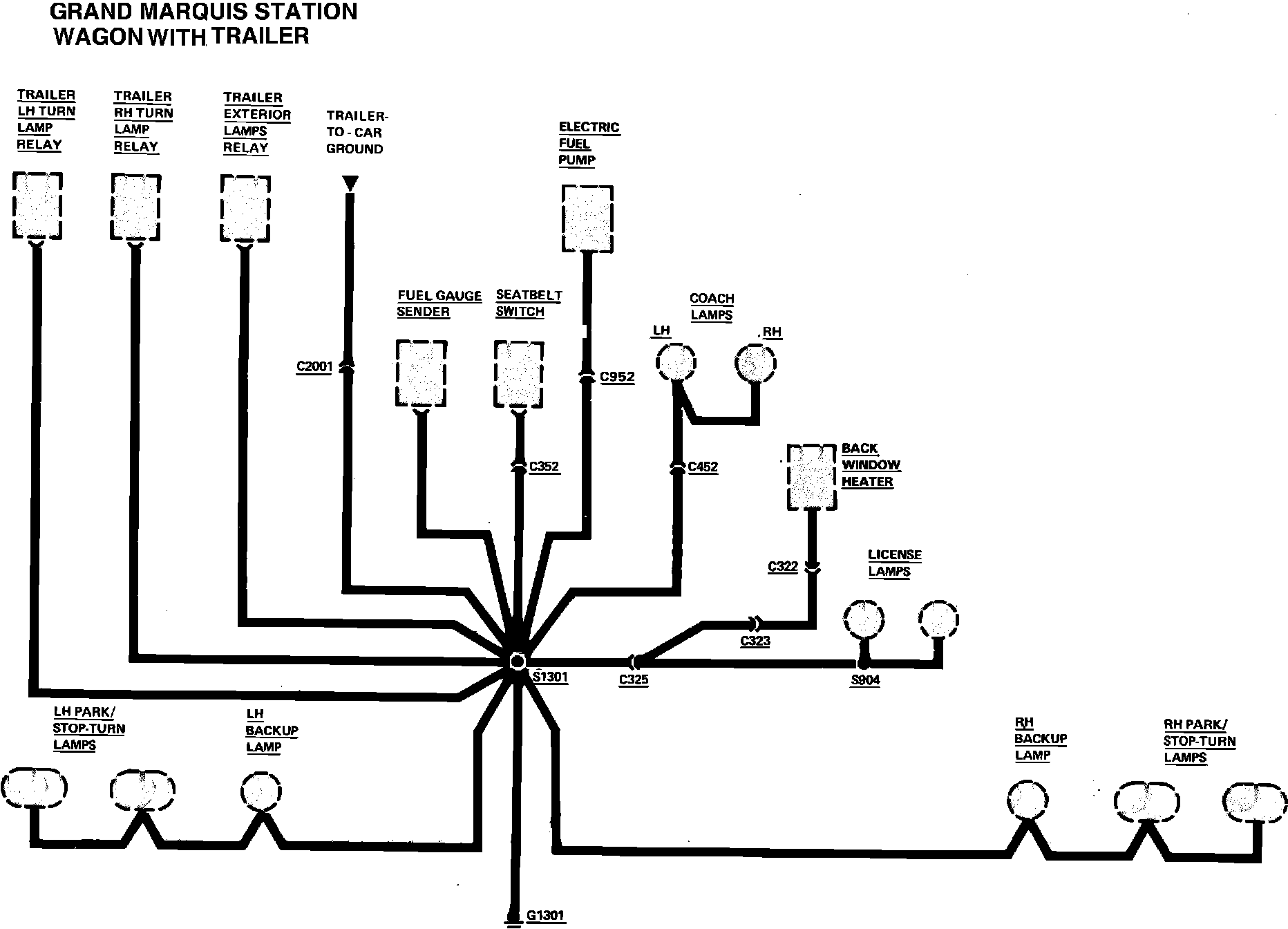

Fig. 32 Ground Distribution (G1301). Grand Marquis With Trailer Option:
