Charging System

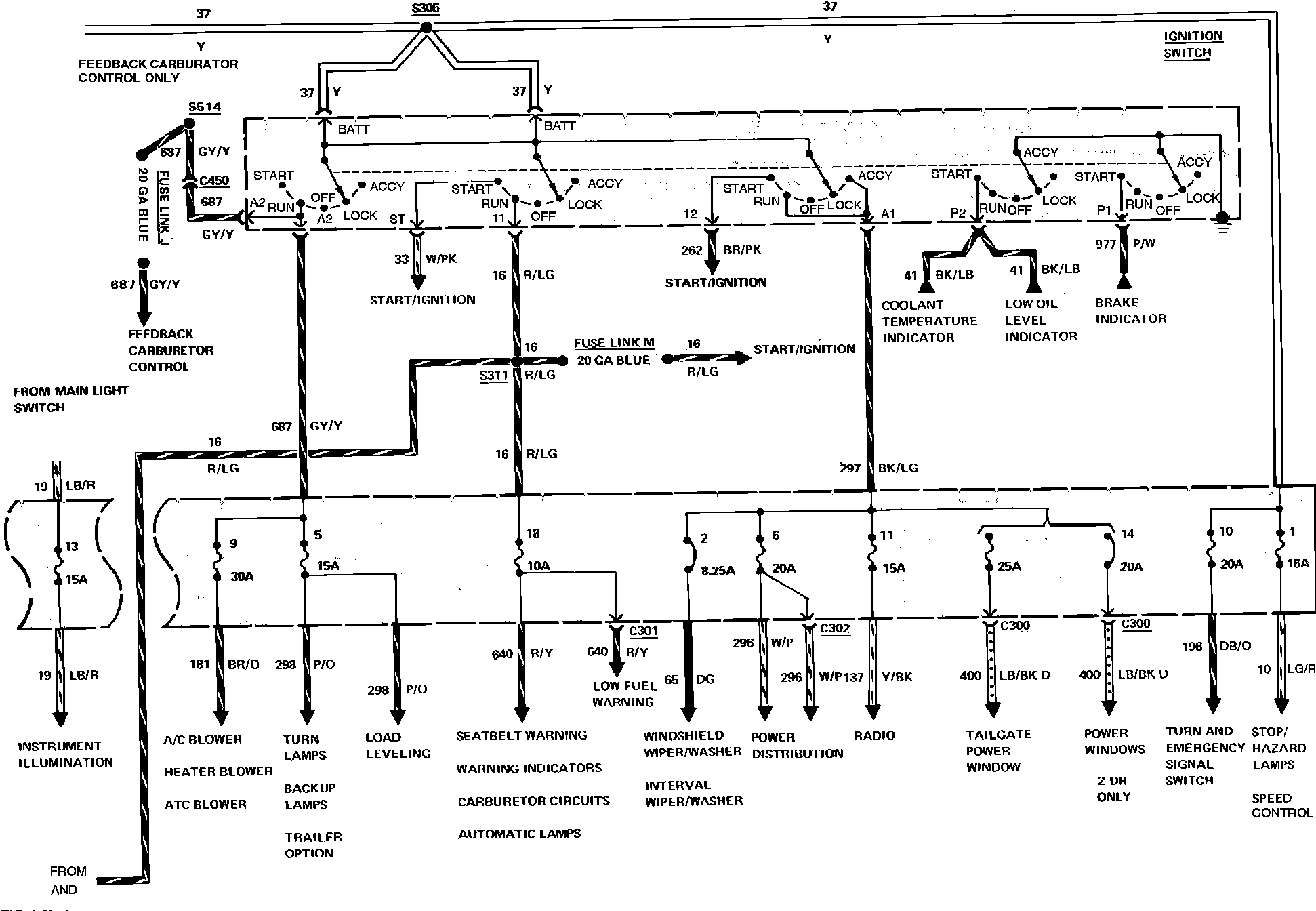

Fig. 10 Charging System Power Distribution (Part 1 of 2):

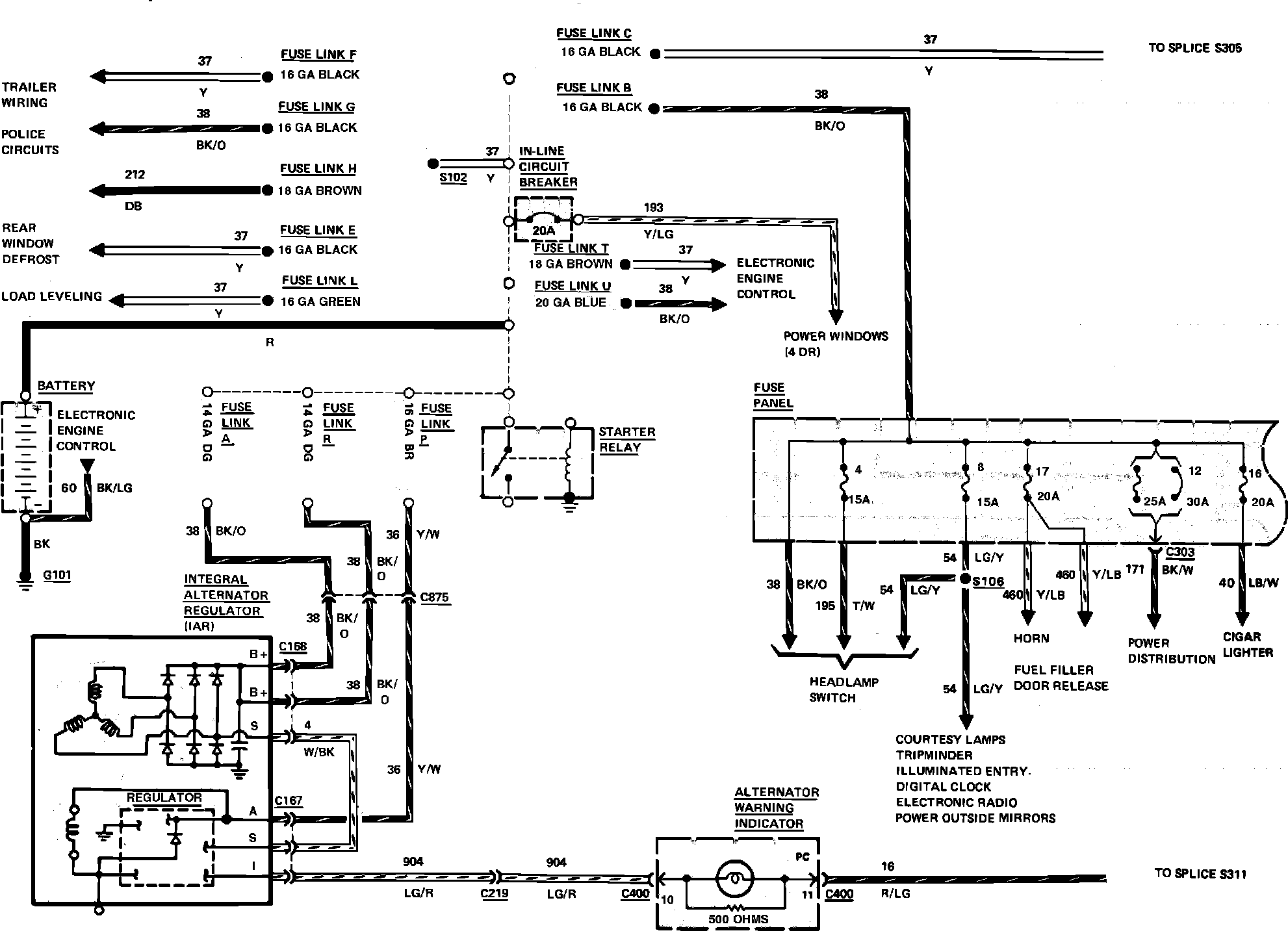

Fig. 10 Charging System Power Distribution (Part 2 of 2):
