Electrical Diagrams

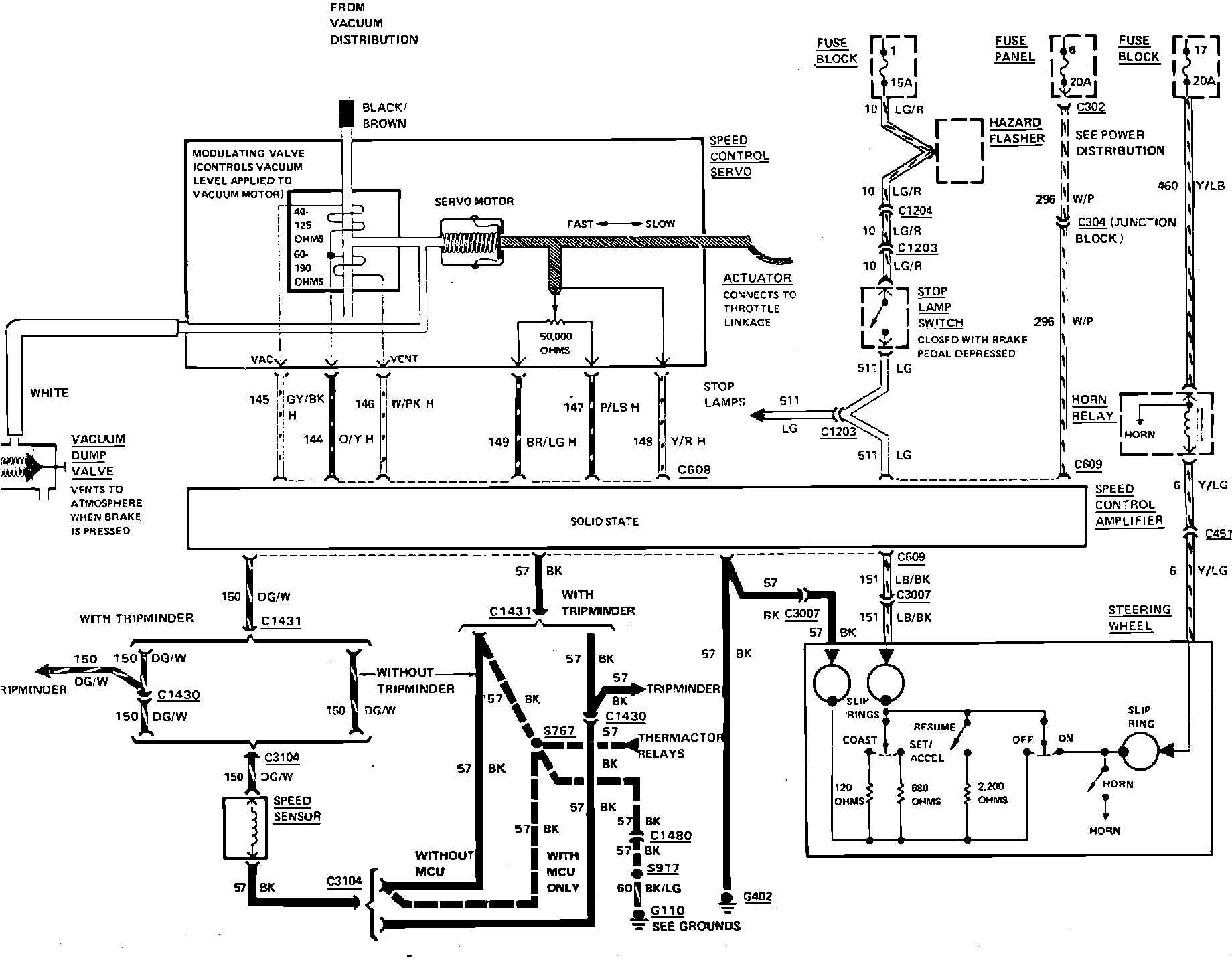

Fig. 5 Speed control wiring schematic (typical). 1986 Lincoln Continental, 1986---87 Ford & Mercury:

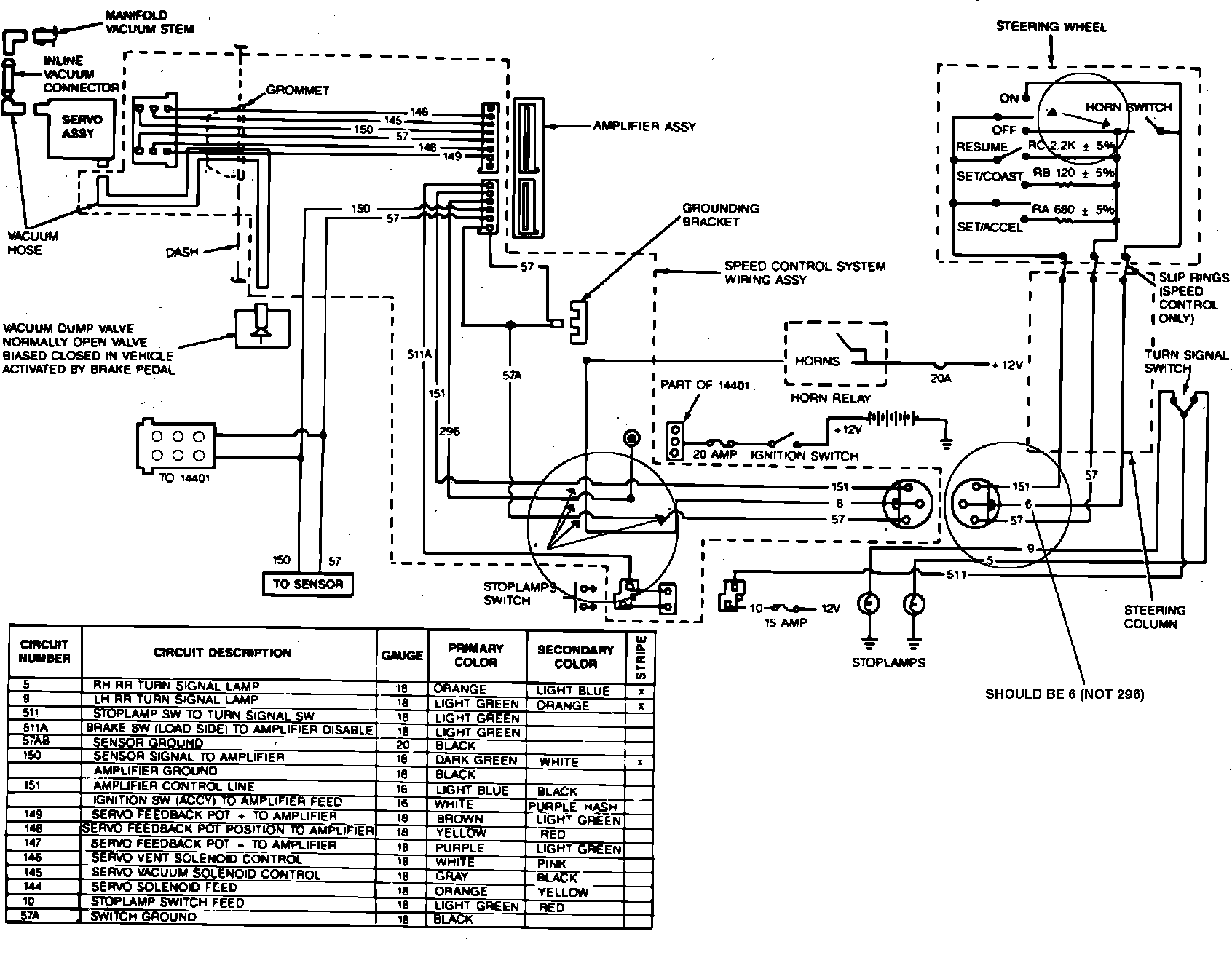

Fig. 60 Speed Control Vacuum & Wiring Circuit:
