Without A/C

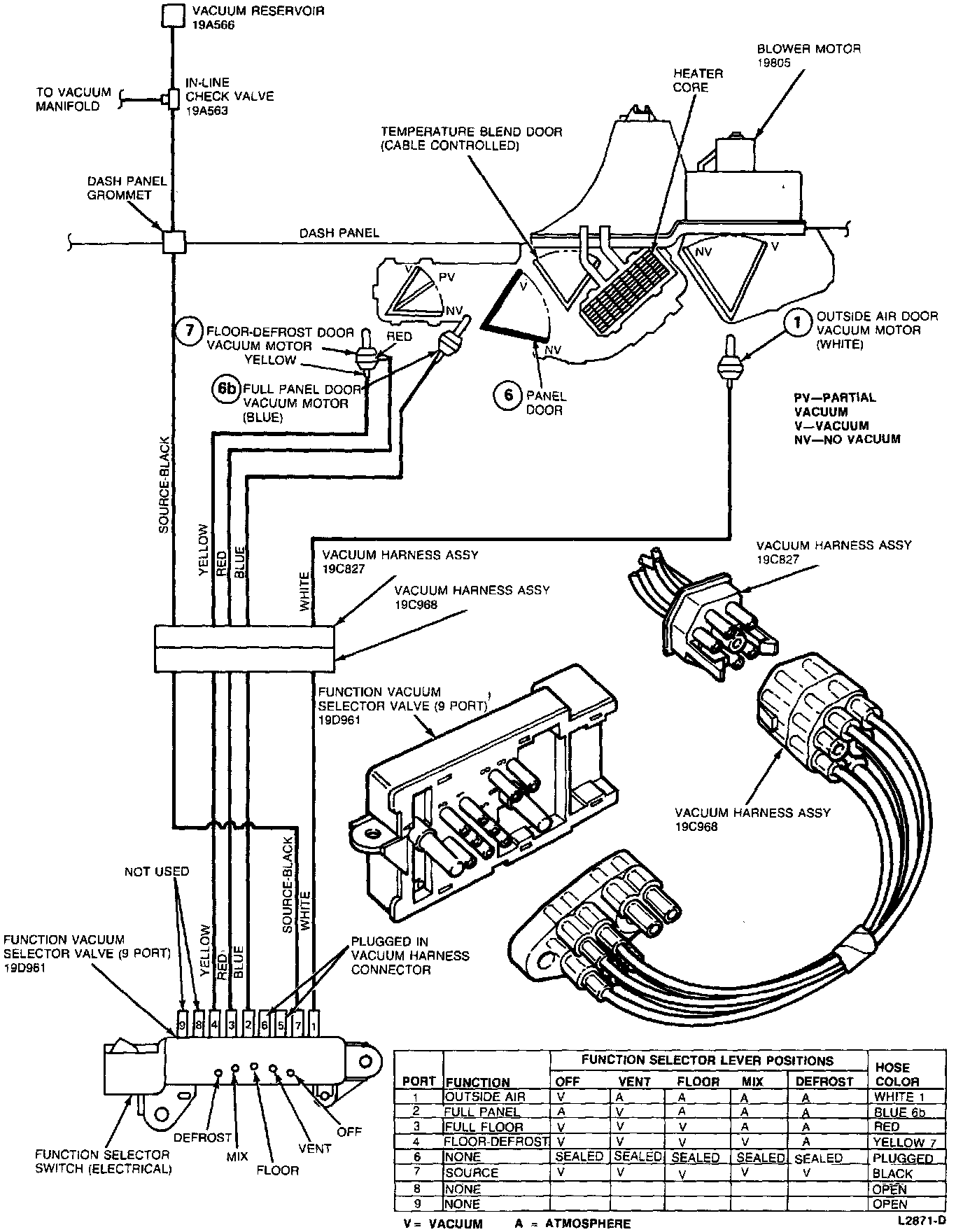

Heater System Air Flow Schematic And Vacuum Control Chart:

Refer to the Manual Heater System Airflow Schematic and Vacuum Control Chart to assist in performing airflow function and Vacuum Motor Application Tests.
