Without A/C

INSTALLATION

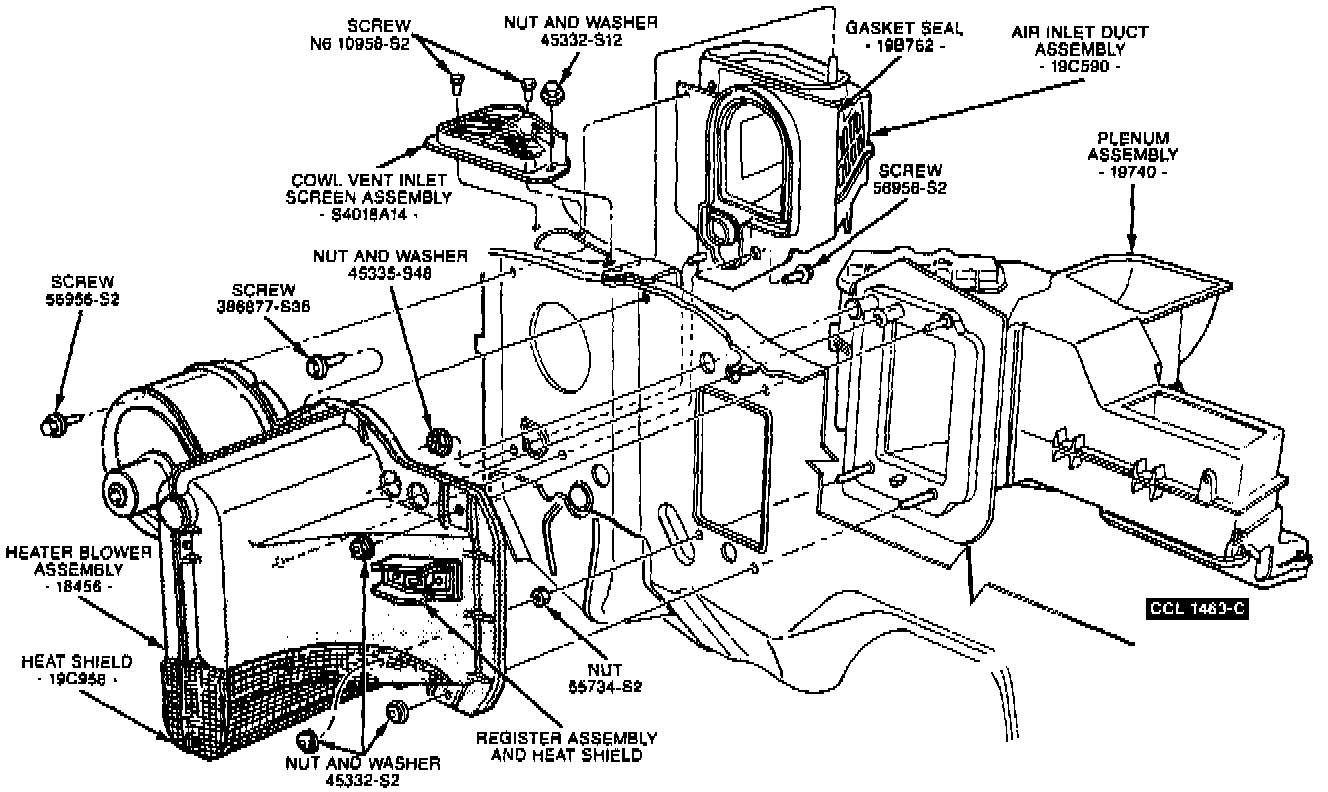

Fig. 5 Typical heater core removal. 1982---88:

1. Carefully install the heater core and seal assembly into the plenum assembly. Visually check to make certain that core seal is properly positioned.
2. Position the heater core cover and install the four retaining screws and tighten.

Plenum And Air Inlet Duct Removal:

4. Install the heater core plenum assembly. For installation procedure see Heater Core Case Removal And Installation. Service and Repair
