Ignition Key Warning

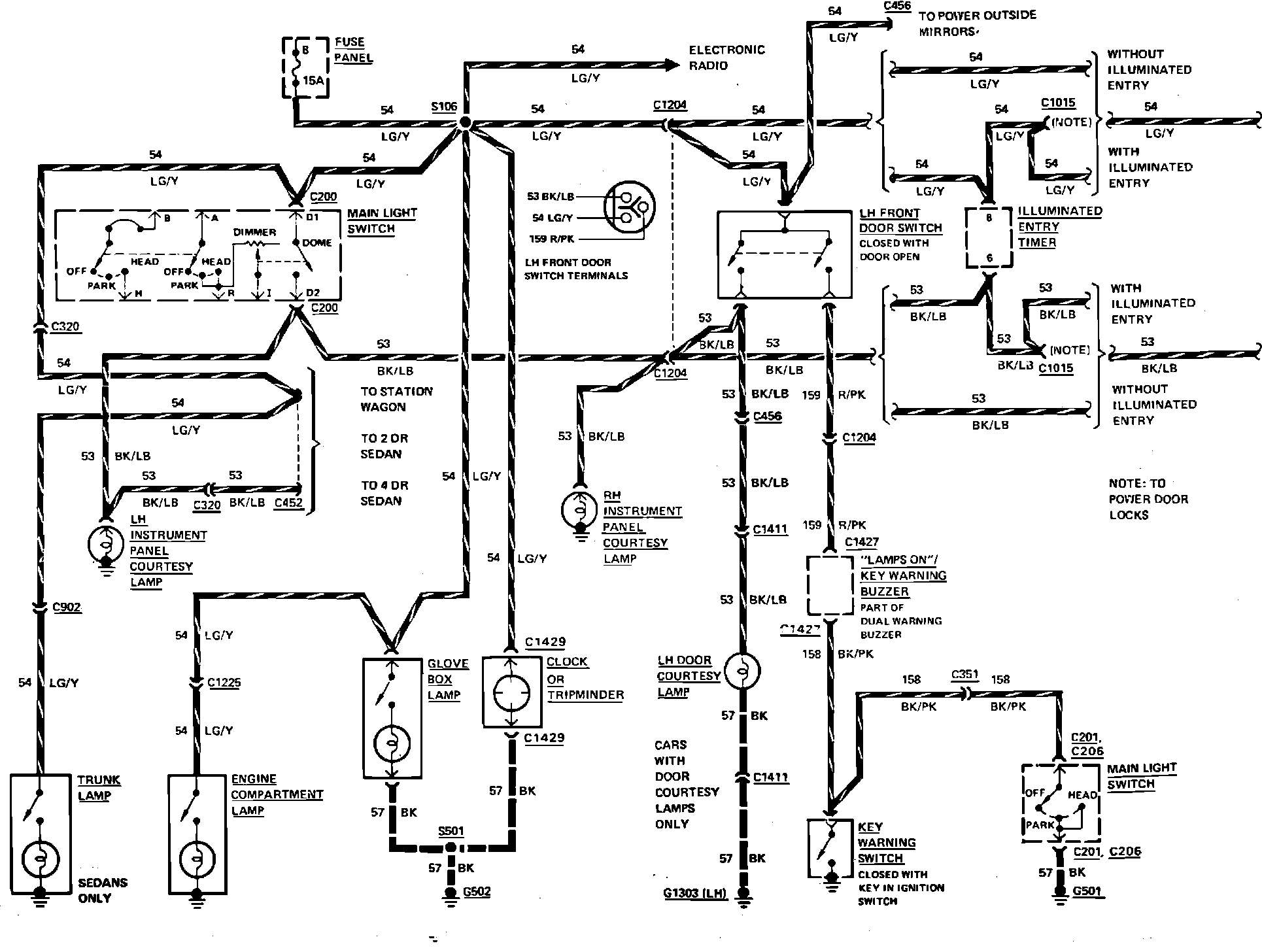

Fig. 13 Courtesy Lamps & Key Warning Indicator Wiring Circuit (Part 1 of 3):

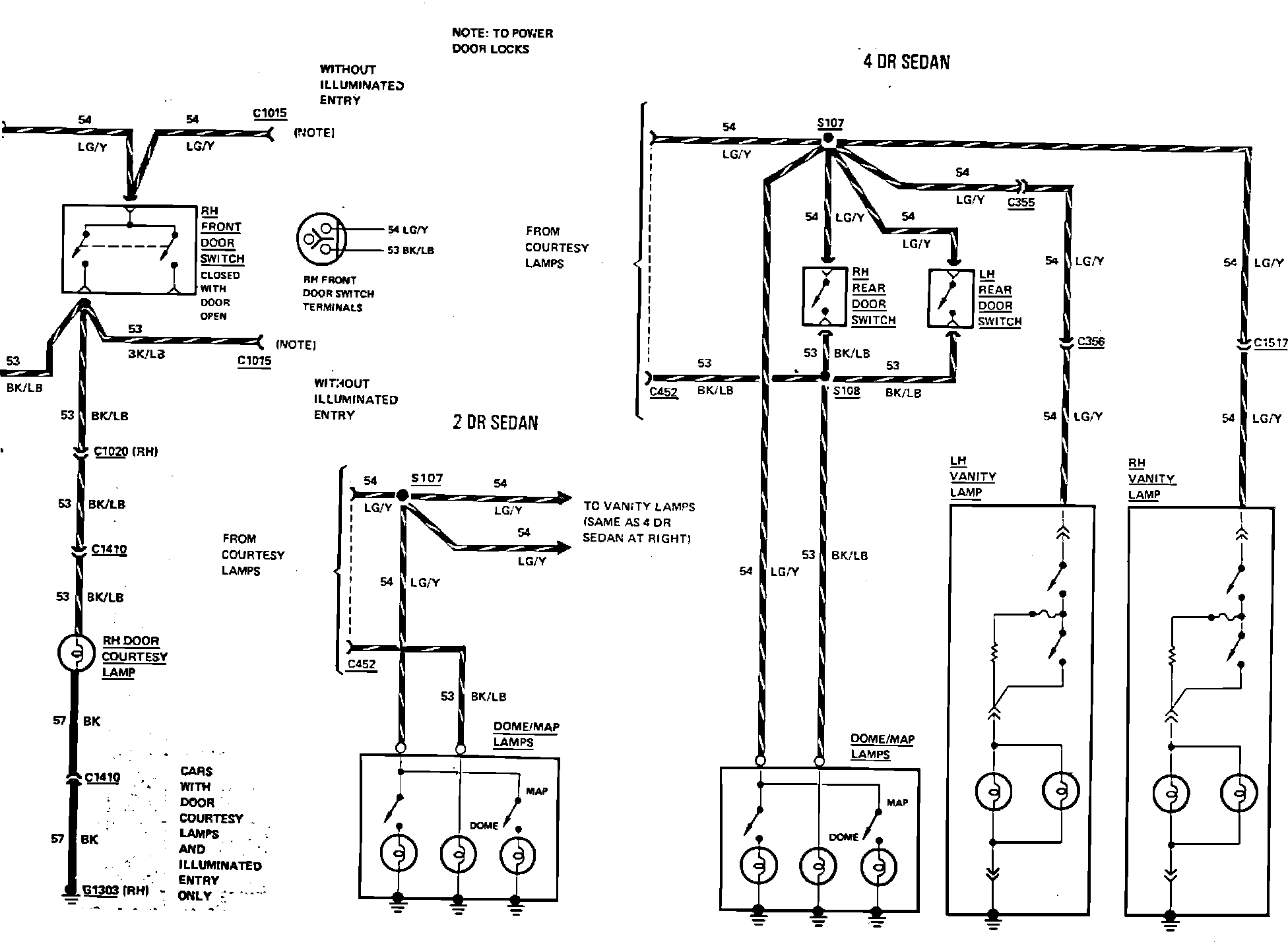

Fig. 13 Courtesy Lamps & Key Warning Indicator Wiring Circuit (Part 2 of 3):

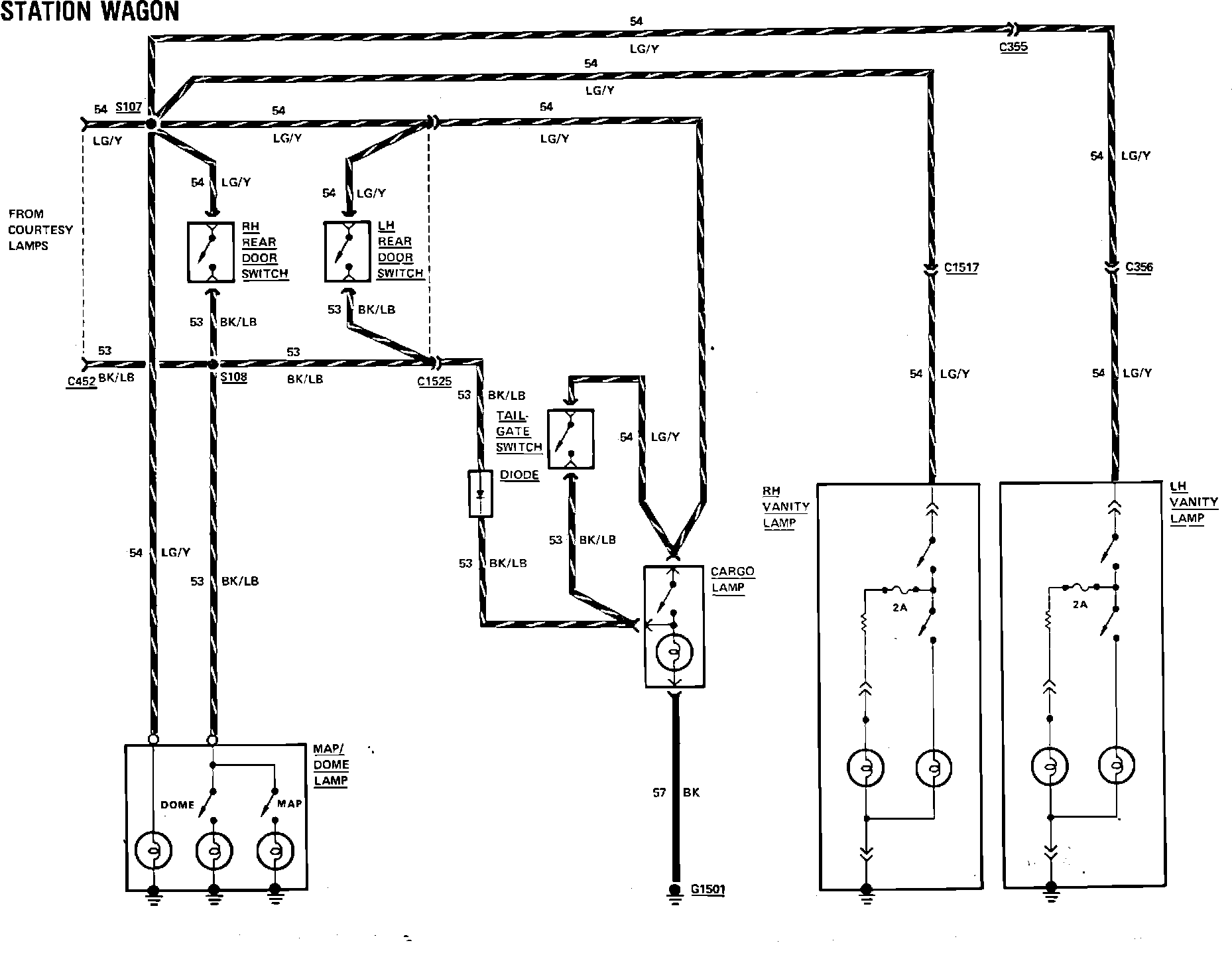

Fig. 13 Courtesy Lamps & Key Warning Indicator Wiring Circuit (Part 3 of 3):
