Home >> Mercury >> 1986 >> Colony Park V8-302 5.0L VIN F FI >> Repair and Diagnosis >> Body and Frame >> Sensors and Switches - Body and Frame >> Power Door Lock Switch >> Diagrams >> Electrical Diagrams >> Exc. 2 Door Models

Exc. 2 Door Models

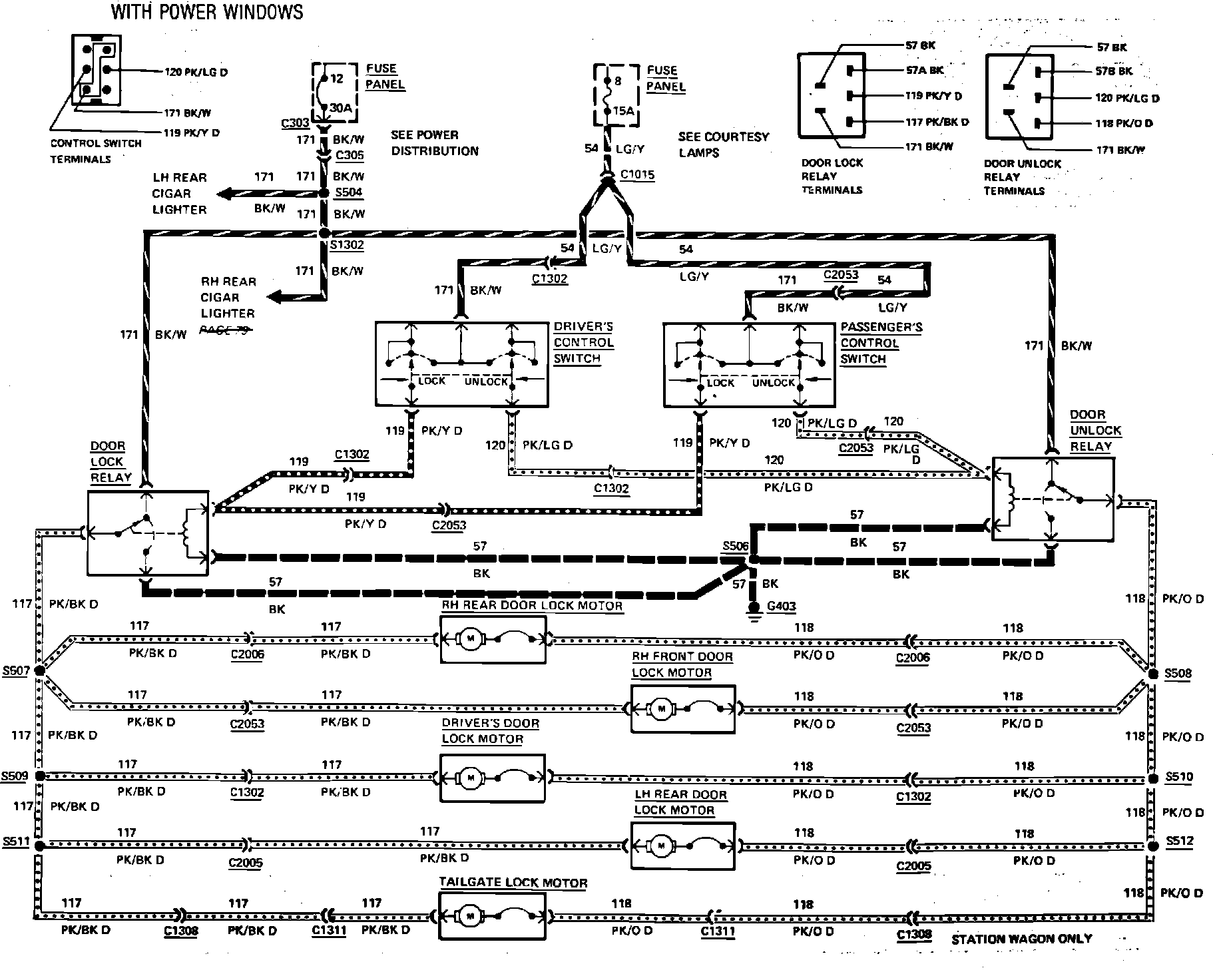

Fig. 45 Power Door Lock Wiring Circuit. Exc. 2 Door Models:
