Capri V8-302 5.0L HO
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
Vacuum and Vapor Hose Diagrams

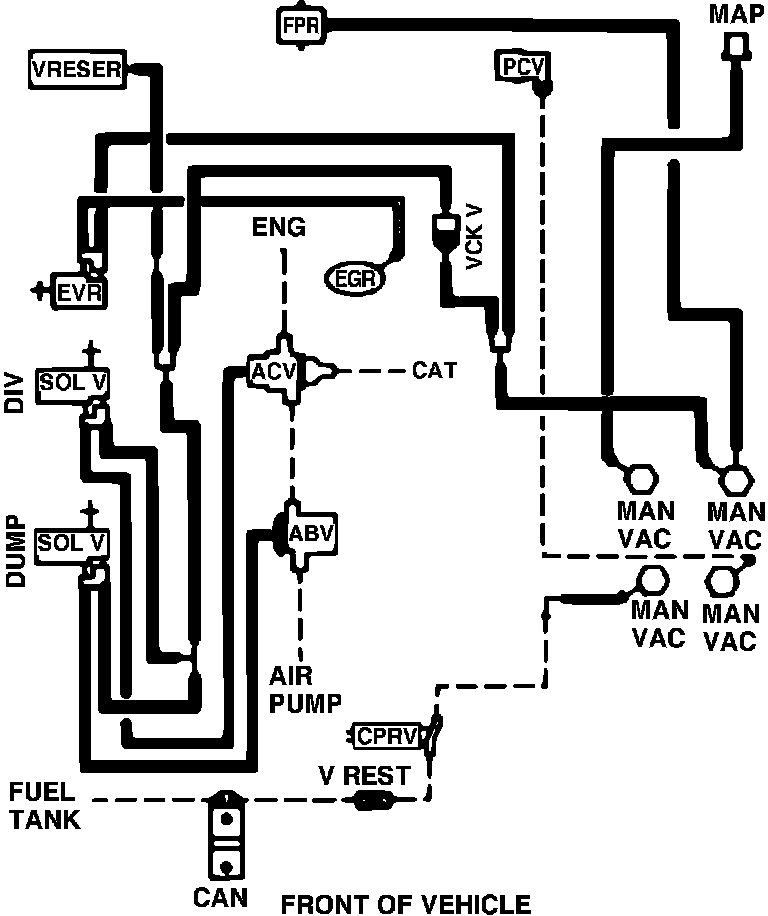

Fig. 9 Vacuum hose routing. 1986 V8-302 w/EFI, Ford & Mercury full size & Lincoln Town Car:
