Reading Diagnostic Trouble Codes
>>
Quick Tests
>>
6.0 - Continuous Self-Test
>>
6.0 - Parts A Thru C
6.0 - Parts A Thru C

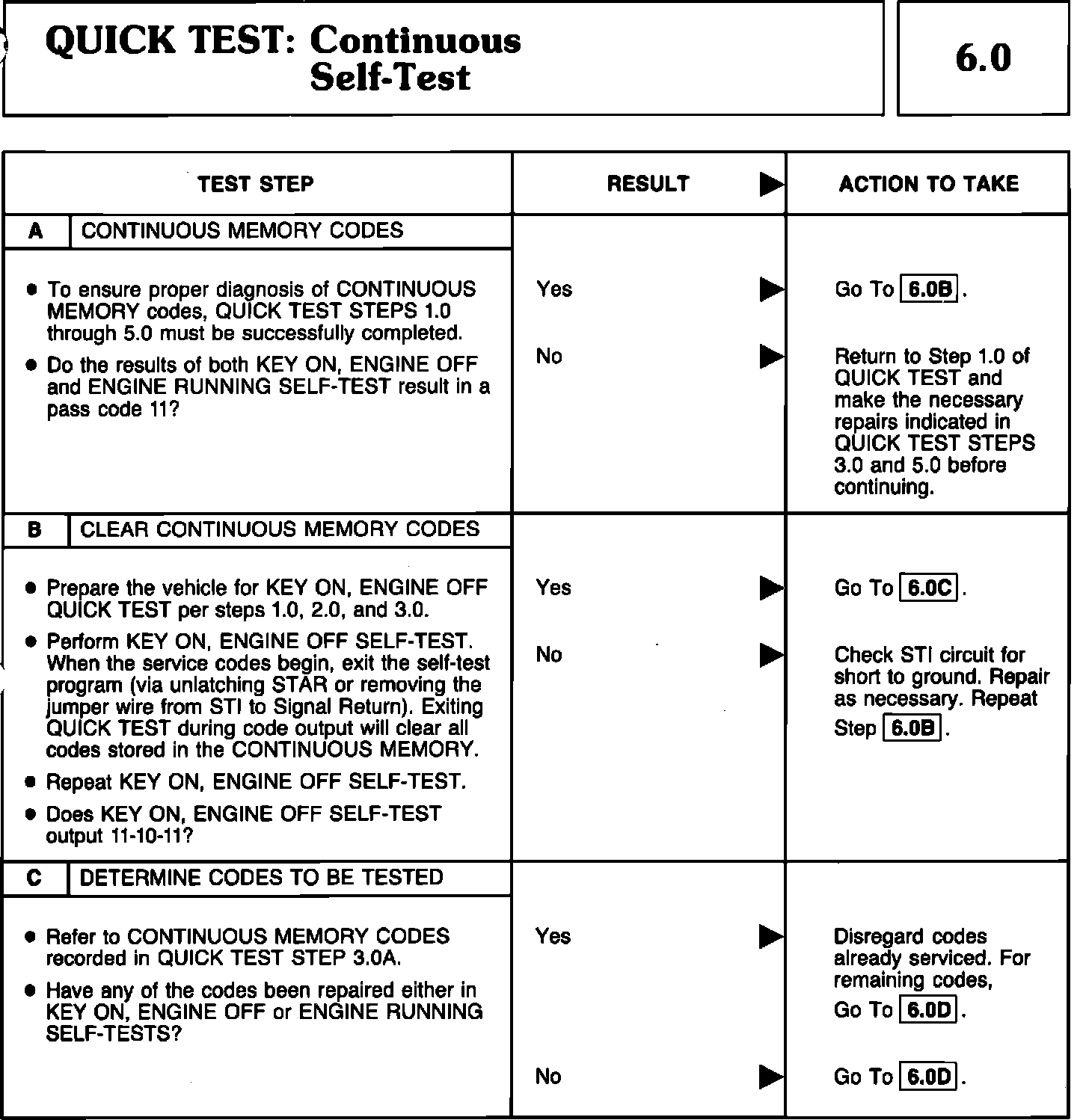

Quick Test 6.0A Thru C - Cont. Self-Test:
