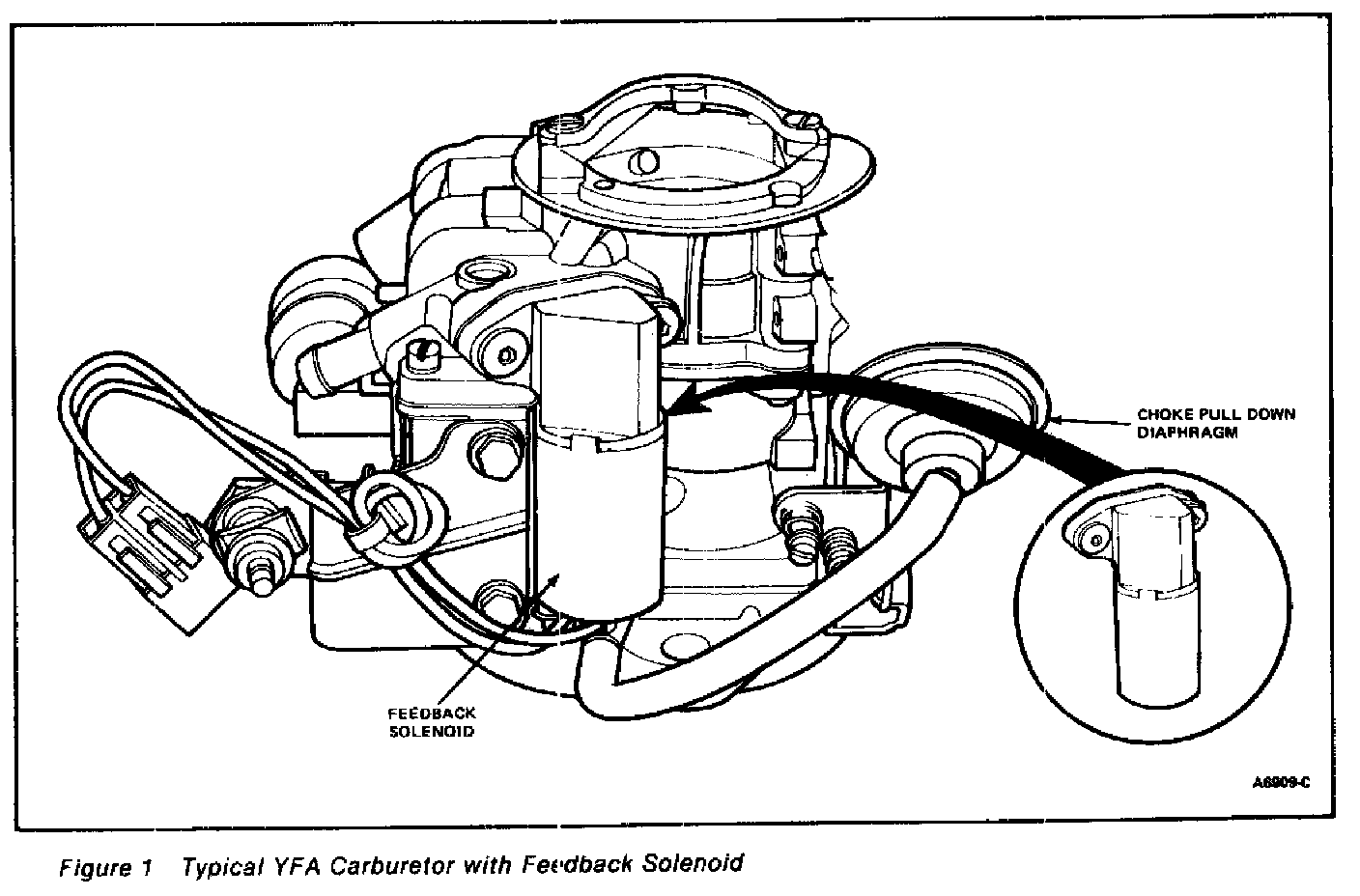

Carburetor Feedback Solenoid - YFA

This solenoid assembly is an integral part of the YFA feedback carburetors


In a feedback system, it operates as a pulse width modulated (dithering) solenoid, varying the air bled into the idle and main fuel metering circuits, in response to commands from the MCU or EEC, thereby varying the fuel/air ratio delivered to the engine.
