Intake Manifold Bolts - Torque Sequence Correction
Article No. 86-20-4INTAKE MANIFOLD - LOWER - 5.0L SEFI - TORQUE SEQUENCE FOR ATTACHING BOLTS - SHOP MANUAL CORRECTION
FORD 1986 MUSTANG, THUNDERBIRD, CROWN VICTORIA
LINCOLN-MERCURY 1986 CAPRI, COUGAR, GRAND MARQUIS, MARK VII, CONTINENTAL, LINCOLN TOWN CAR

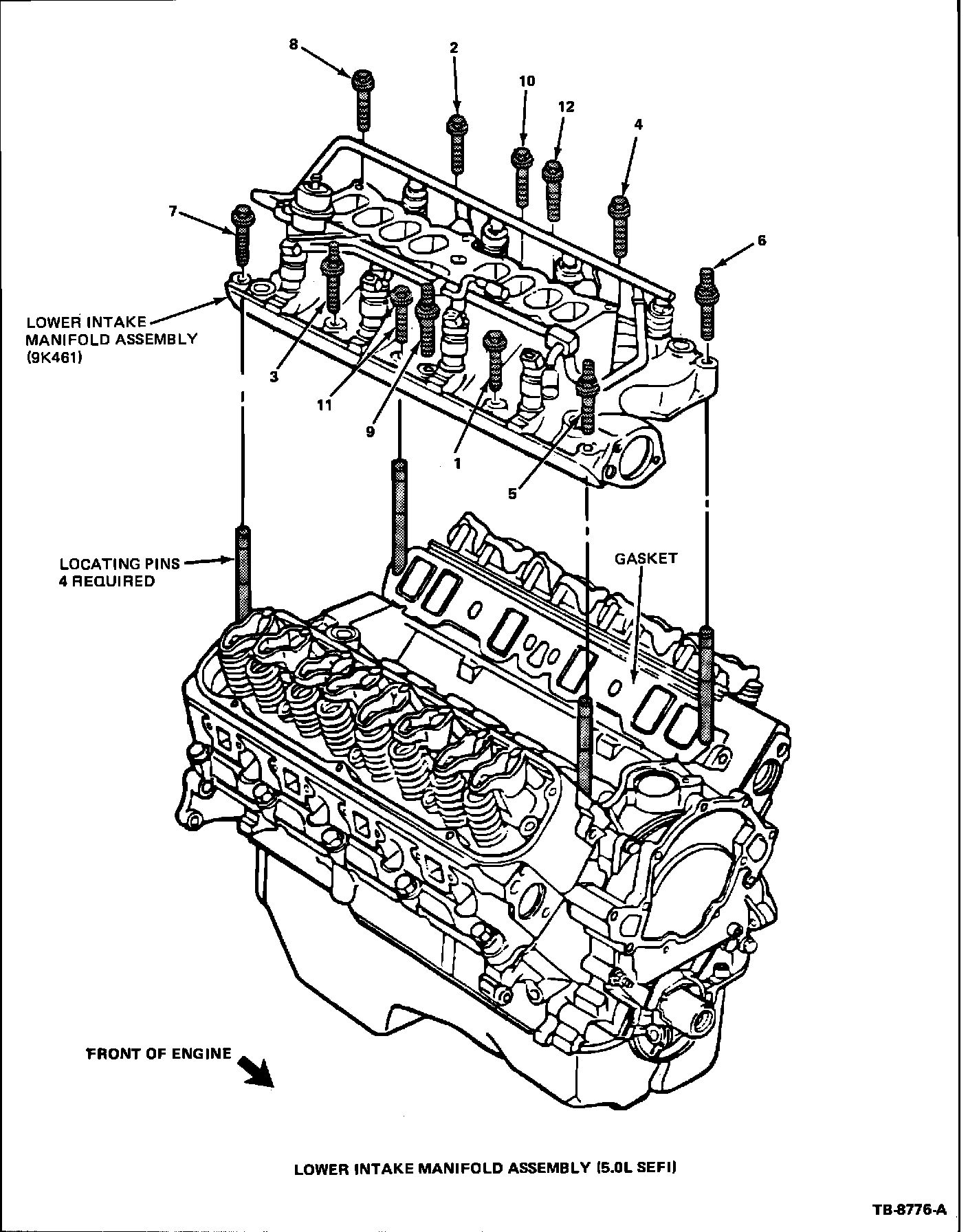

Figure 3:
Section 21-21-15 of the 1986 and 1987 Car Shop Manuals (Step 5) incorrectly refers the technician to Figure 24 for the bolt tightening sequence for the lower intake manifold. The technician should be referred to Figure 22 and the bolt tightening sequence should be added from Figure 3. The procedure in Step 5 should also be revised so that the lower intake manifold bolts are tightened in sequence to first 15-20 ft.lbs. (20-27 N-m) and then to 23-25 ft.lbs. (31-34 N-m).
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY"
