Home >> Mercury >> 1986 >> Capri V6-232 3.8L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Charging System >> Part 1 of 4

Part 1 of 4

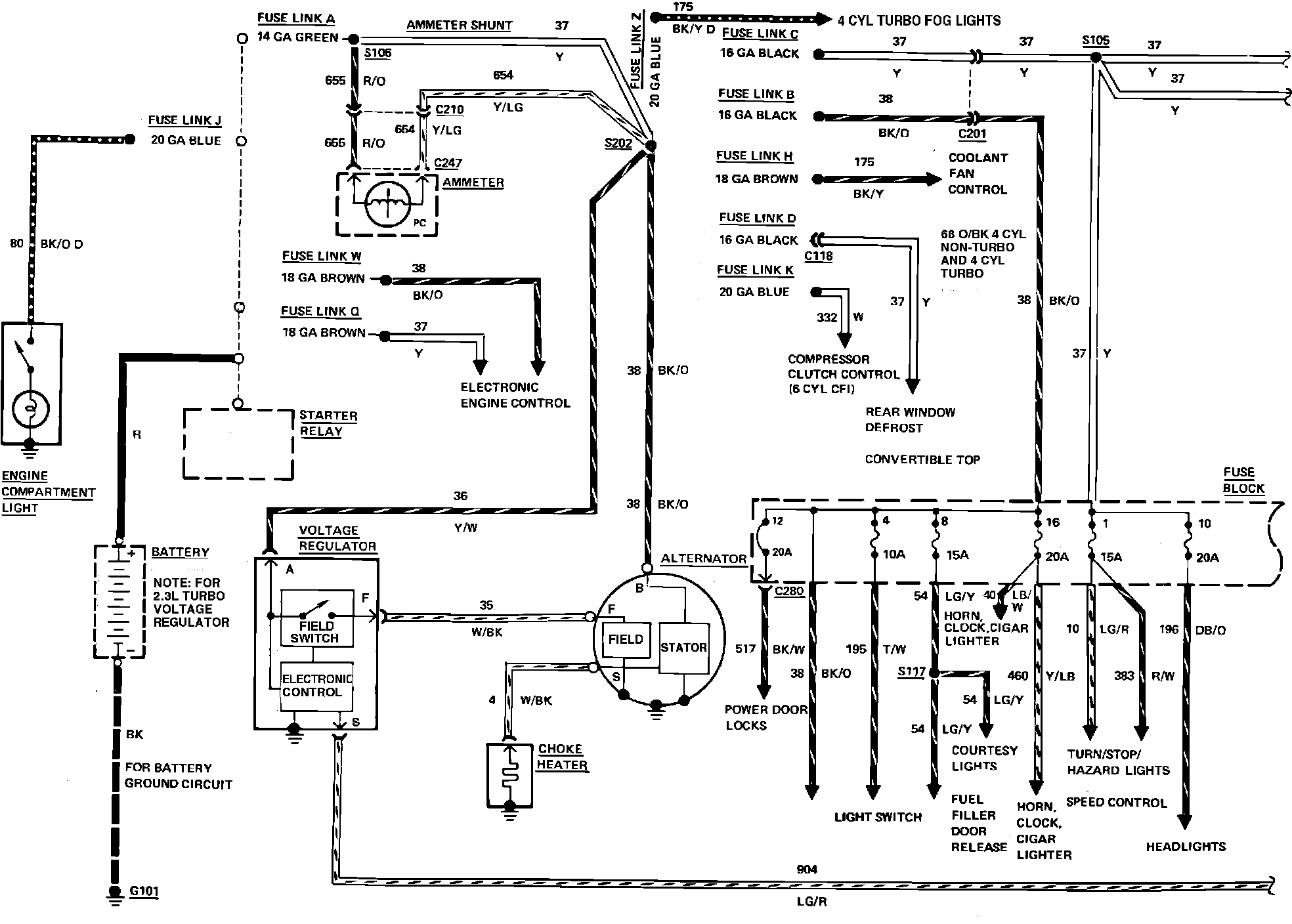

Fig. 7 Charge & Power Distribution Wiring Circuit (Part 1 of 4):
