Air Injection Muffler: Description and Operation

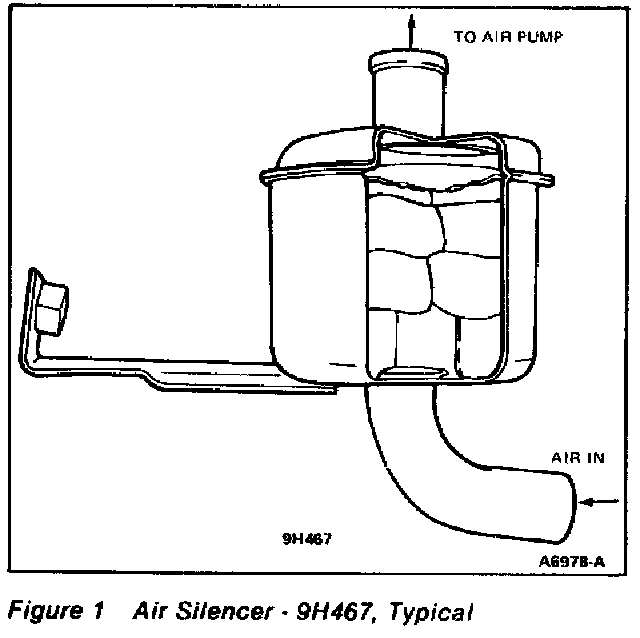

The Air Silencer is a combination silencer and filter for air supply pumps that are not equipped with an impeller type centrifugal air filter fan or for pulse air (thermactor II) Systems. The air silencer is mounted in a convenient position in the engine compartment and is connected to the air supply pump or pulse air valve inlet by means of a flexible hose.
