G201 4-140 Turbocharged Engine

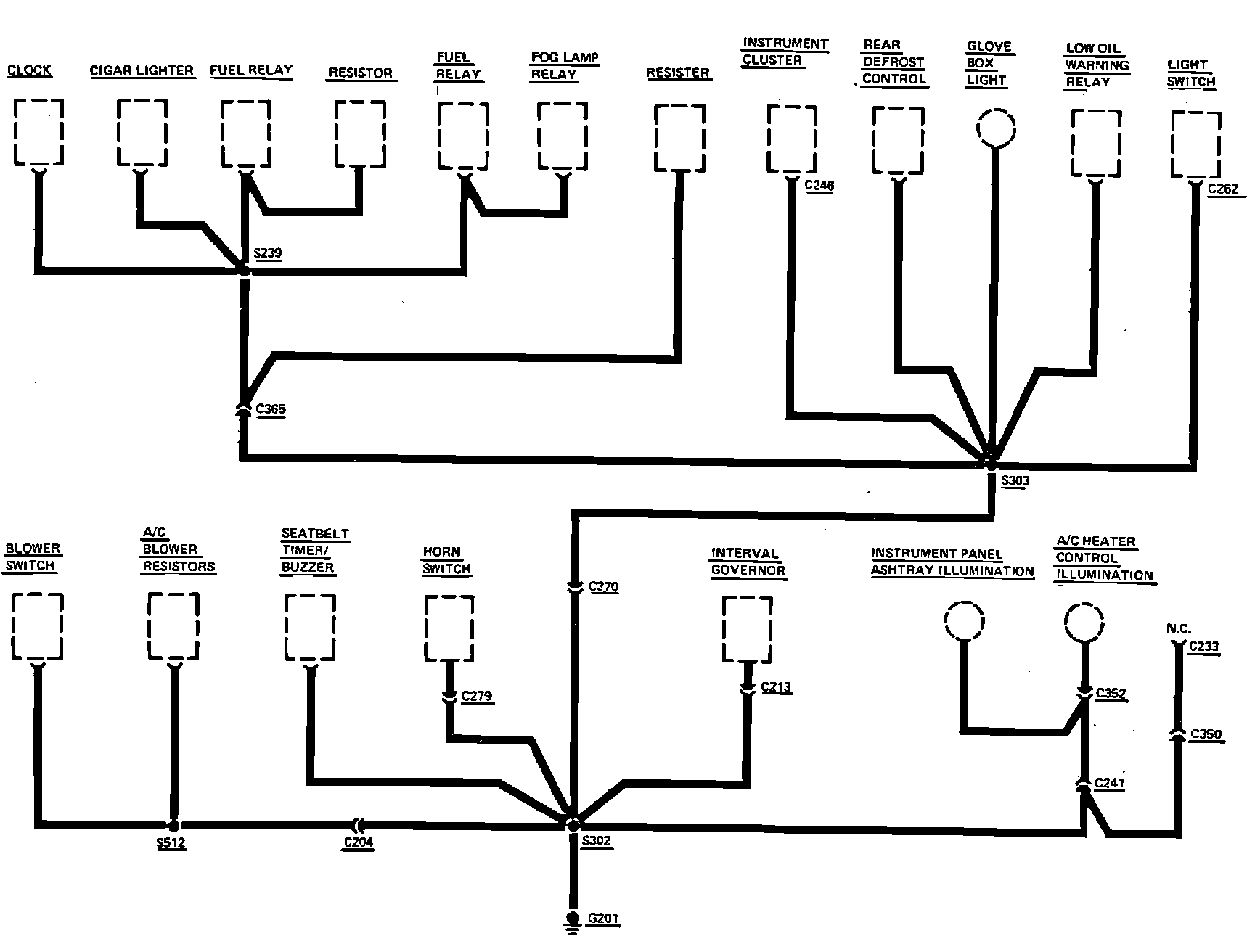

Fig. 26 Ground Distribution Wiring Circuit (G201). 4-140 Turbocharged Engine:
