G102, 103 4-140 Turbocharged Engine

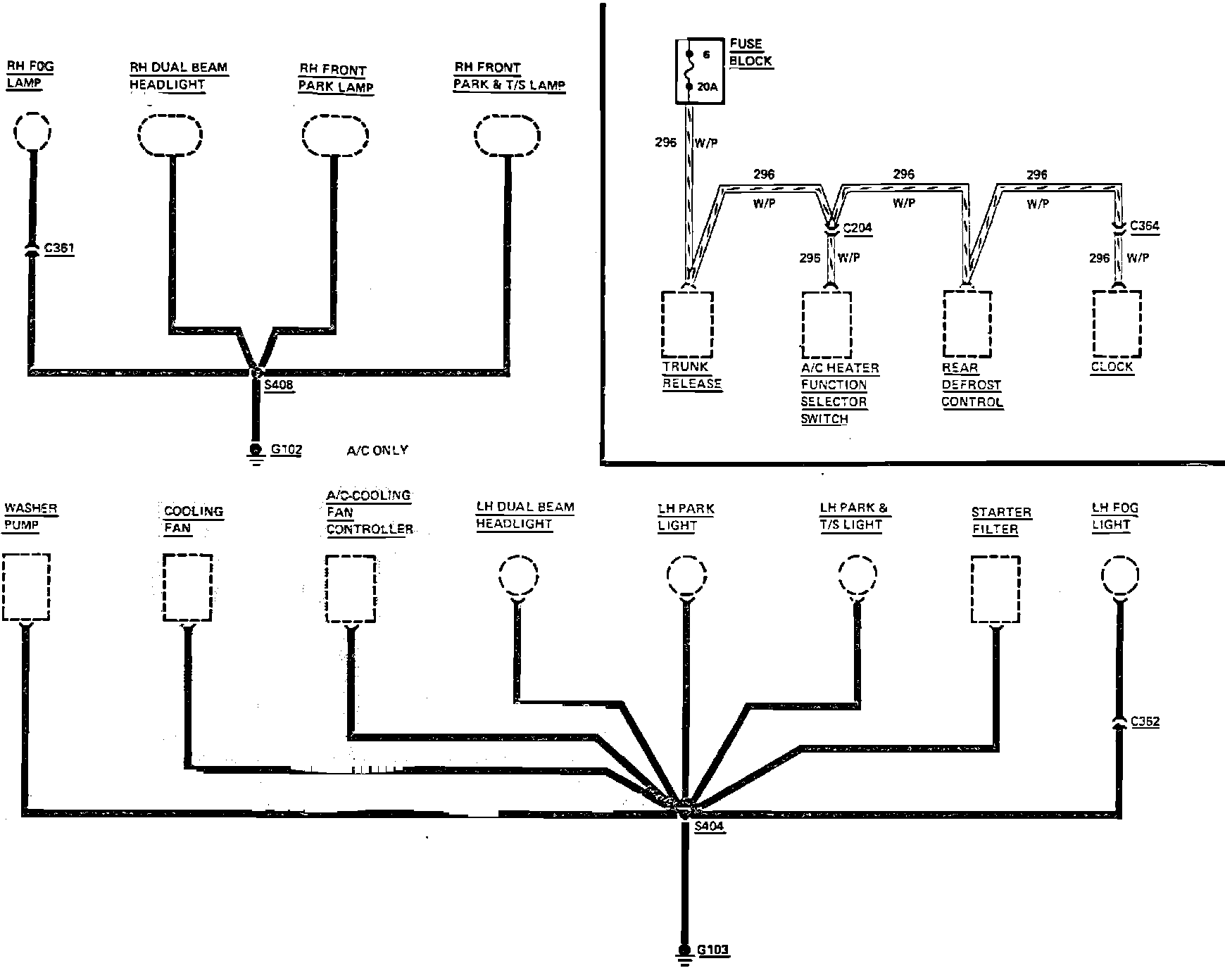

Fig. 31 Ground & Power Distribution Wiring Circuit (G102, 103). 4-140 Turbocharged Engine:
