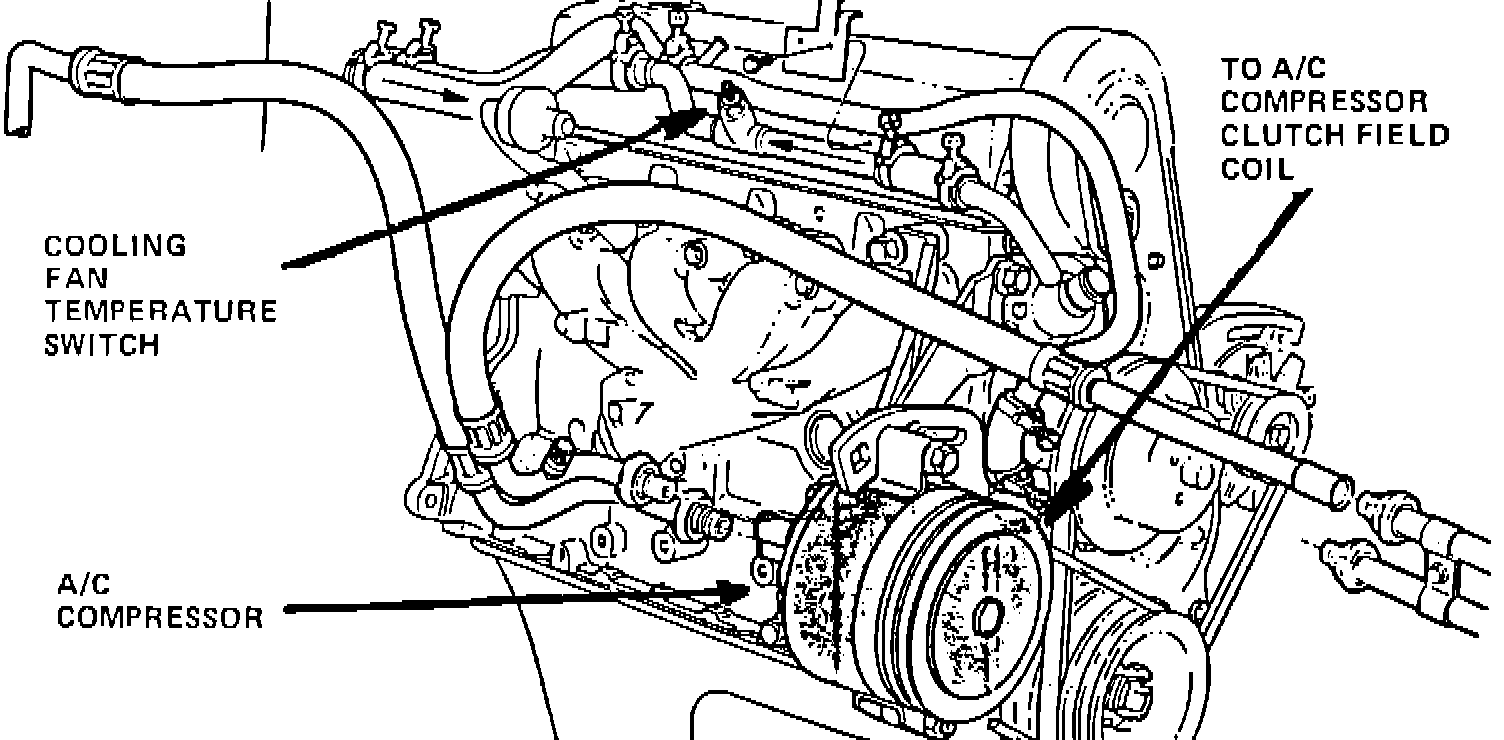

Radiator Cooling Fan Temperature Sensor / Switch: Locations

RH Side Of 4-140/2.:




Center RH Side Of Cylinder Head, In Pipe Assembly

Applicable to: 3L Engine. 1986
