Electrical Diagrams

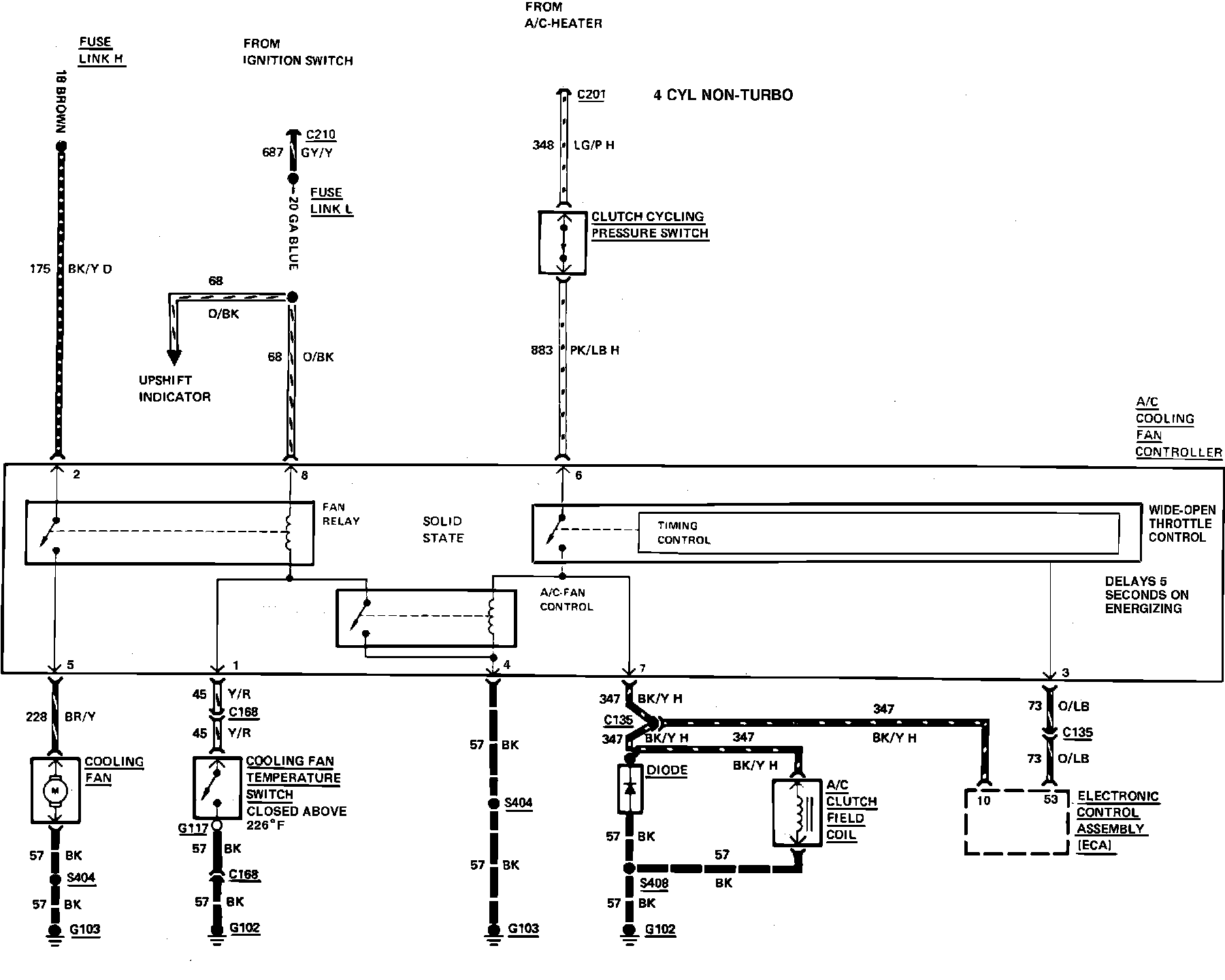

Fig. 10 Compressor Clutch Control & Cooling Fan Wiring Circuit. Except 4-140 Turbocharged Engine:
