Home >> Mercury >> 1985 >> Topaz L4-140 2.3L HSC >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G401 & G402 W/Diesel Engine

G401 & G402 W/Diesel Engine

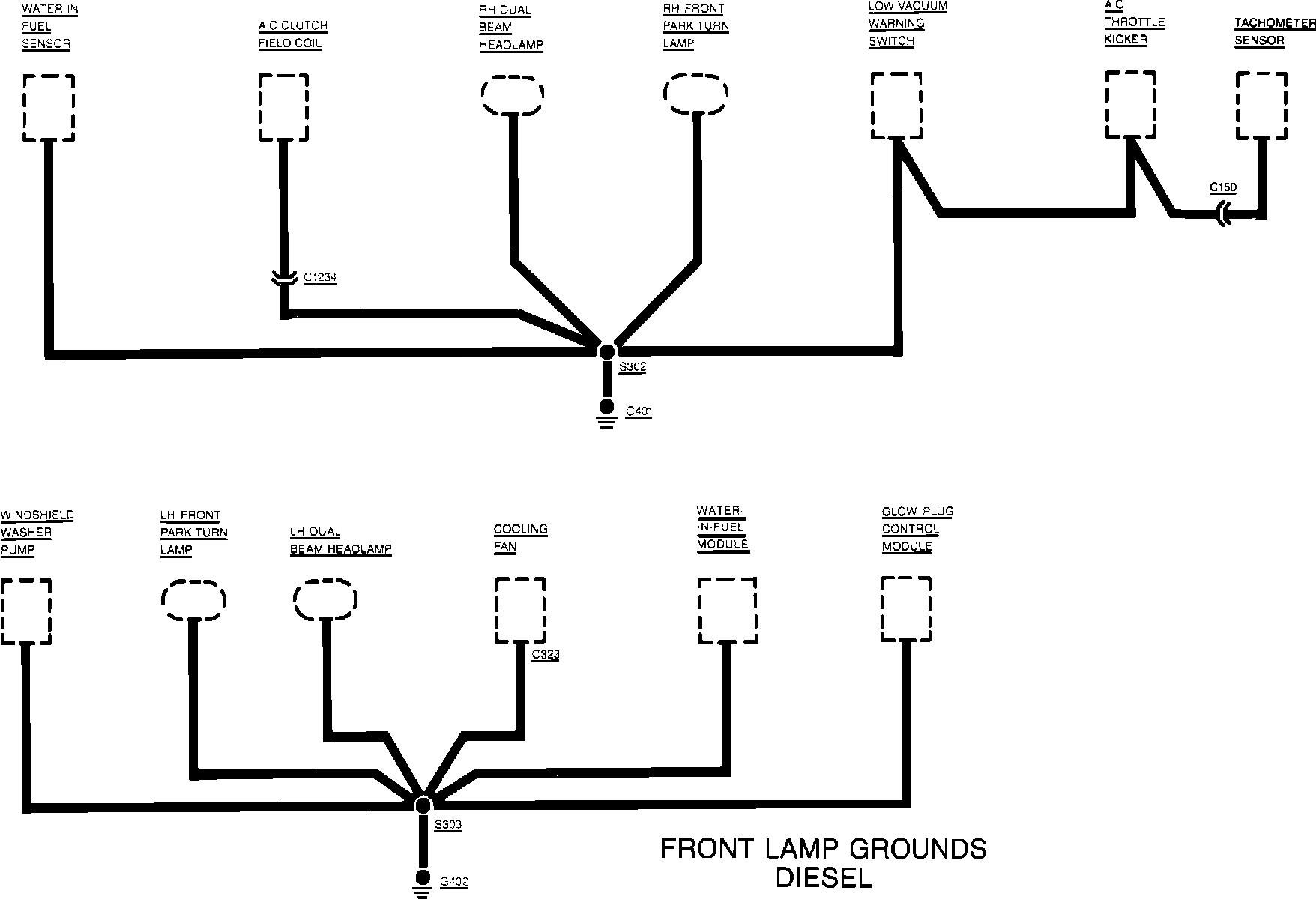

Fig. 20 Ground Distribution (G401 & G402). 1985 W/Diesel Engine:
