Mercury
>>
1985
>>
Topaz L4-140 2.3L HSC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
Vacuum and Vapor Hose Diagrams

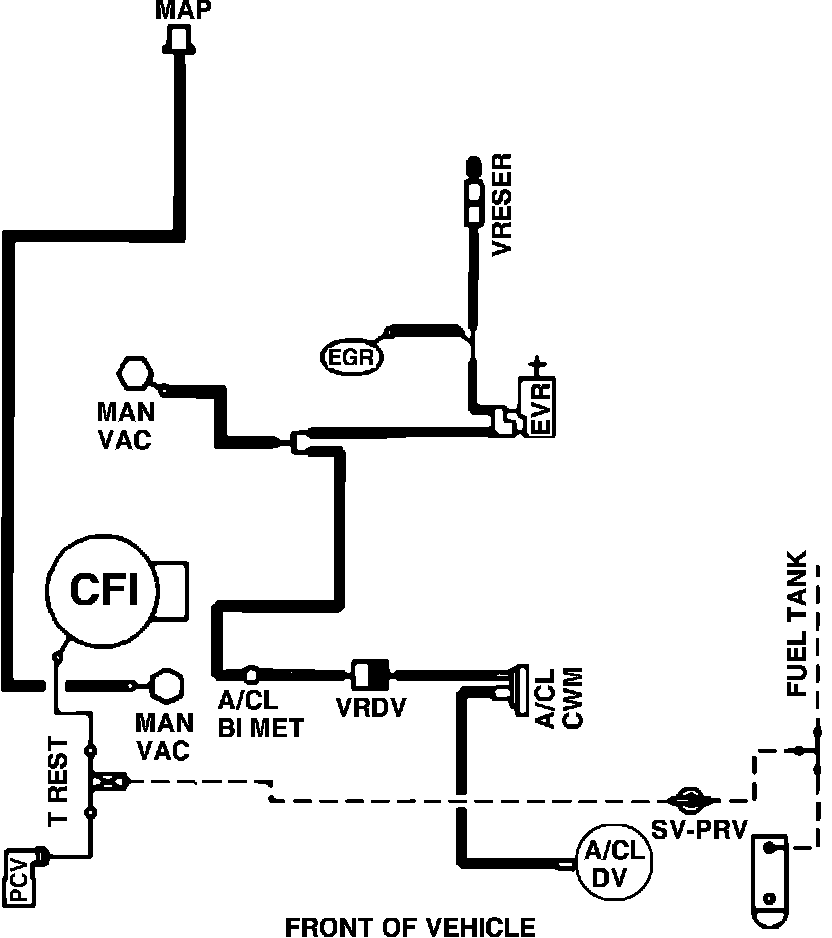

Fig. 14 Vacuum hose routing. 1985 4-140 HSC w/CFI HSC & man. trans. calib. codes 5-25F-R0, 5-25Q-R0, 5-26E-R0 & 5-26J-R01:
