Technical, Parts, Labor & Claim Information
Attachment ITECHNICAL, PARTS ORDERING, LABOR TIMES AND CLAIM PROCESSING INSTRUCTIONS REPAIR CODE "C" VEHICLES
EMISSIONS RECALL 89E78
VEHICLES INVOLVED: Certain 1985 and 1986-Model 49-States Tempo/Topaz vehicles equipped with 2.3L engines and manual transmissions.
TECHNICAL INSTRUCTIONS
PARTS ORDERING:
Order all requirements directly from FIES Wixom, using the mailing address on page No. 1 of this Bulletin. Do not order recall parts from FPSD International Distribution Operations. For more urgent handling, use cable address "RECALLS - FORDEX, WIXOM, MICHIGAN". For locations having telex facilities, our telex Ford private line code is FED and commercial telex code is 669777 answerback Ford FIES WIX. Our telephone number in Wixom, Michigan, is area code (313) 344-5641 and Rapifax number is (313) 344-5647. Please give the part number, description, quantity and recall number when ordering.
Part Number Description CLass
E53Z-9F593-C Injector Assembly, BG
(2.3L CFI Base) CFI Fuel
E53Z-9F593-D Injector Assembly, BG
(2.3L CFI HO) CFI Fuel
E9PZ-12A650-CA Processor BG
(2.3L CFI Base)
E73Z-12A650-EC Processor BG
(2.3L CFI HO)

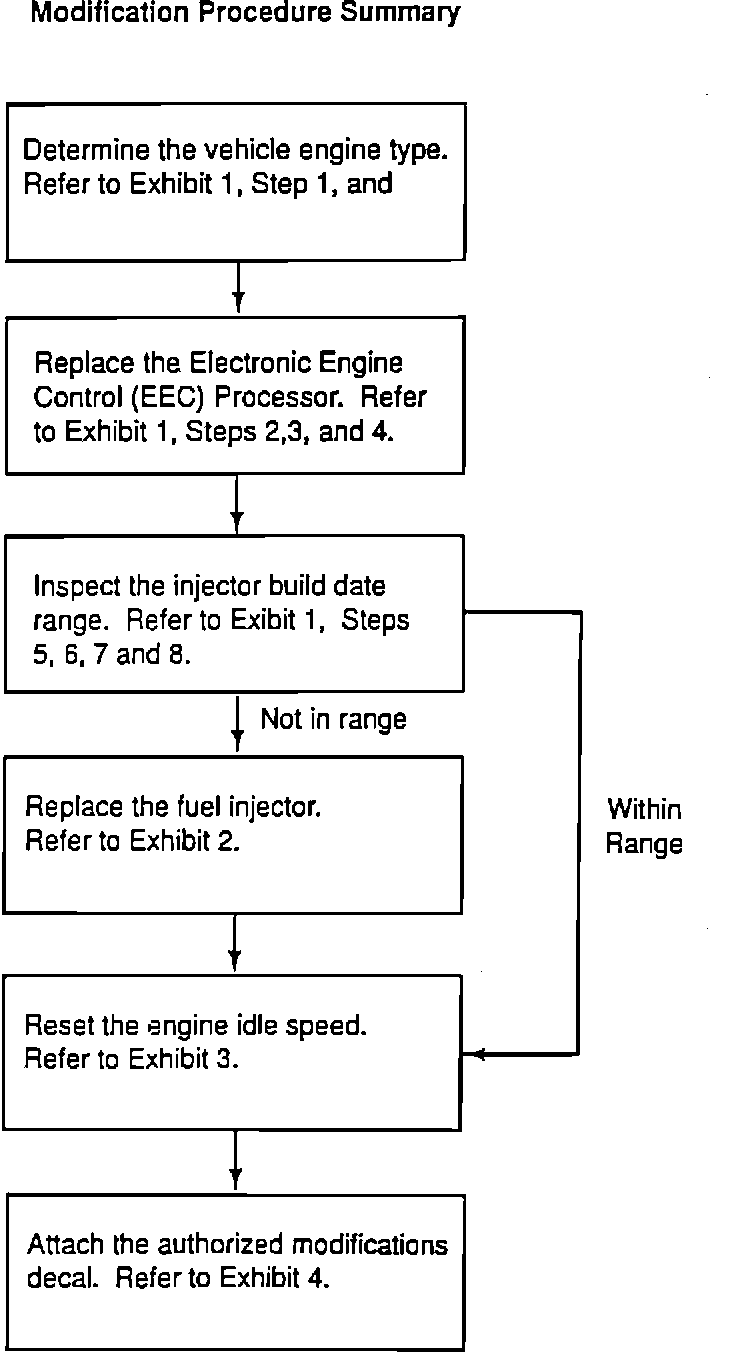

LABOR TIMES: Inspect the fuel injector build date and, if necessary, replace the injector, adjust the idle speed to specification, replace the electronic engine control (EEC) processor, prepare and attach an Authorized Modifications (Form FPS-8262) Decal
When the Injector is NOT replaced 1.8 Hrs. Insert in Box "B" of Form 1864
(Include administrative allowance)
When the Injector IS replaced 2.2 Hrs. Insert in Box "C" of Form 1864
(Include administrative allowance)
Administrative Allowance (Additive to Above)
Administrative Allowance 0.1 Hr.
The 0.1 hour administrative allowance must be added before inserting the total labor time in either Box "B" or "C" of the Form 1864.
REMOVED PARTS RETURN:
Mutilate and scrap all removed injectors and EEC processors.
