Topaz L4-140 2.3L HSC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Connector Views
Connector Views

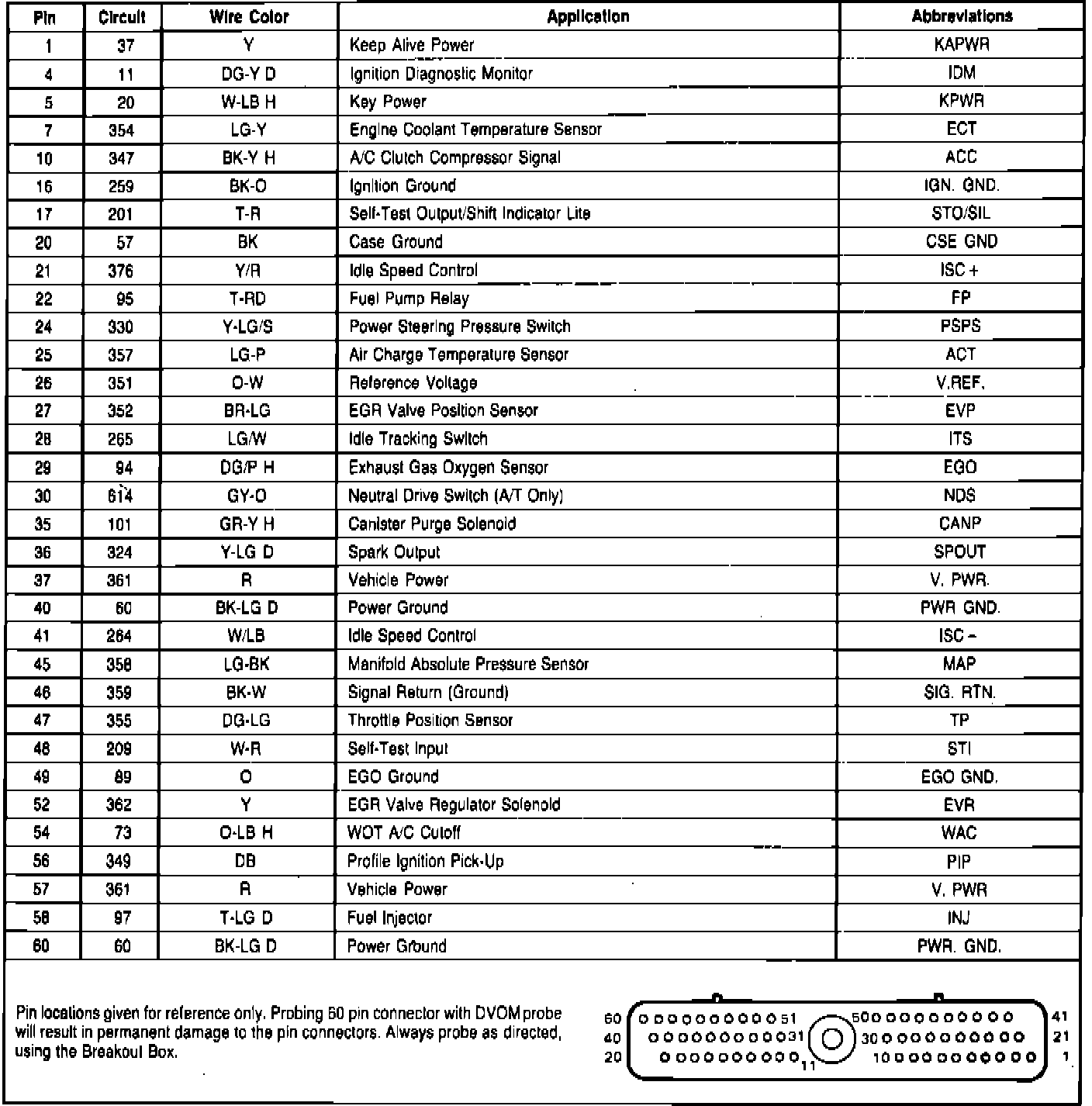

Fig. 159 EEC-IV module connector pin usage. 1985 4-140 high swirl combustion (HSC) engine W/CFI:
