Starting System
>>
System Diagram
System Diagram

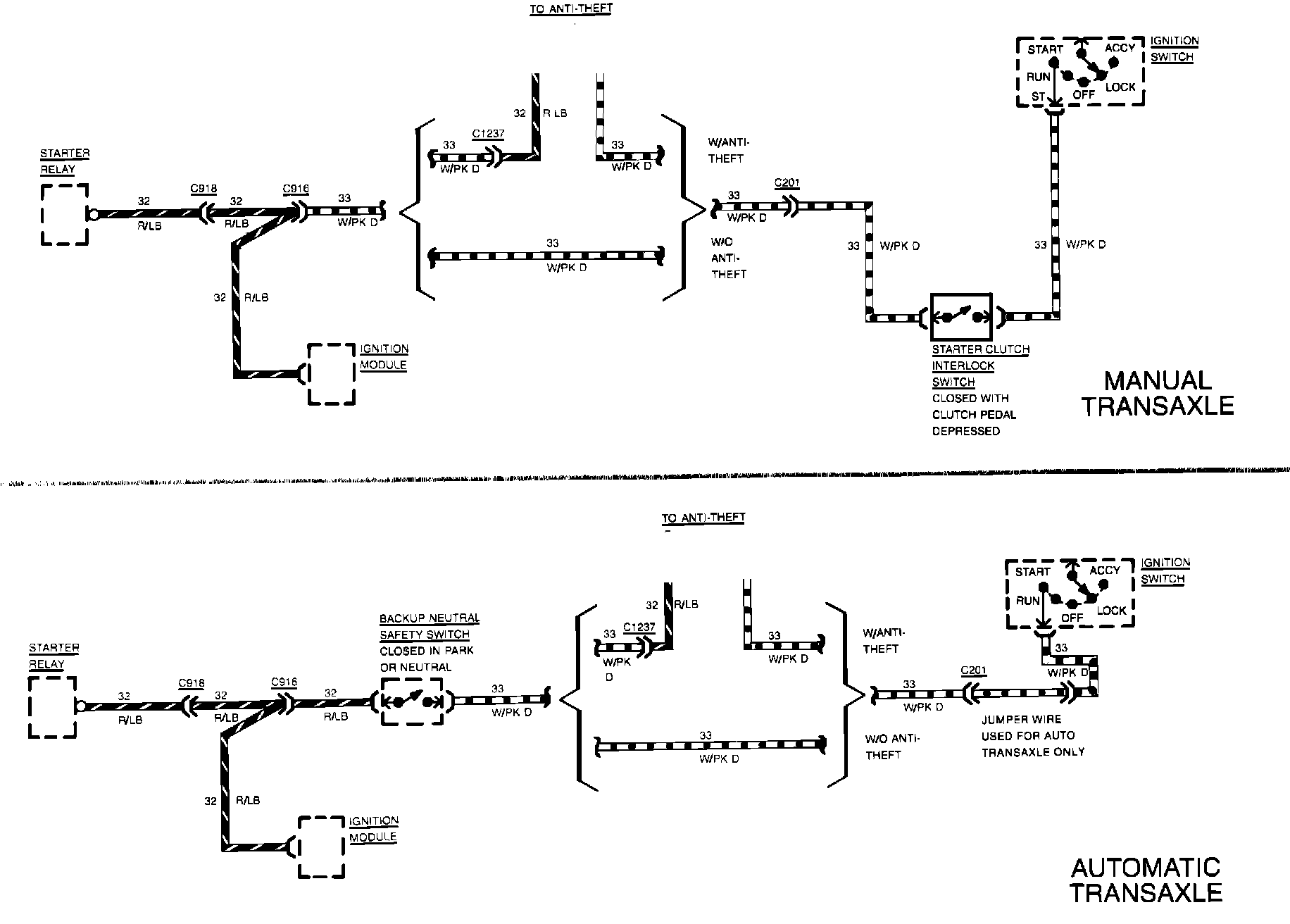

(U.S.A. - 50 States Part 1 of 2). 1985:

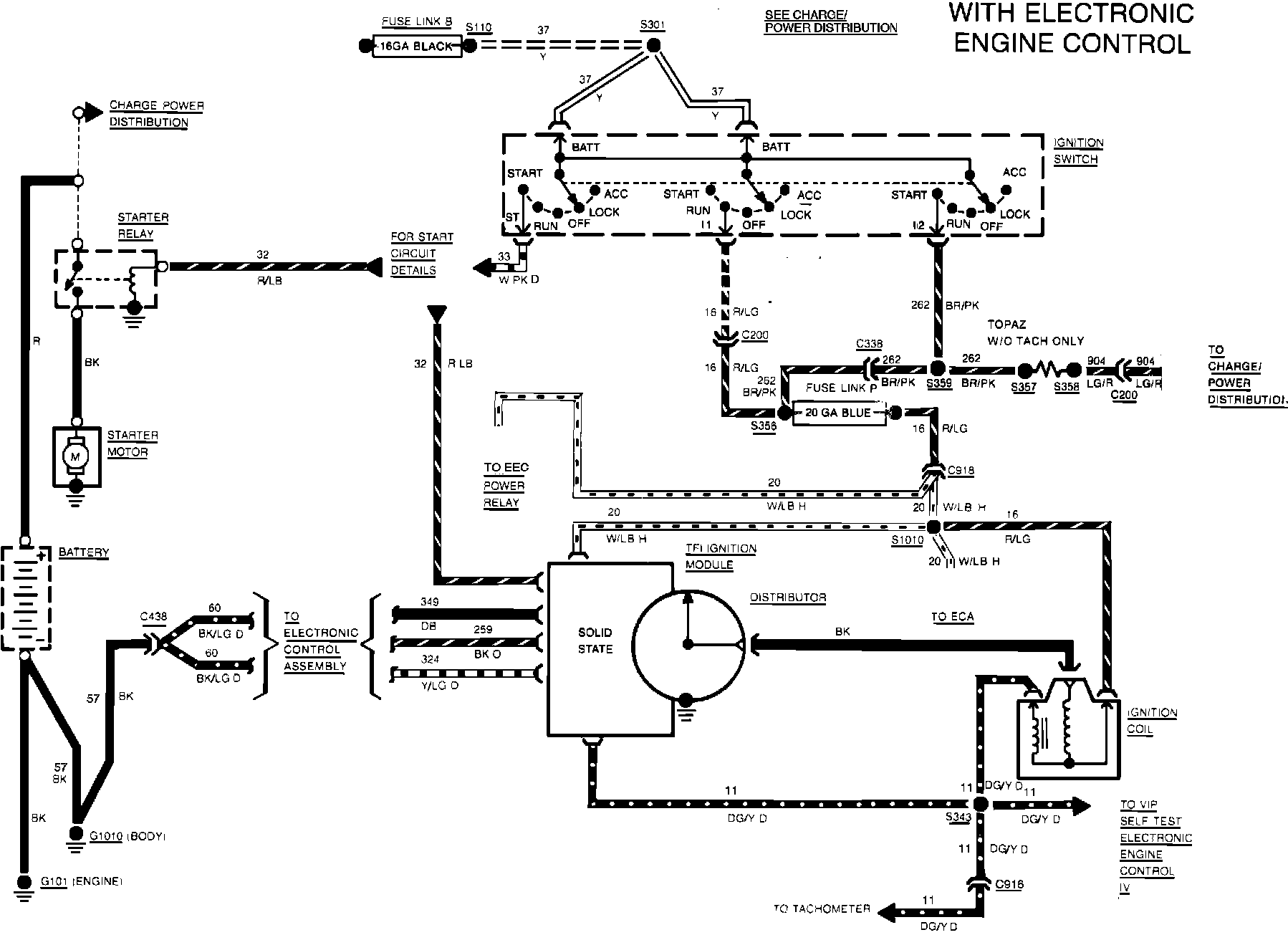

(U.S.A. - 50 States Part 2 of 2). 1985:
