Less Premium Sound or Graphic Equalizer

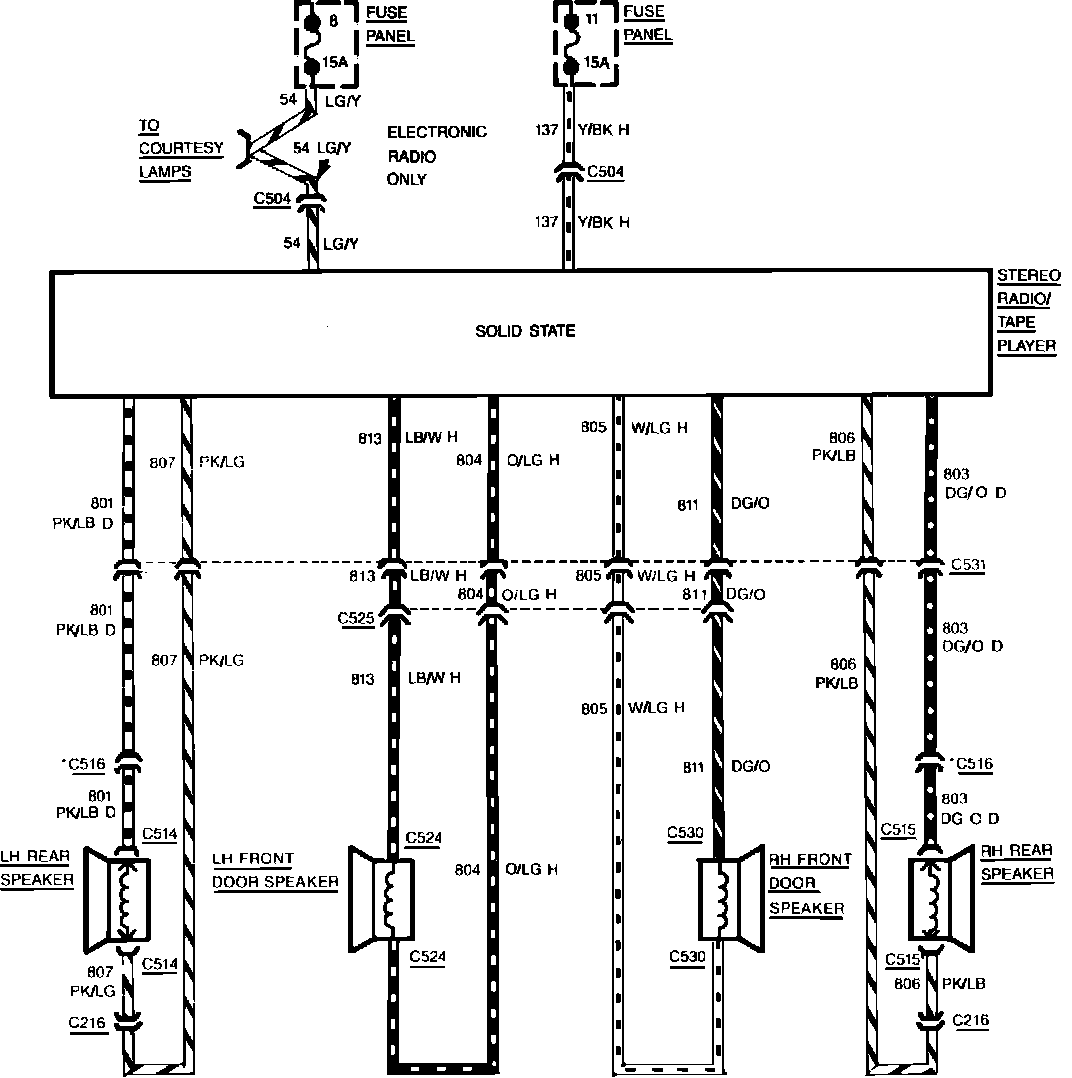

Fig. 40 Radio Wiring Circuit (Less Premium Sound or Graphic Equalizer). 1985:
