Block Diagrams

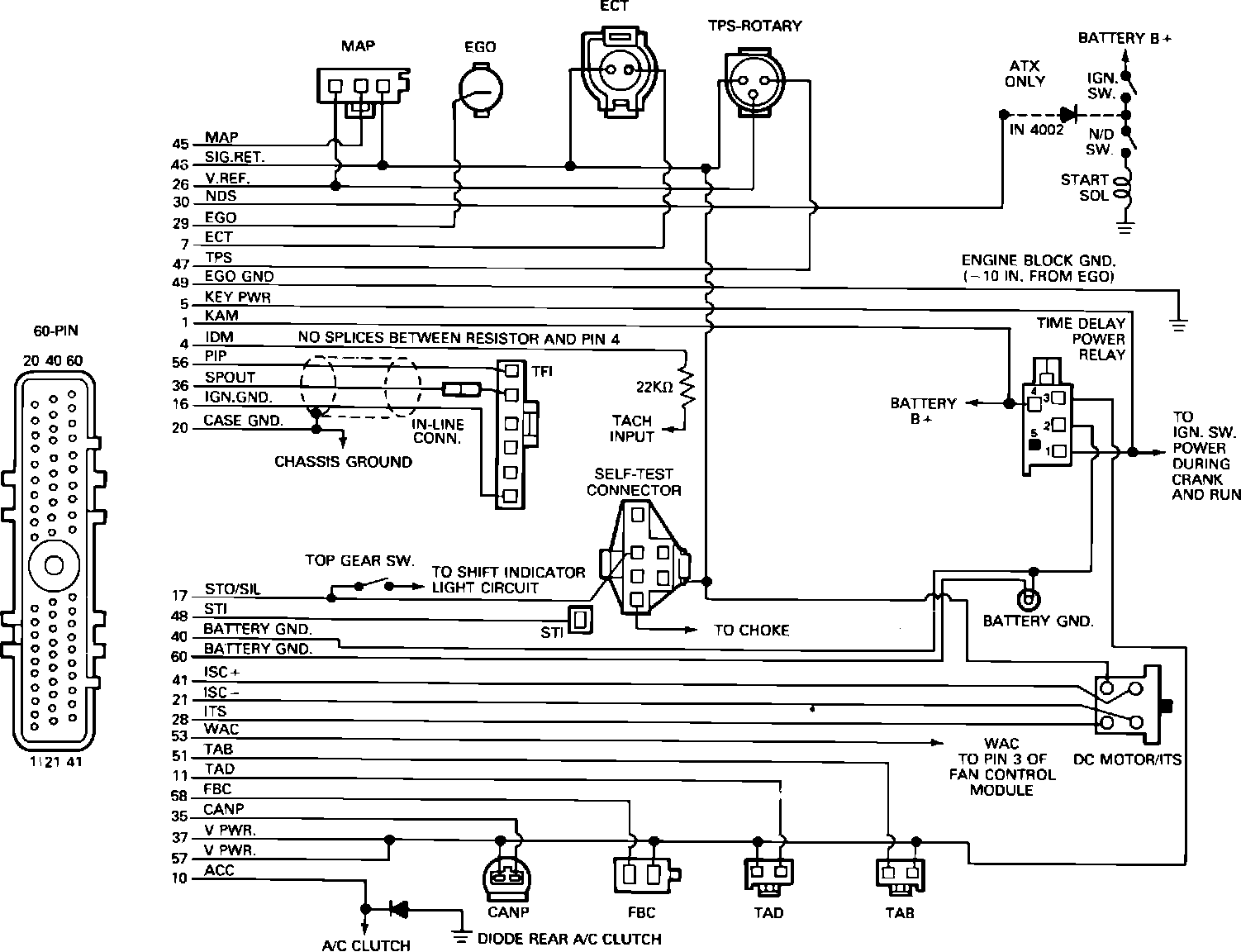

Fig. 158 EEC-IV wiring diagram. 1985 4-140 high swirl combustion (HSC) engine W/CFI:

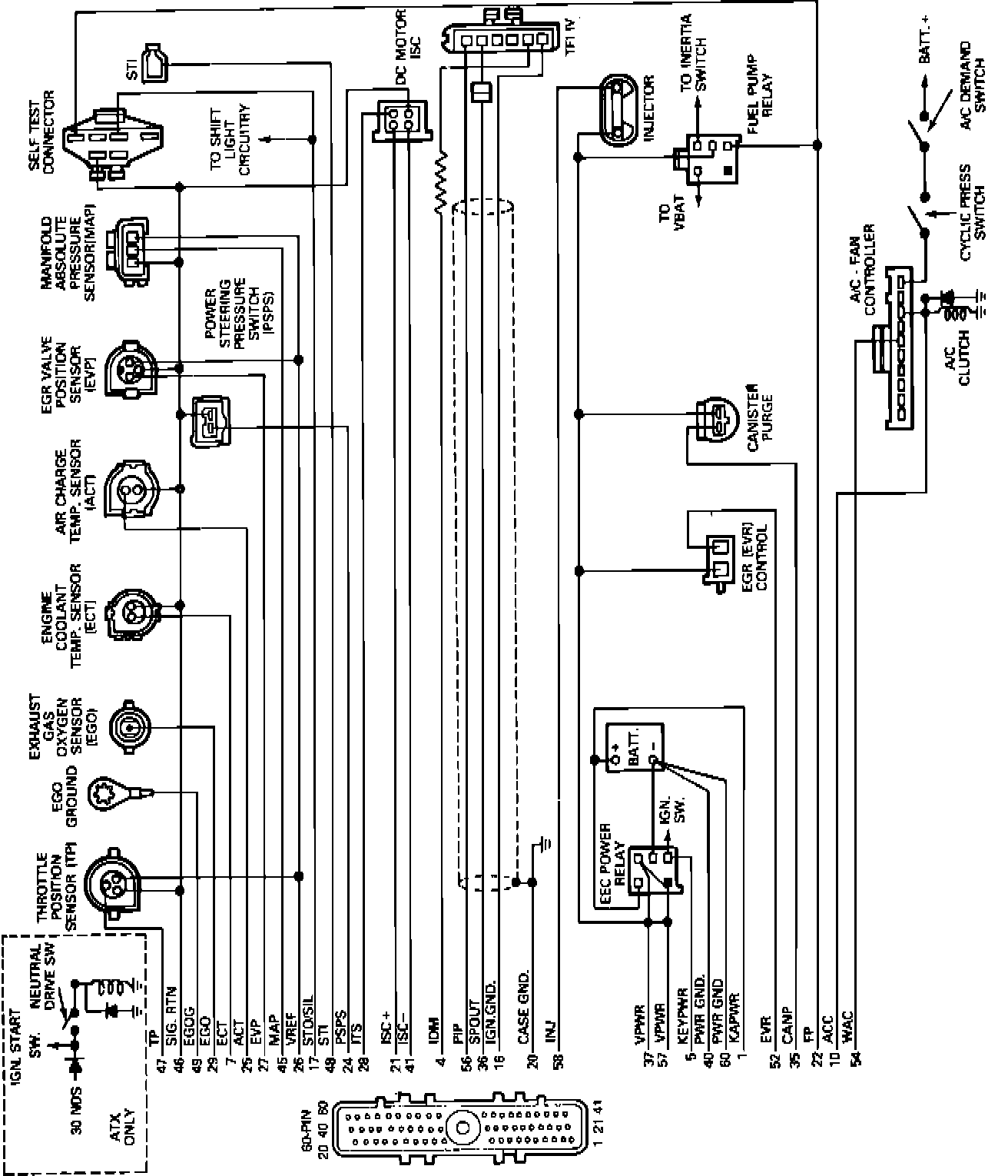

Fig. 160 EEC-IV wiring diagram. 1985 4-140 overhead cam engine W/feedback carburetor:
