Mercury
>>
1985
>>
Topaz L4-140 2.3L HSC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Turn Signals
>>
System Diagram
>>
Less CFI & Lamp Out Warning System
Less CFI & Lamp Out Warning System

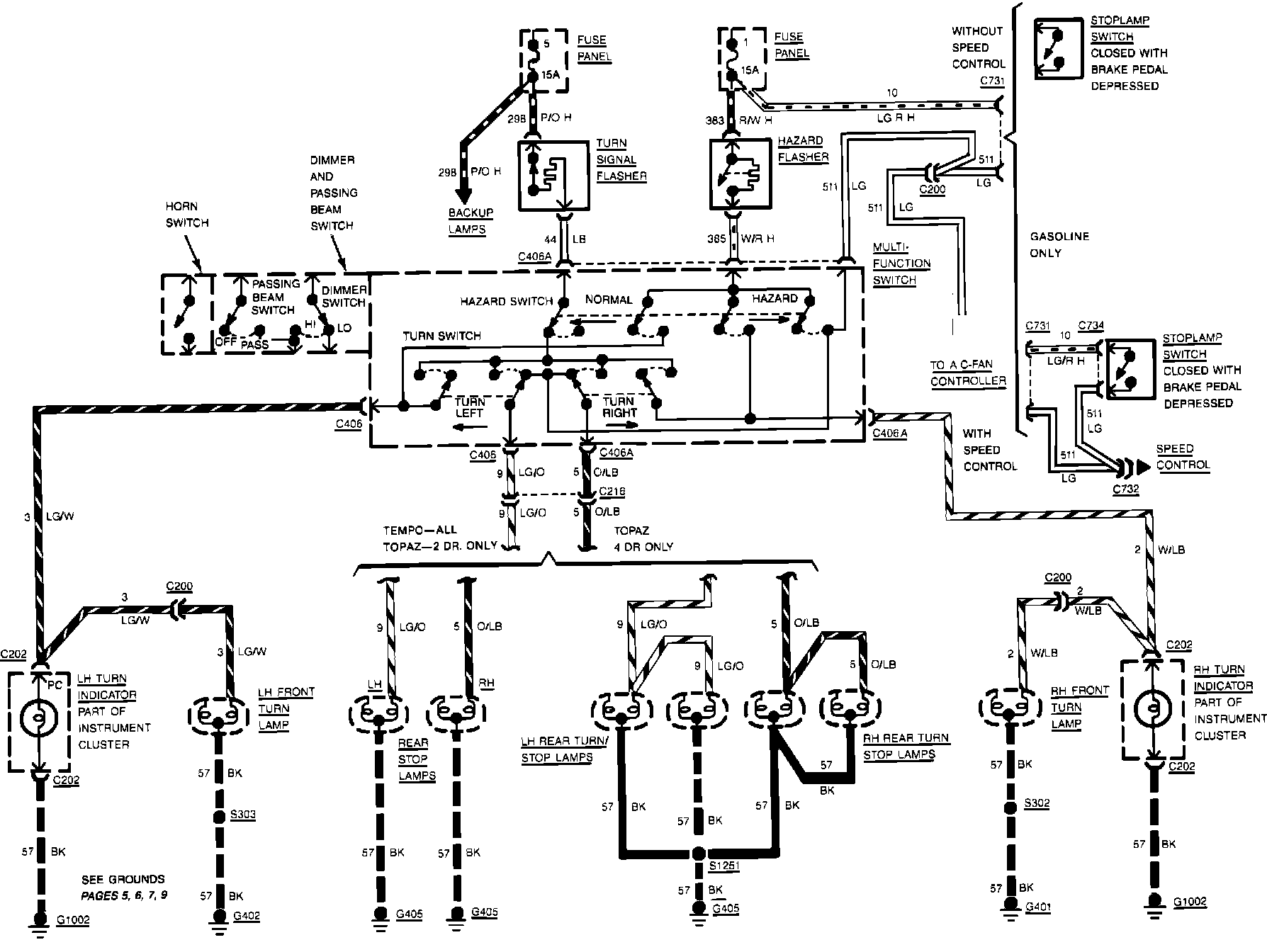

Fig. 25 Hazard, Stop & Turn Lamps Wiring Circuit (Less Lamp Out Warning & CFI). 1985:
