Illuminated Entry
>>
With Power Locks and/or Power Windows
With Power Locks and/or Power Windows

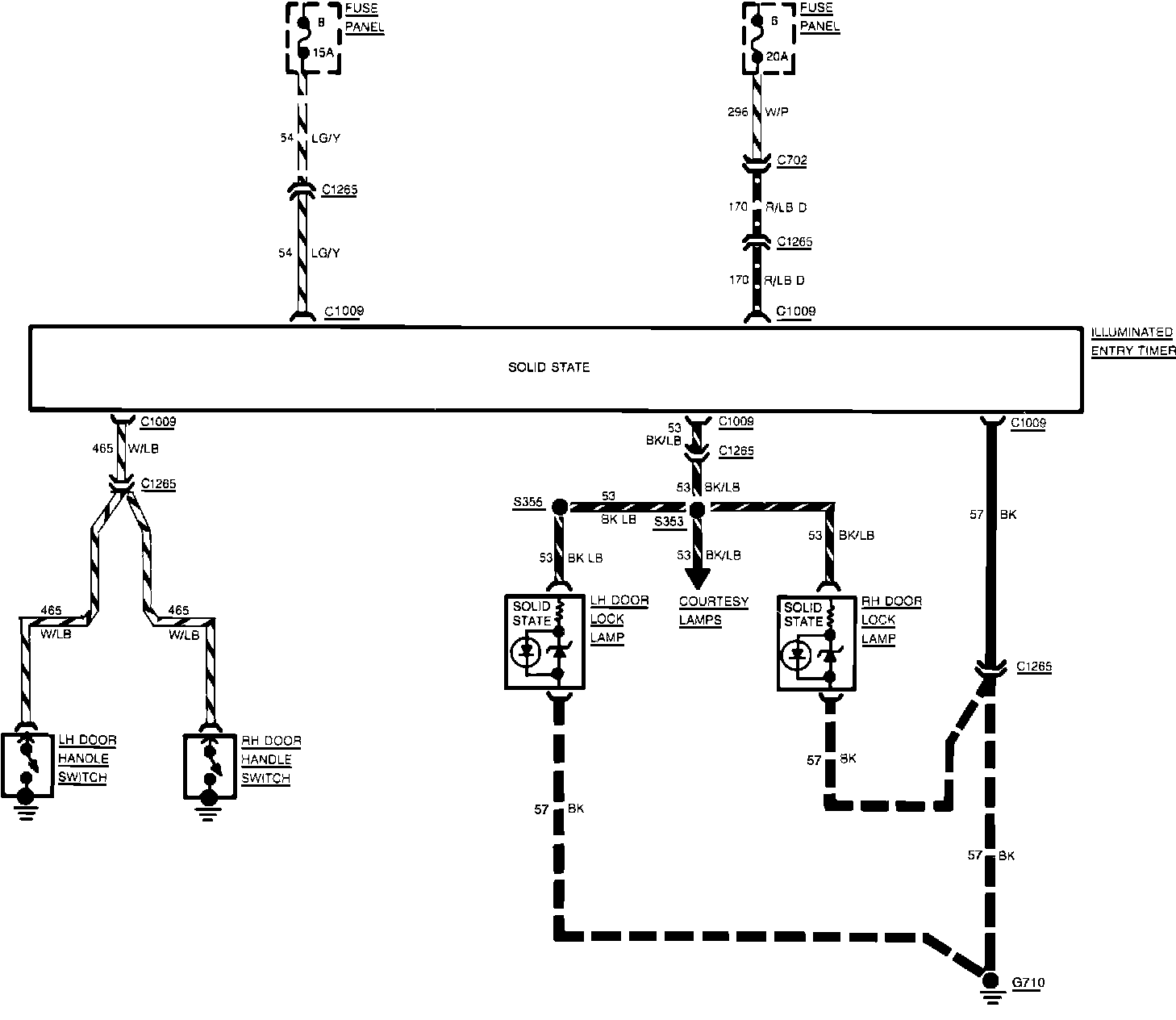

Fig. 31 Illuminated Entry Wiring Circuit (With Power Locks Or Windows). 1985:
