Audible Warning Device

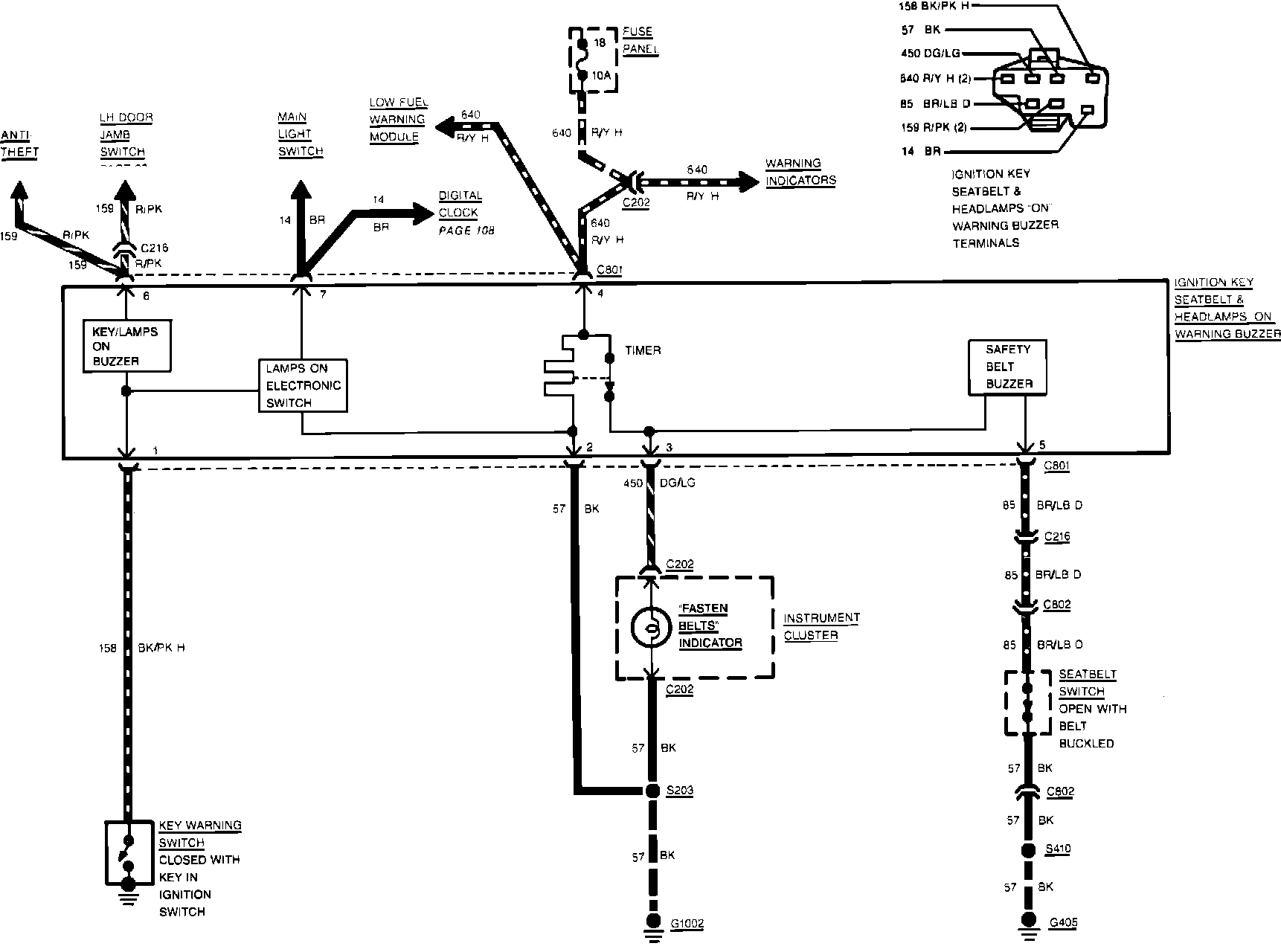

Fig. 28 Headlamps On, Ignition Key & Seatbelt Warning System Wiring Circuit. 1985:
