With Graphic Equalizer

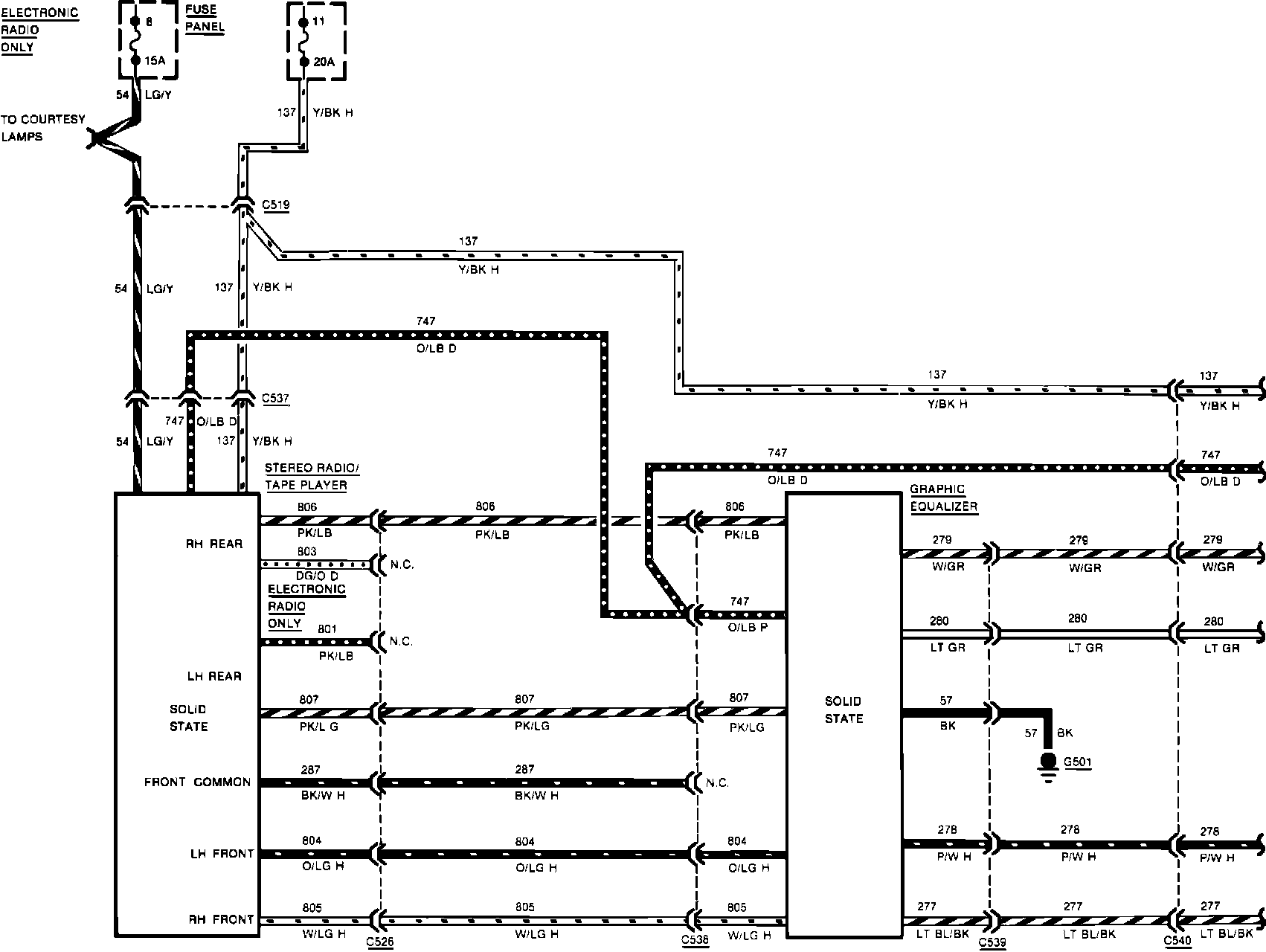

Fig. 43 Radio Wiring Circuit (With Graphic Equalizer) (Part 1 of 2). 1985:

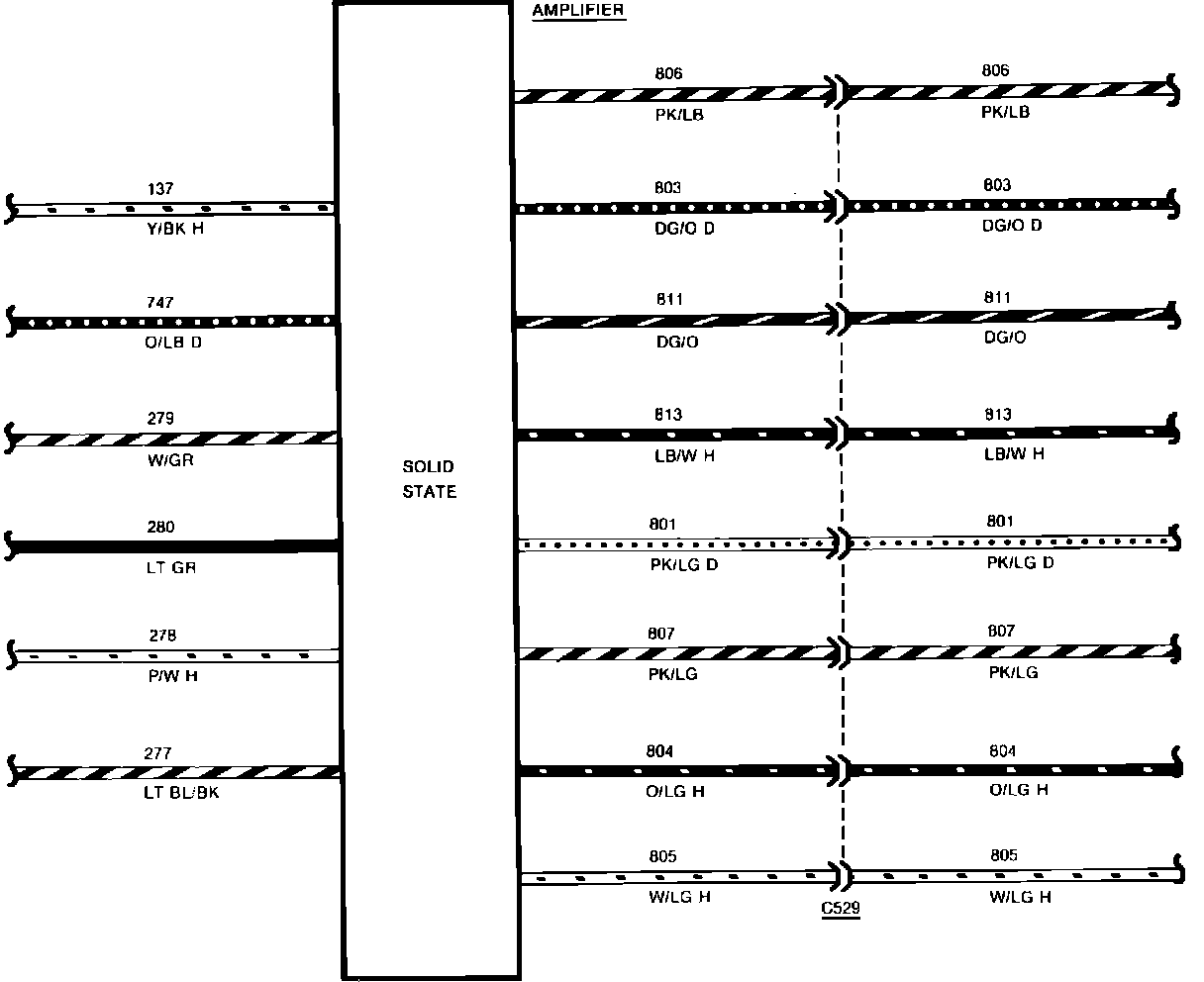

Fig. 43 Radio Wiring Circuit (With Graphic Equalizer) (Part 2 of 2). 1985:
