Marquis V8-302 5.0L VIN M FI HP
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Charging System
Charging System

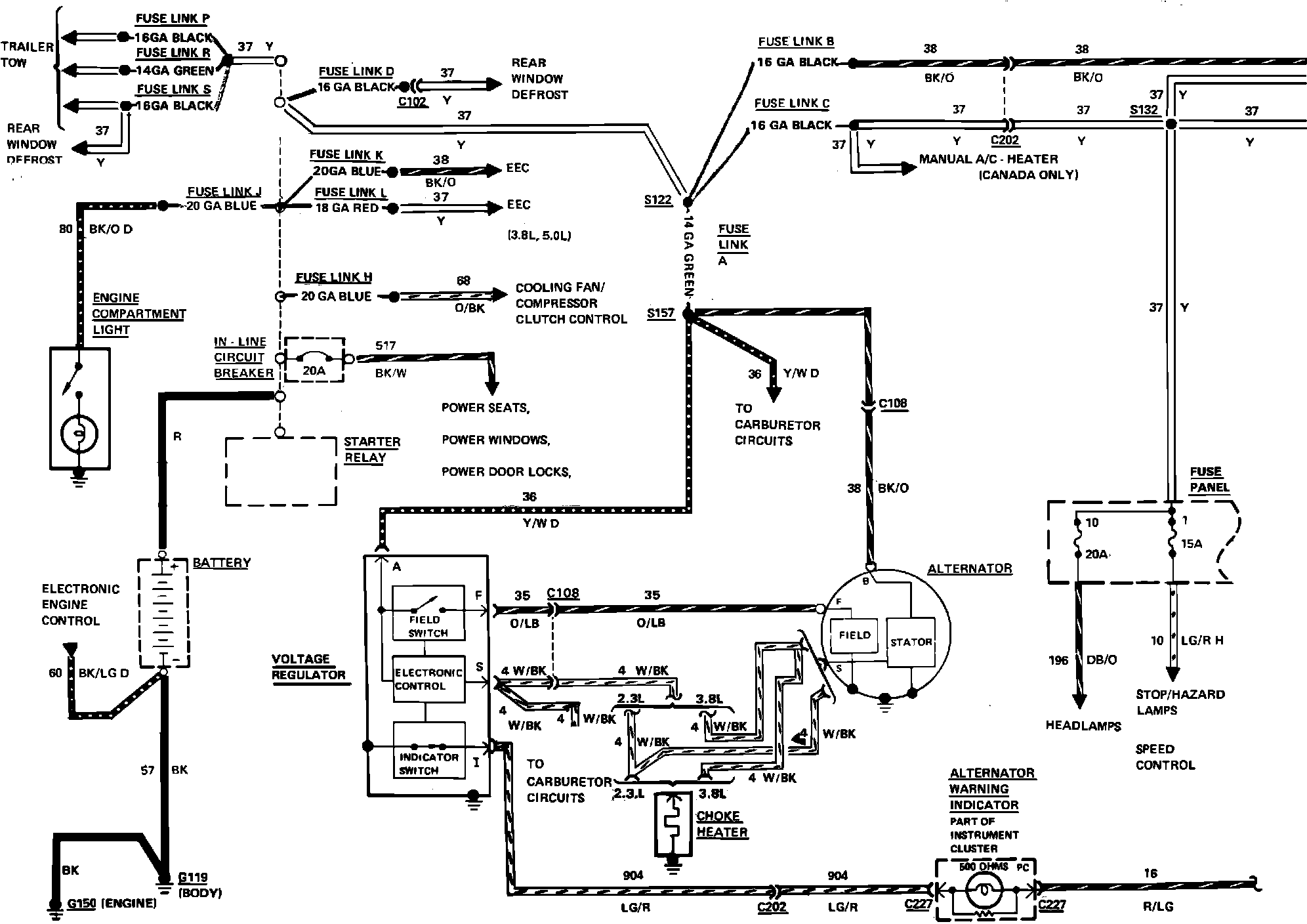

Fig. 11 Charging System & Power Distribution (Part 1 of 2). 1985:

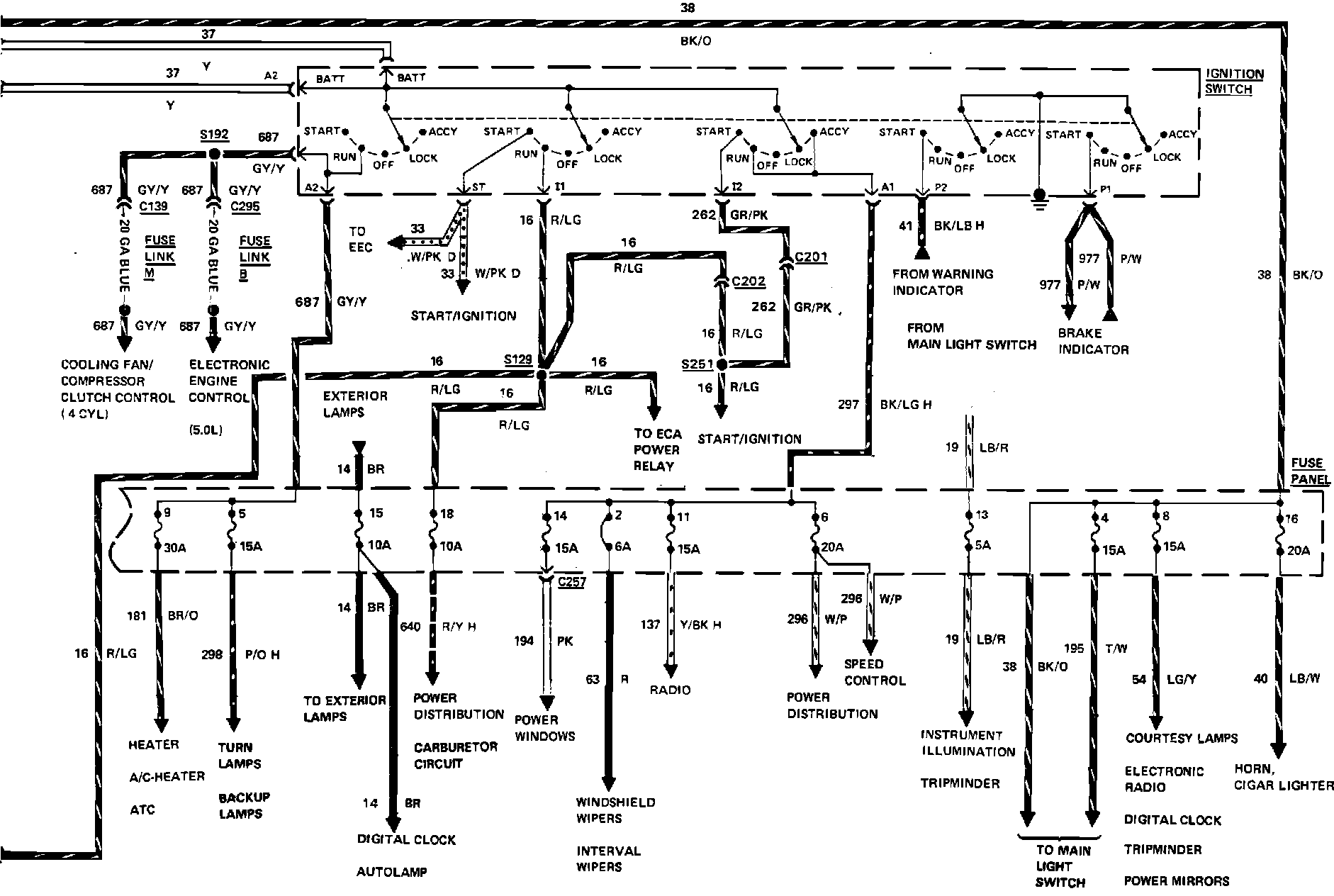

Fig. 11 Charging System & Power Distribution (Part 2 of 2). 1985:
