Mercury
>>
1985
>>
Marquis V8-302 5.0L VIN M FI HP
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Relays and Modules - Lighting and Horns
>>
Headlamp Control Module
>>
Diagrams
>>
Electrical Diagrams
>>
With Automatic Lamps & Delayed Exit System Wiring Circuit
With Automatic Lamps & Delayed Exit System Wiring Circuit

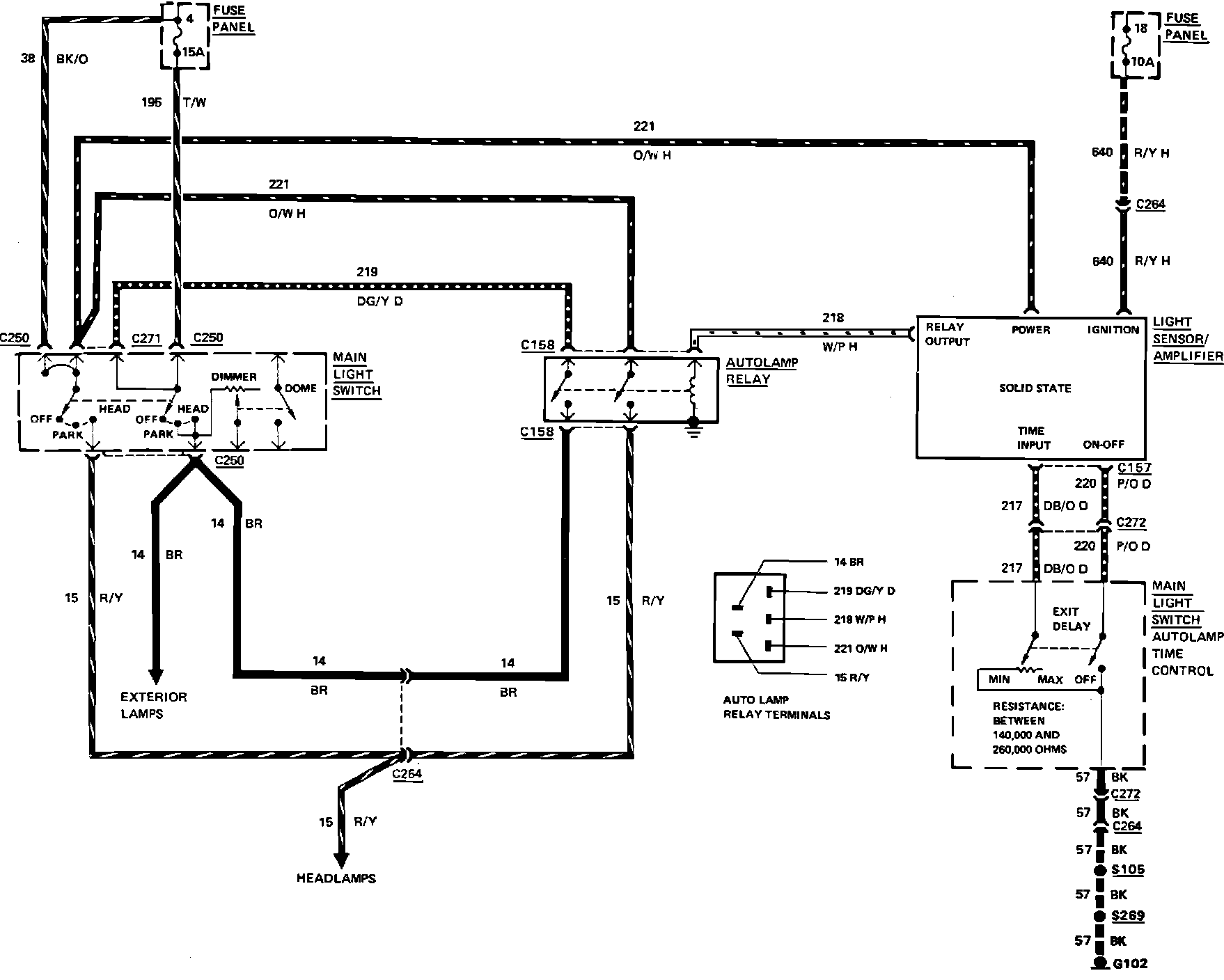

Fig. 7 Automatic Lamps & Delayed Exit Wiring Circuit. 1985:
