Mercury
>>
1985
>>
Marquis V8-302 5.0L VIN M FI HP
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Door/Trunk Ajar Indicator/Lamp
>>
Diagrams
>>
Electrical Diagrams
>>
Door Ajar Indicator, Fuel Gauge & Low Fuel Warning Wiring
Door Ajar Indicator, Fuel Gauge & Low Fuel Warning Wiring

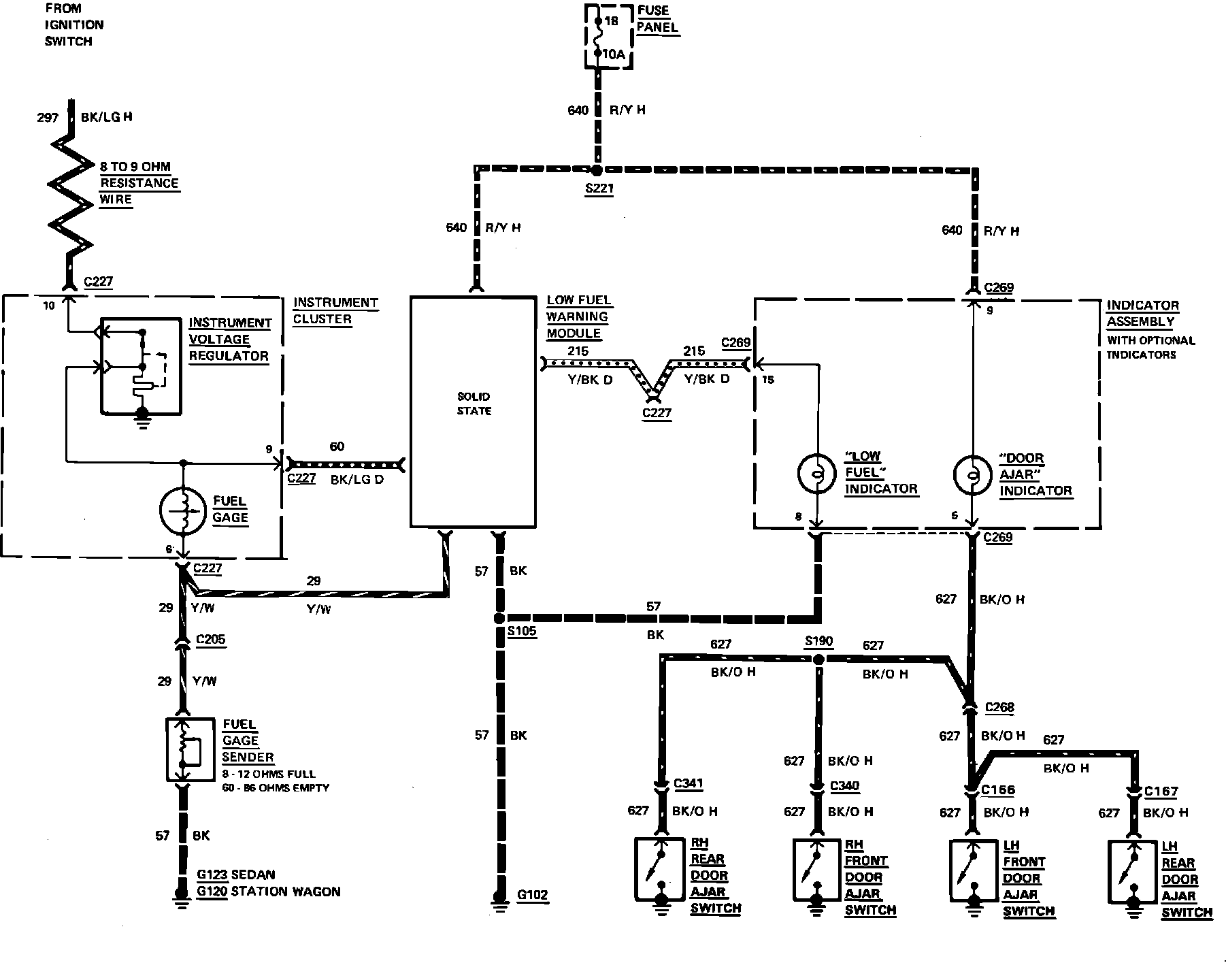

Fig. 17 Door Ajar. Fuel Gauge & Low Fuel Warning Wiring Circuit. 1985:
